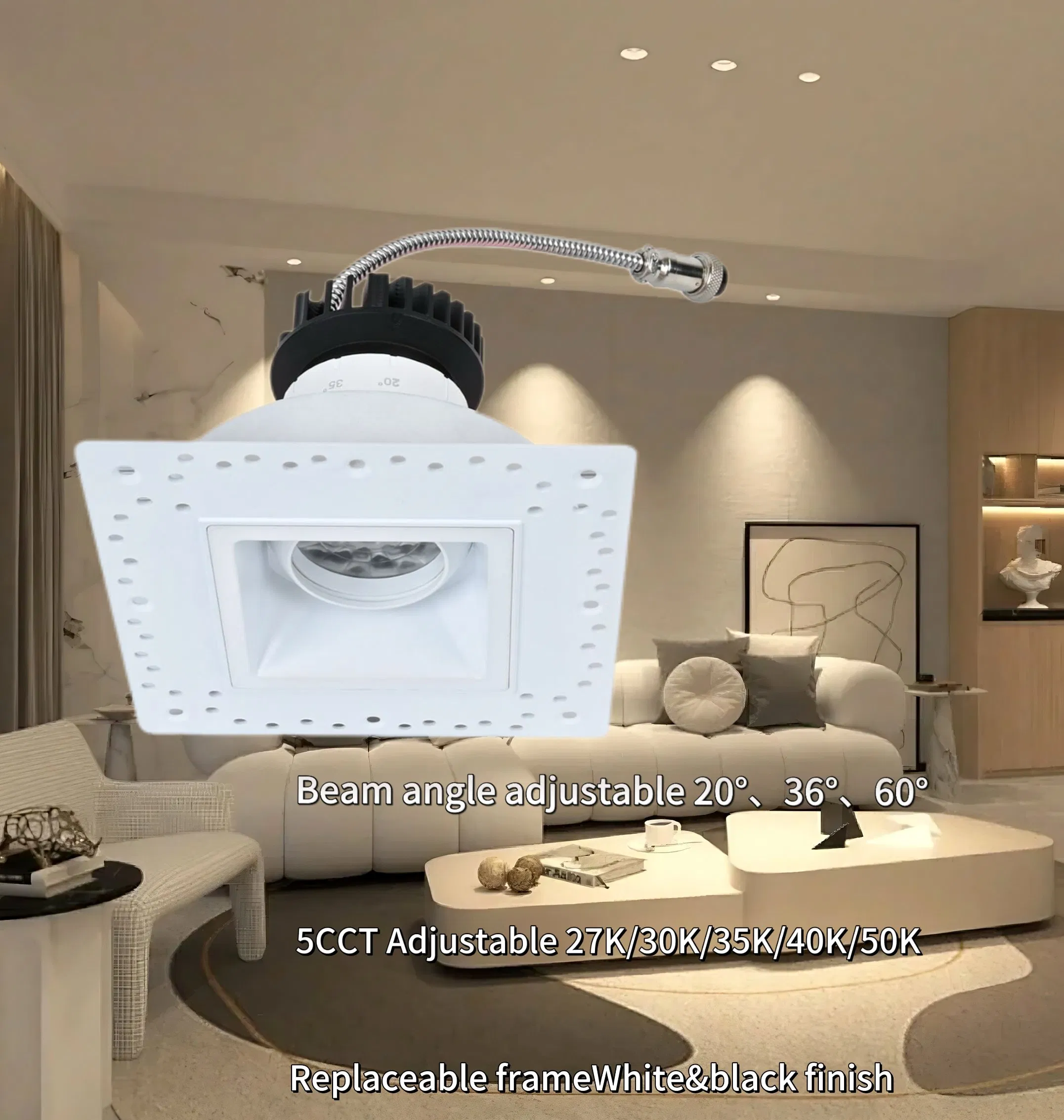

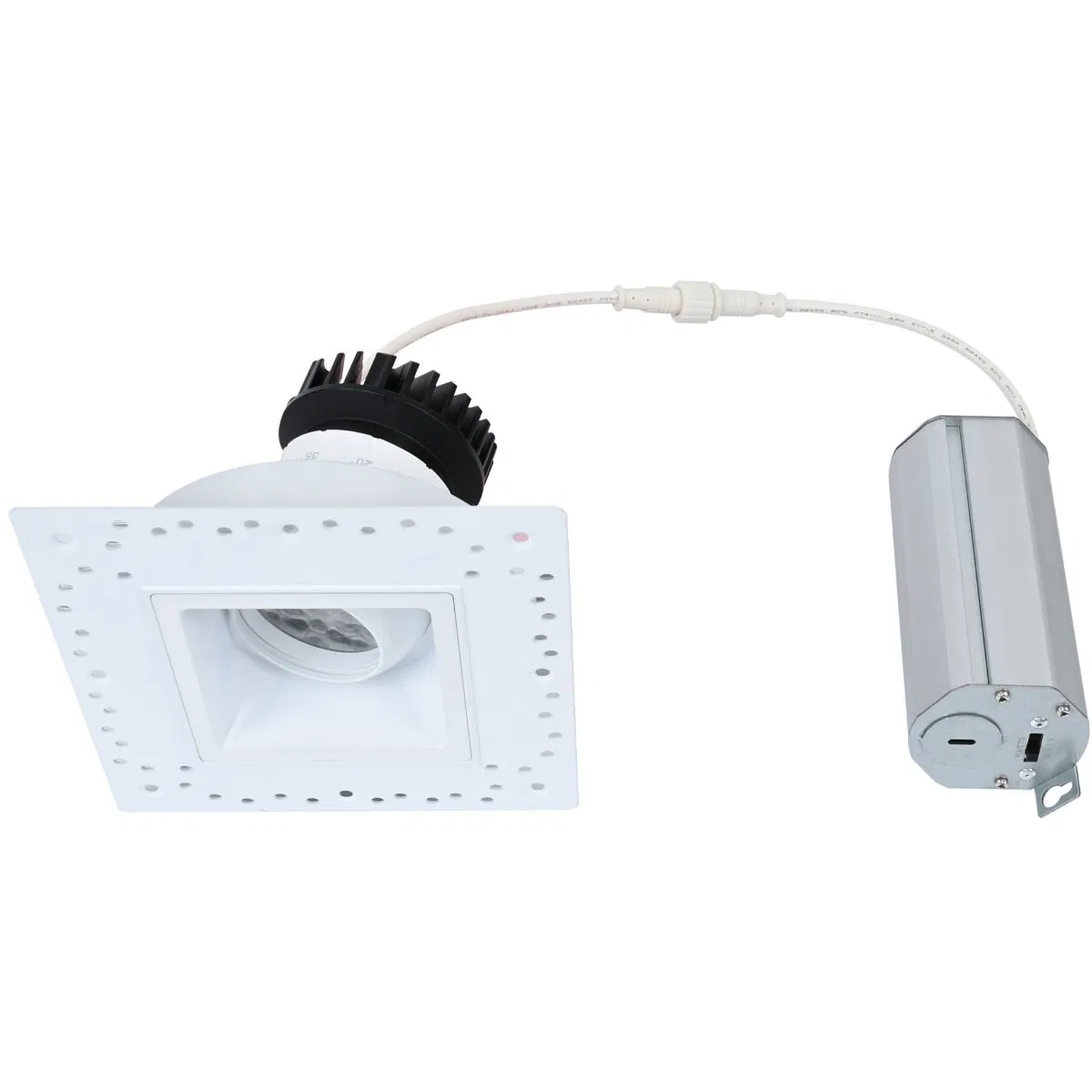

Dimmable LED COB Lighting Directional Down Lights Invisible Trimless Square Gimbal 3inch Recessed Ceiling Canless Lights Low Glare Beam Angle Adjustable CRI 90+

Still deciding? Get samples of $ !
Request Sample

Product Description

  • Overview
  • Product Description
  • Detailed Photos
  • Applications
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview - Basic Info.
Model NO.KG3S-IT-ABA
Power7-12W
Color Temperature5CCT
Lamp Body MaterialAluminum
Source NumberSingle Plug
InstallationRecessed
Switch TypeWall Switch
Warranty5 Years
ApplicationHome Furnishing
IP RatingIP54
CertificationCE, EMC, Energy Star, ETL, FCC, LVD, RoHS
Watt7-12W Adjustable
ColorWhite/Black/Bronze
CCT5CCT Adjustable
Cutout116mm
Transport PackageBox
Specification20pcs/Ctn
OriginChina
Production Capacity70000PCS/Month
Product Description

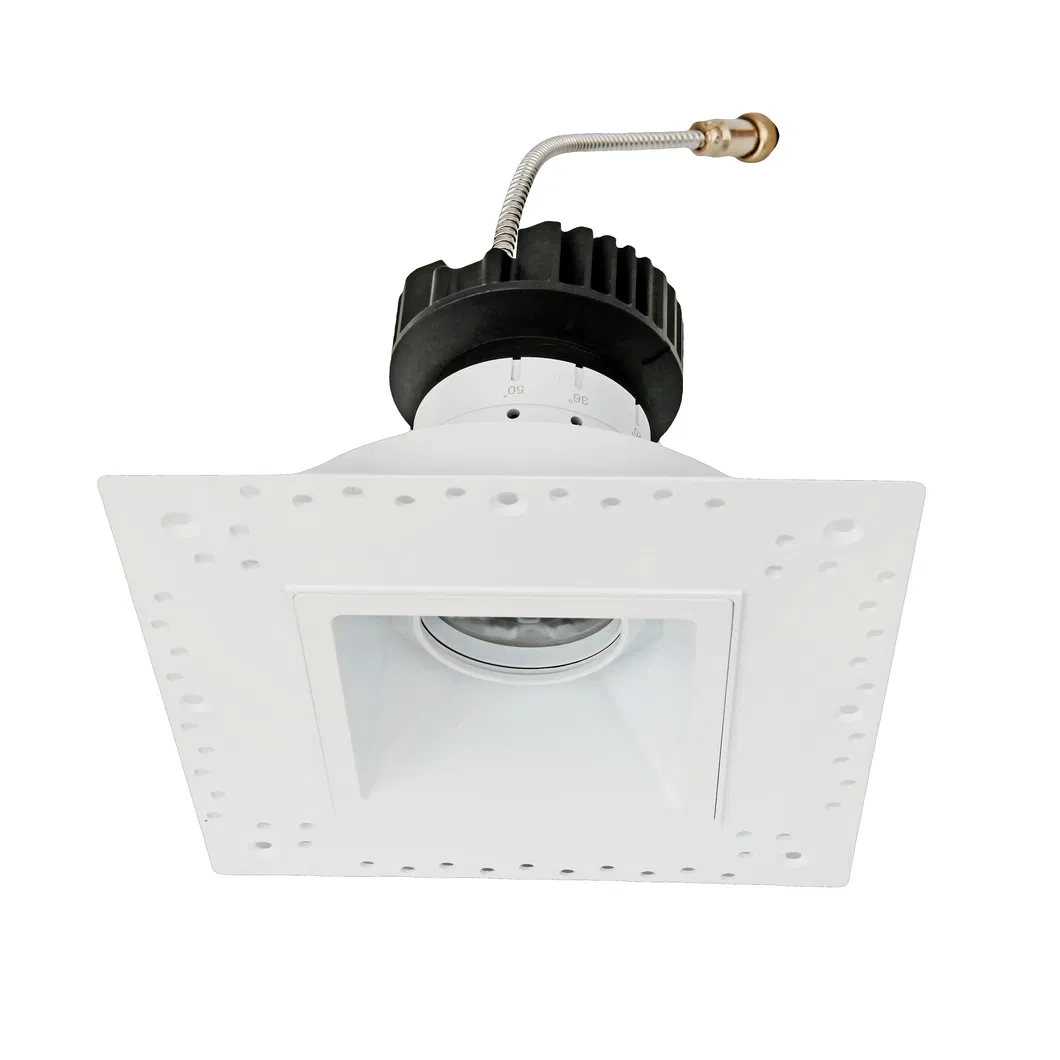

Dimmable LED COB Lighting Directional Down Lights
Description
Our patented adjustable beam angle downlight combines innovative mechanics with modular design to enable effortless beam angles adjustments between 20° - 60°. And featuring functions of 360° rotation and 20° tilt, it enables users to tailor light distributions for any space. Ideal for residential, commercial, and architectural applications.
Features
  • Durable Aluminum body for good heat dissipation
  • Beam angle adjustable effortlessly between 20°-60°
  • 360° rotation and 20°tilt for precise aiming

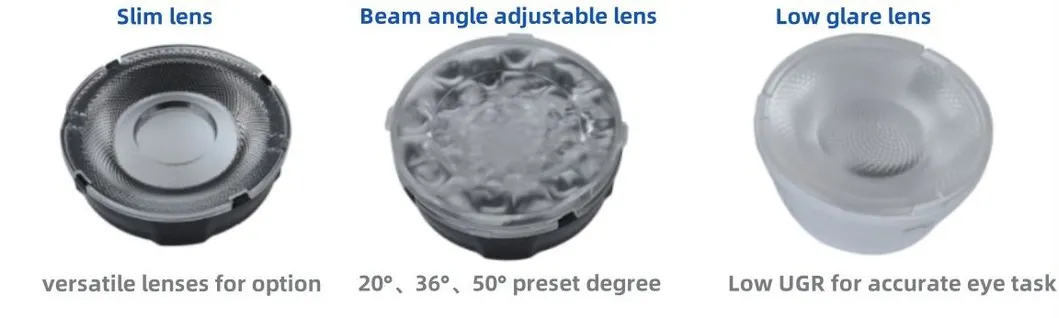

  • LEDiL Lens interchangeable to achieve low glare, wall washing or other lighting effects
  • Wattage selectable: 7W/9W/12W
  • 5CCT-adjustable and compatible with TRIAC dimmer
  • High-efficiency Bridgelux LED, CRI > 90+ for true color rendering
  • Optional Driver: 0-10V dimmable / Smart RGBCW
Specifications
Model KG3S-IT-ABA
Power 7W/9W/12W selectable
Input voltage 120V-277V AC 50/60 Hz
CCT 5CCT (2700K/3000K/3500K/4000K/5000K) adjustable
Beam Angle Adjustable beam 20°/36°/60°
CRI >90+
Power Factor >0.9
Air Tight Yes
Dimension L135*135*H100mm
Cut Hole 116mm
Finish White/Black/Bronze
Detailed Photos

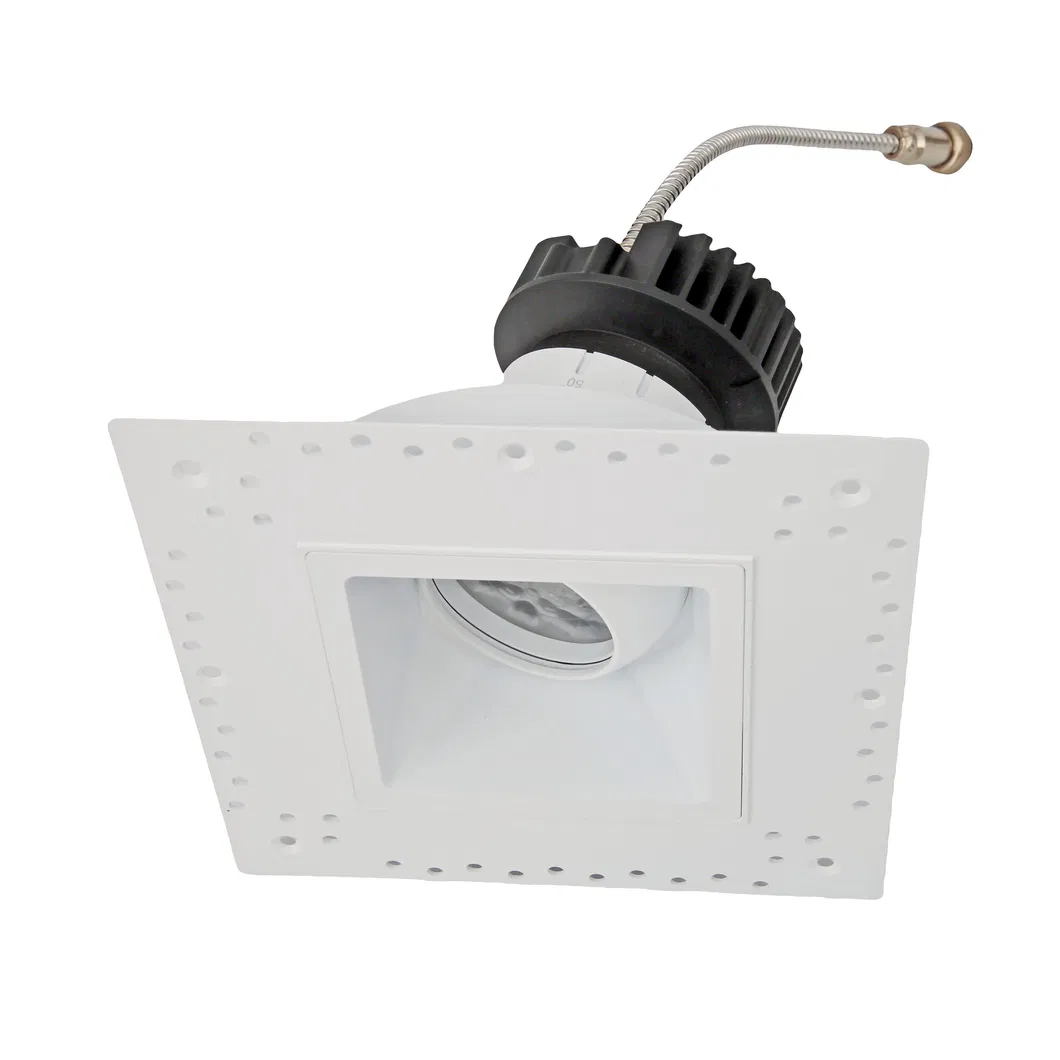

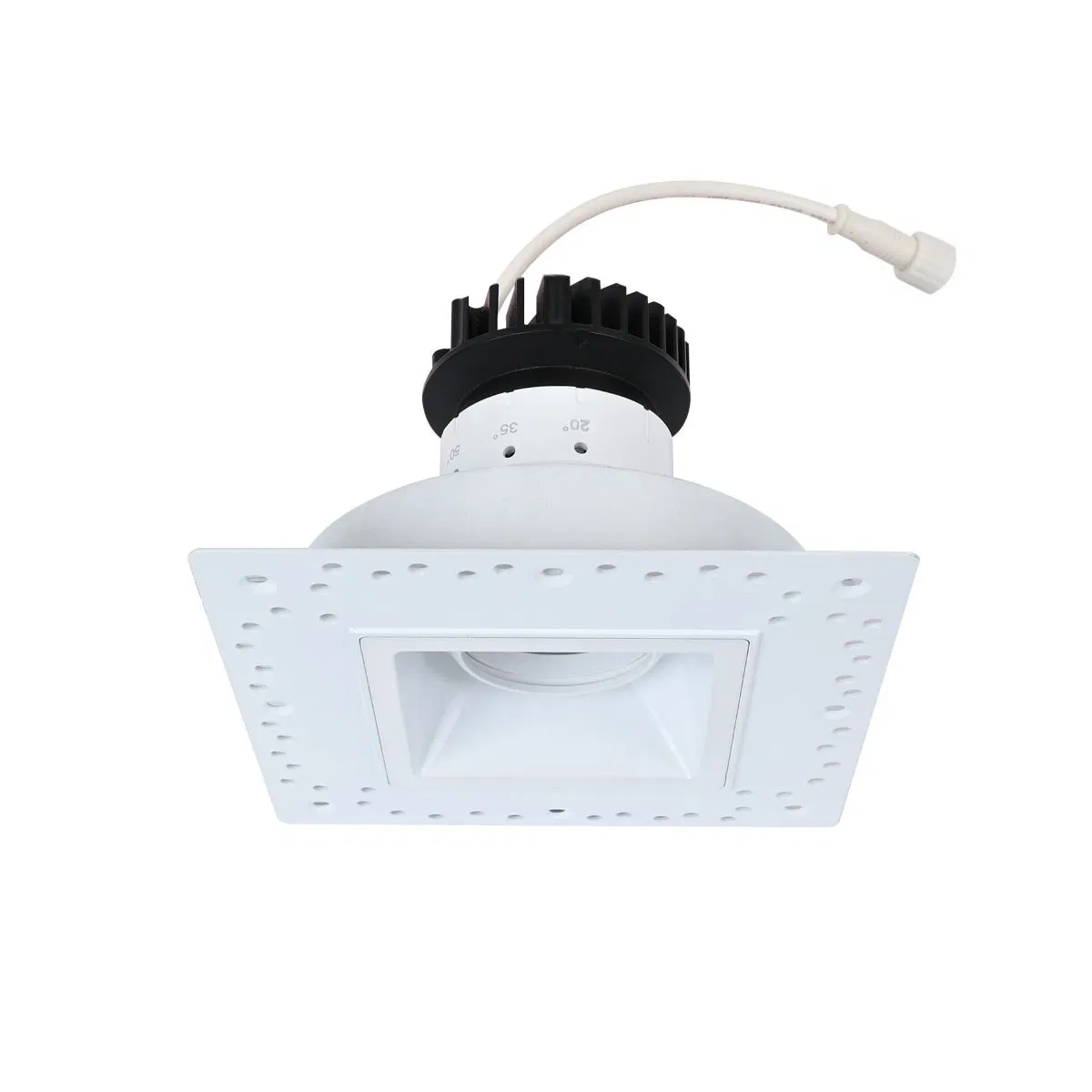

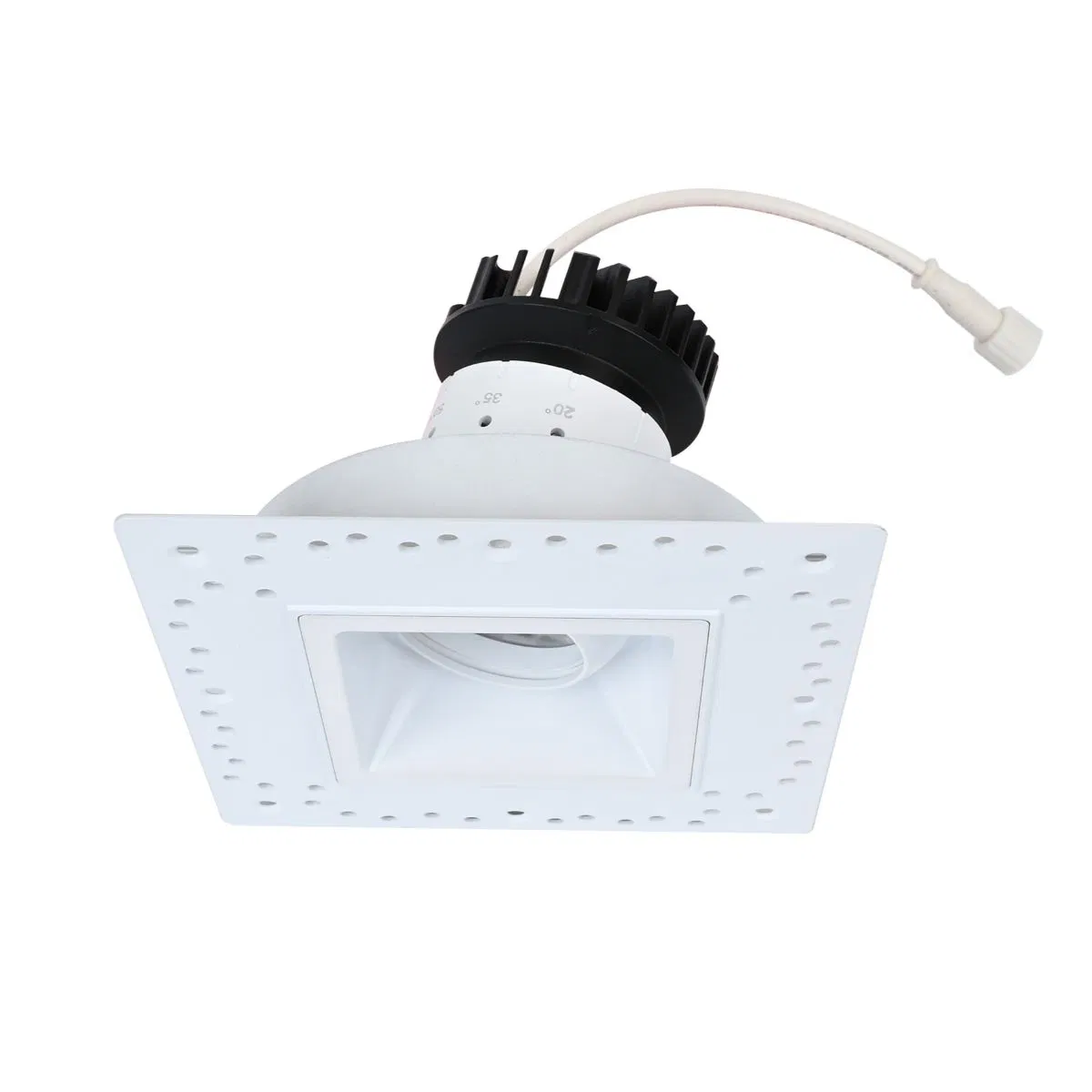

Trimless Square Gimbal Recessed Light

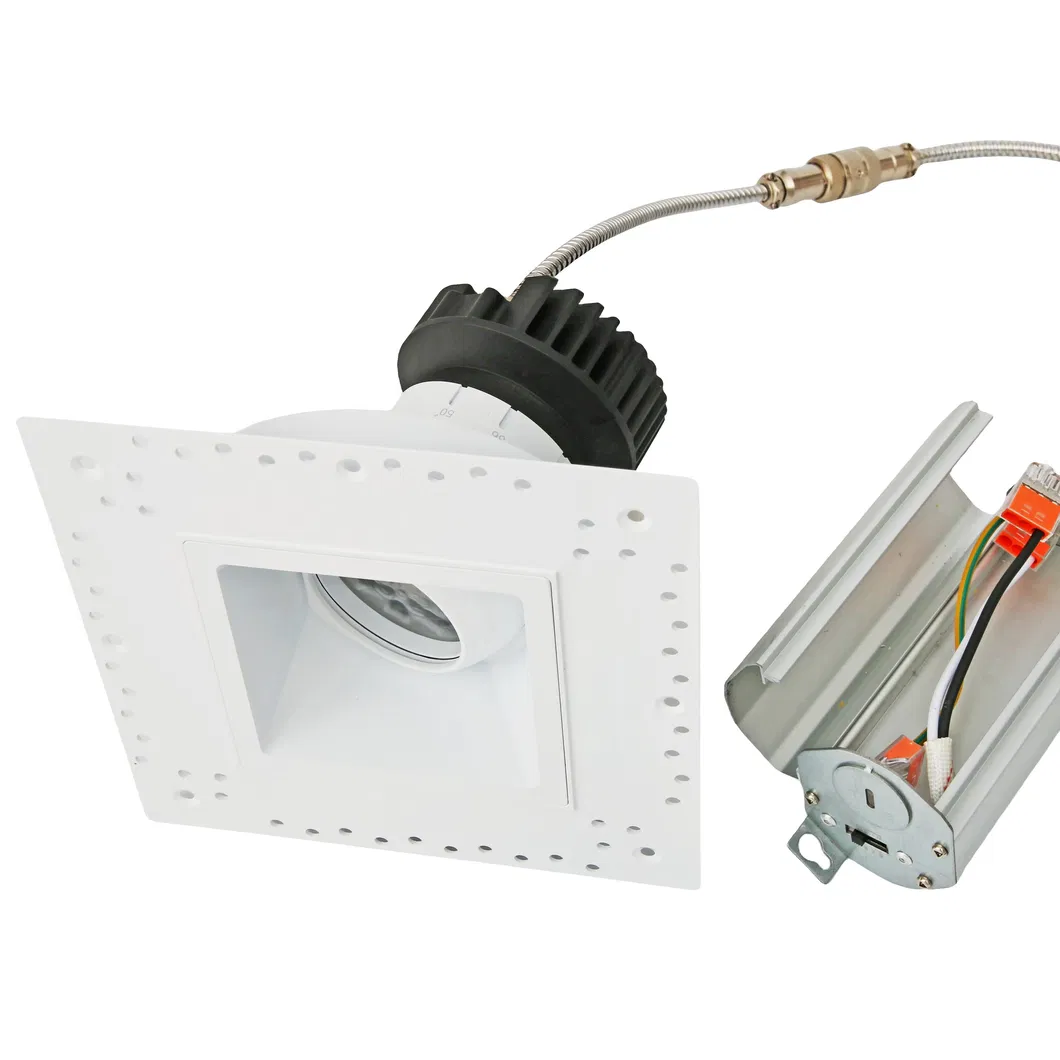

Canless Lights Beam Angle Adjustable

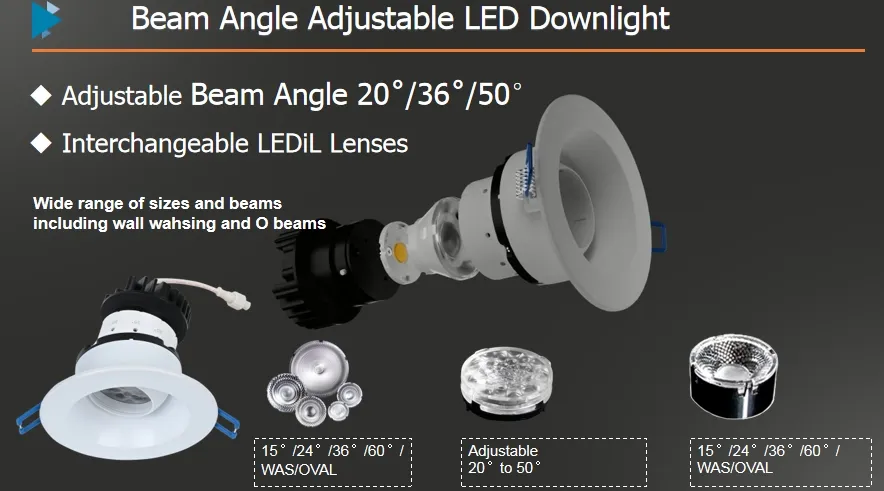

Down Light Structure Details

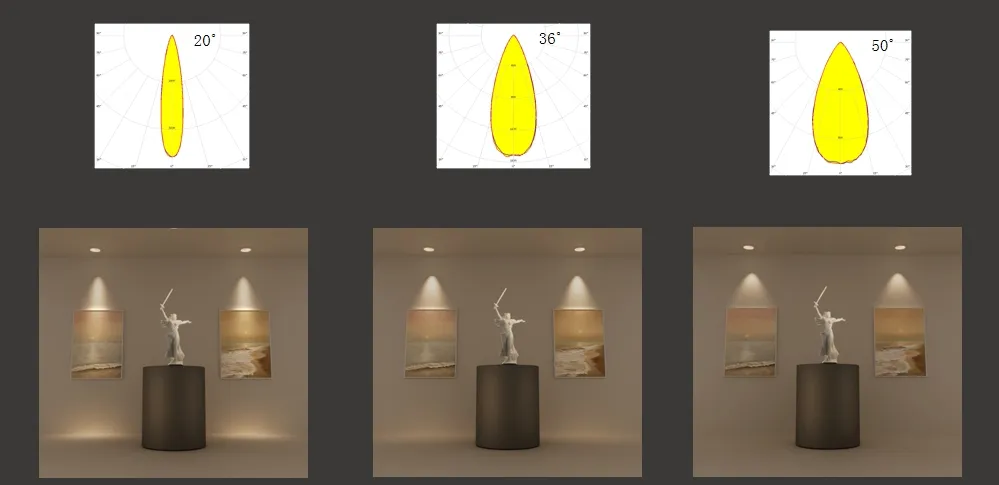

Down Light Optical Engineering

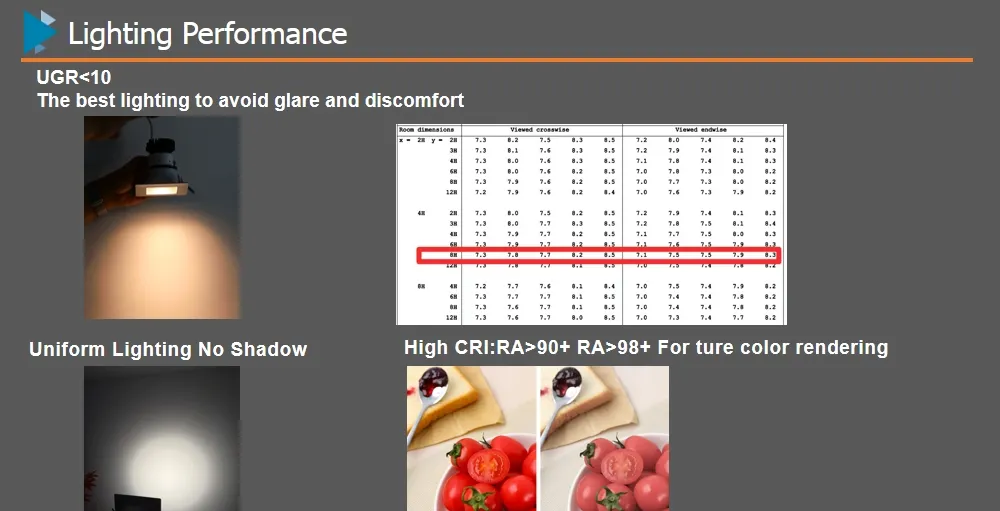

Adjustability Details

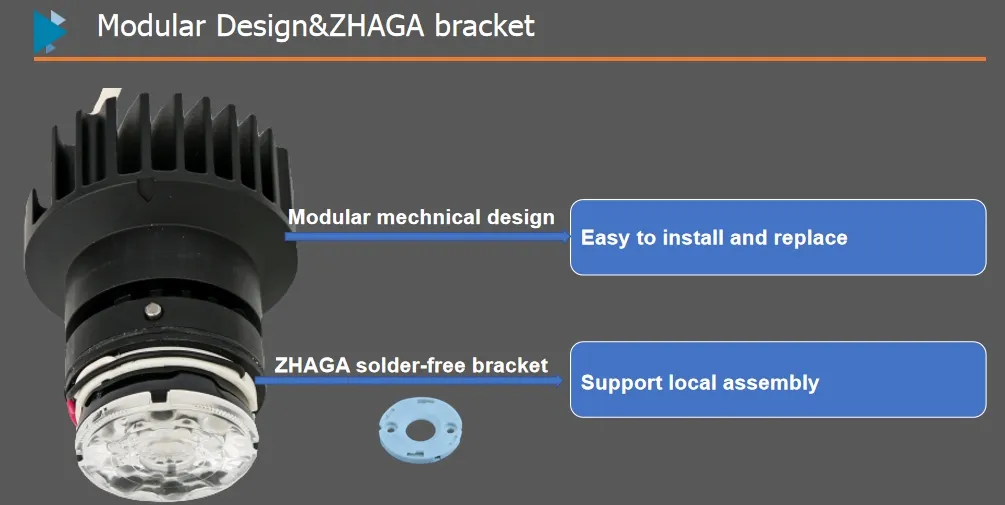

Modular Lens Layout

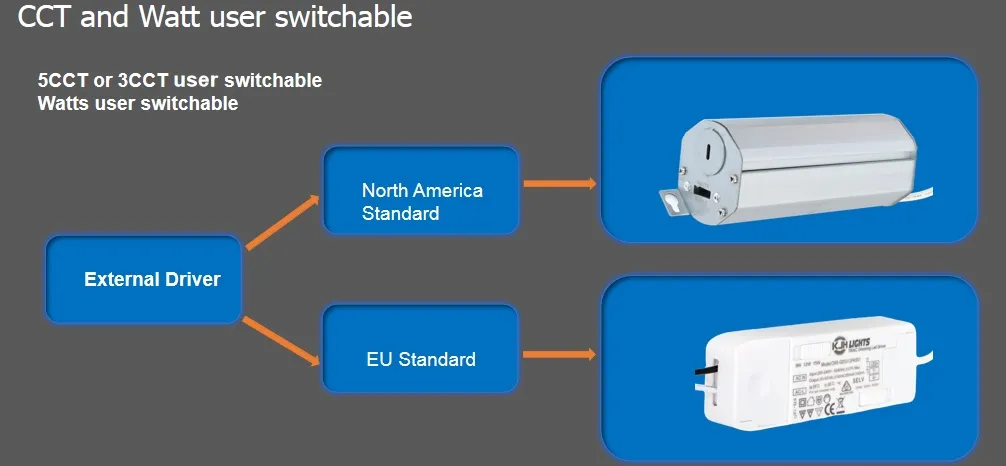

Ceiling Integration details
Trimless finish details
Heatsink details

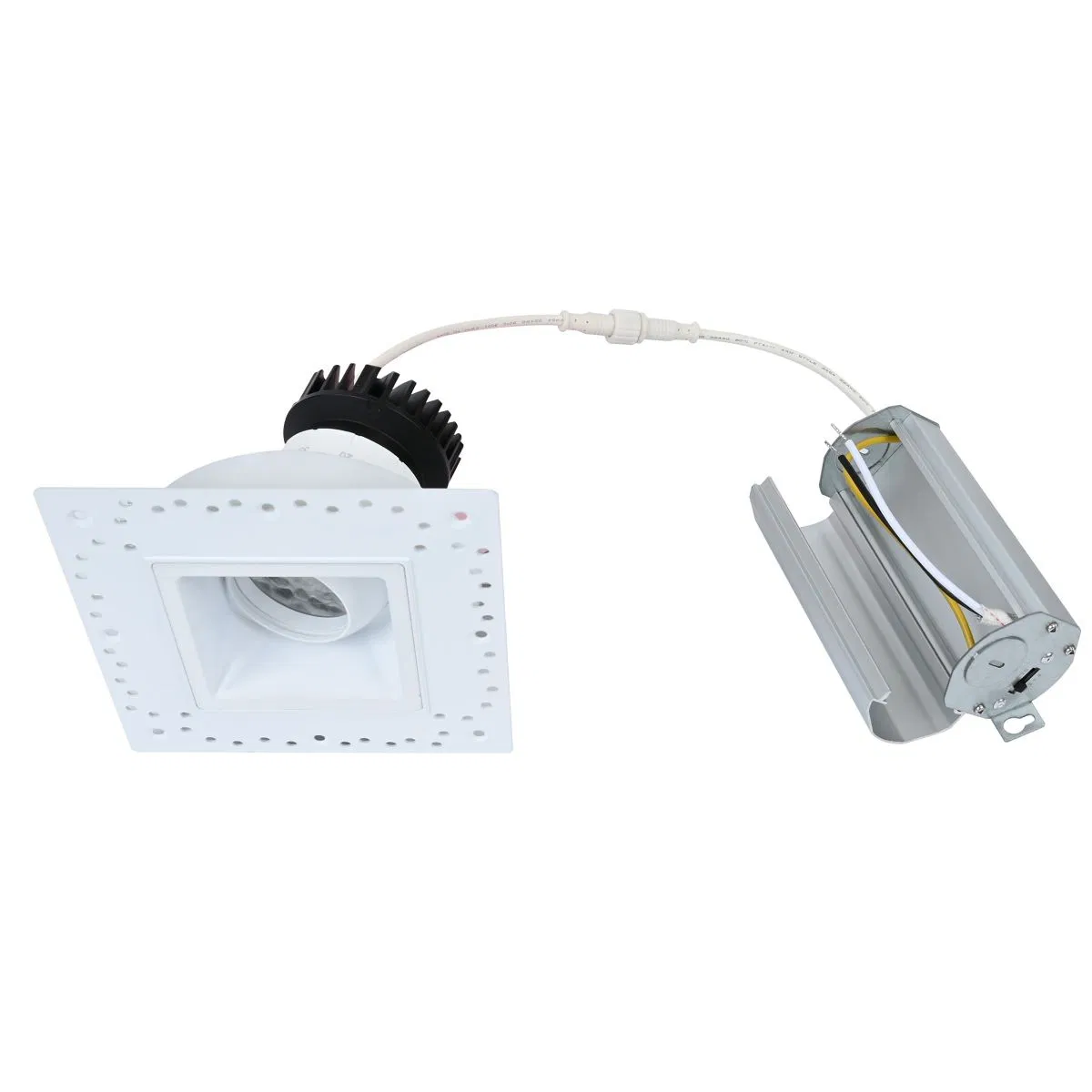

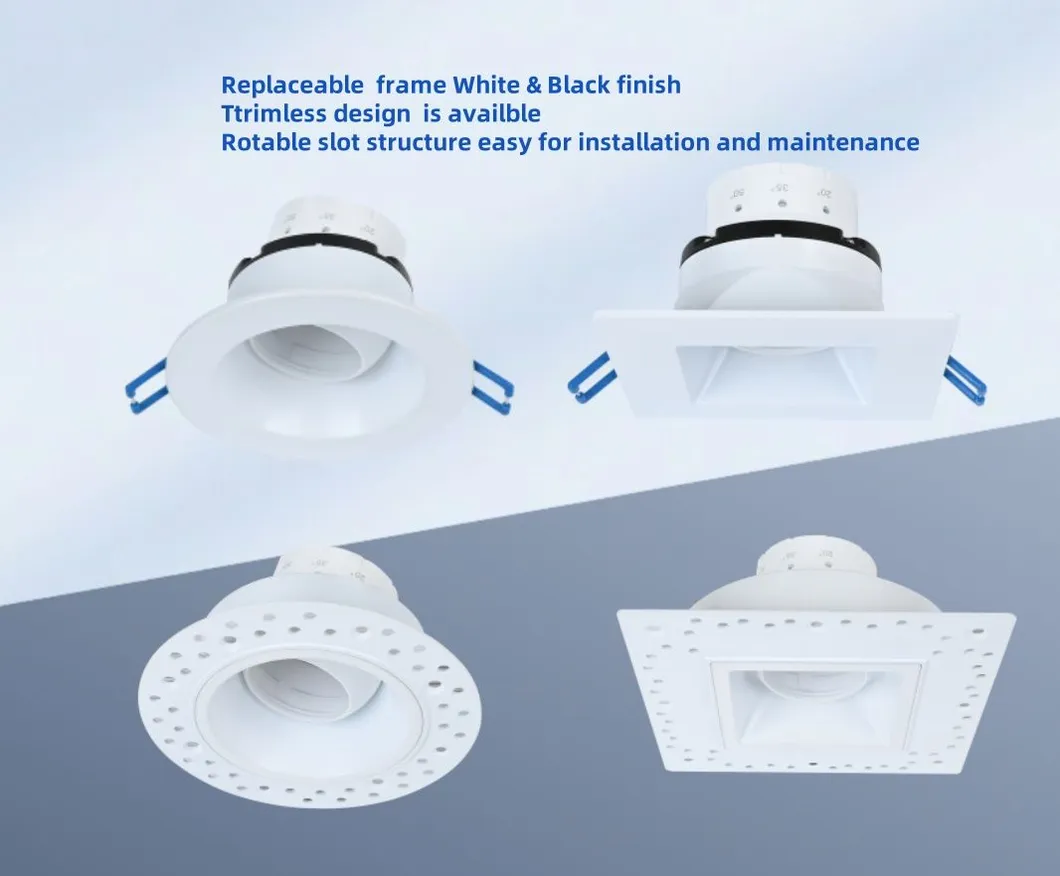

Driver junction box details
Driver Inside Connection Box - No Junction Box   |   5W/7W/9W/12W Selectable   |   5CCT Adjustable 27K/30K/35K/40K/50K

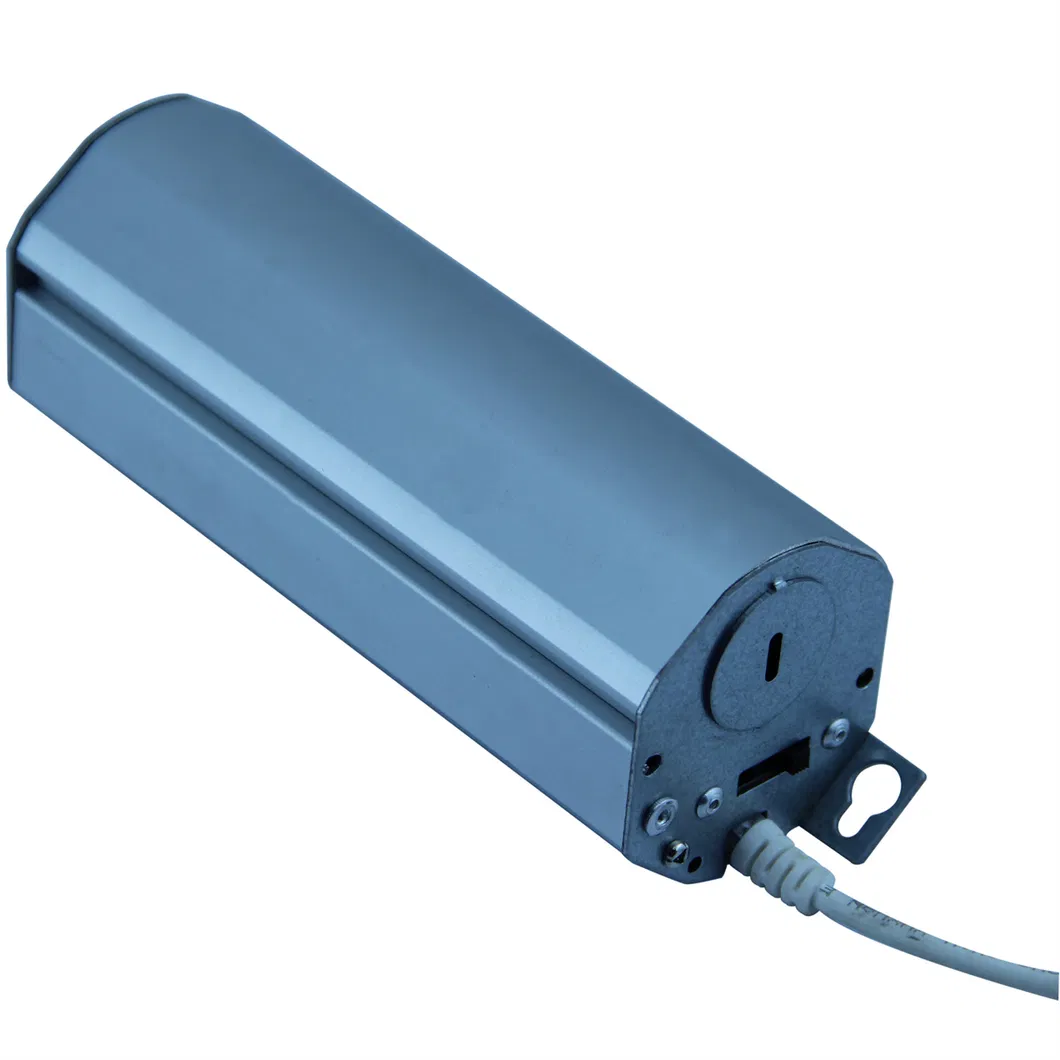

Driver Inside Connection Box 1

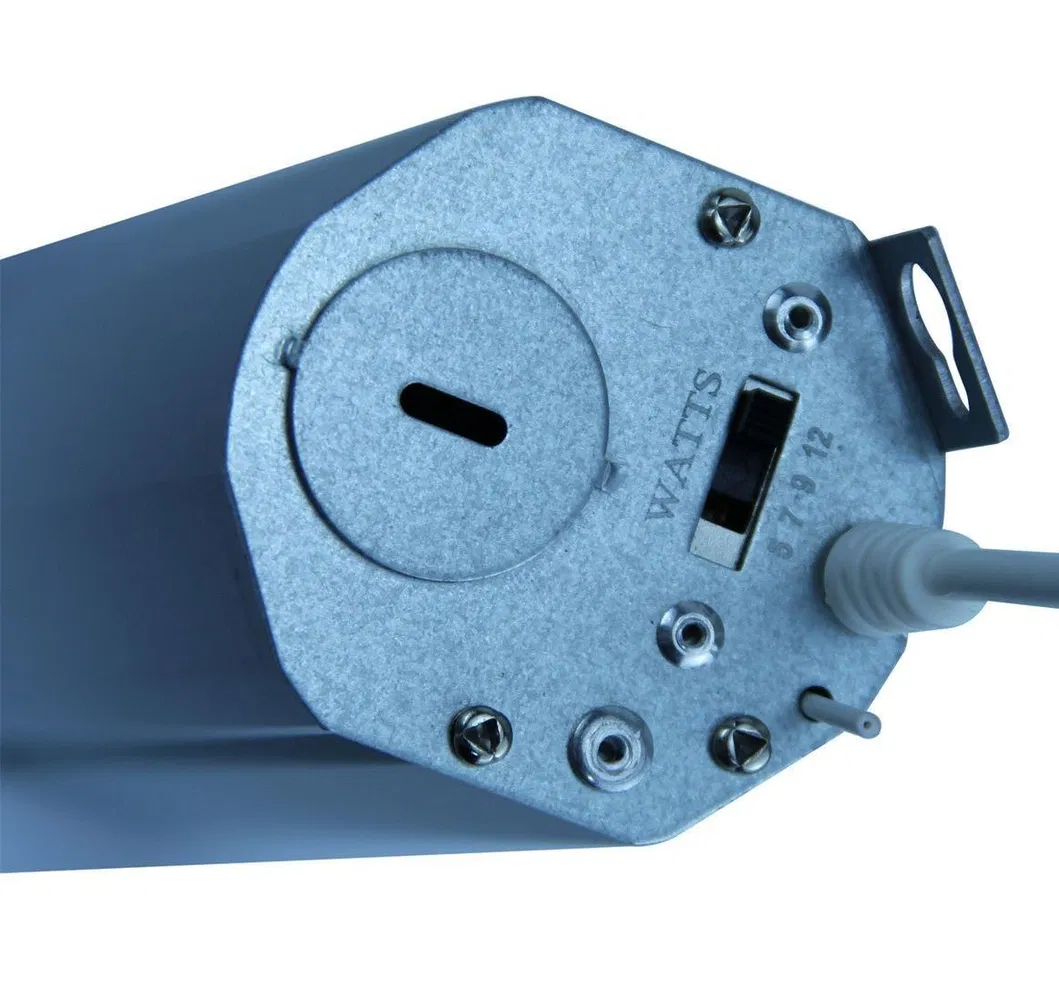

Driver Inside Connection Box 2

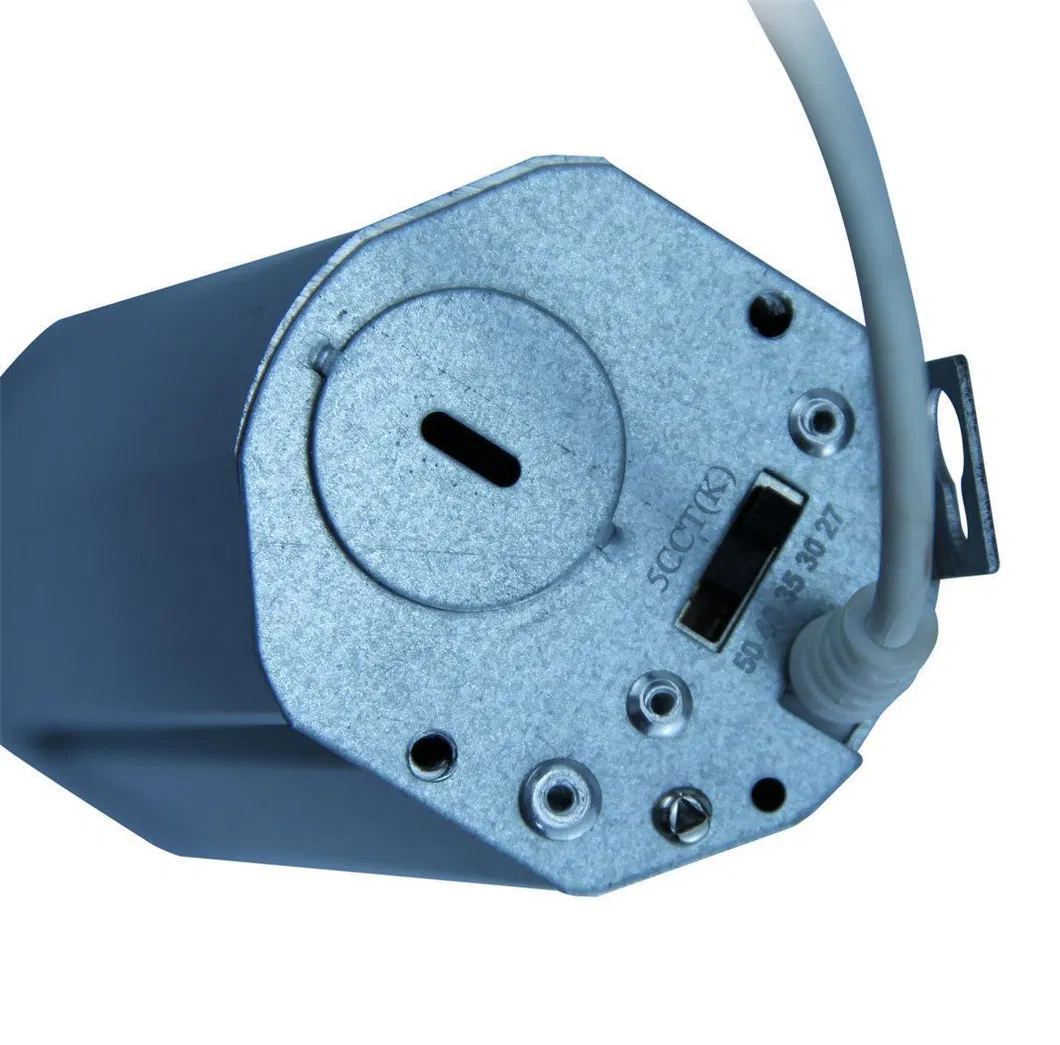

Driver Inside Connection Box 3
Applications

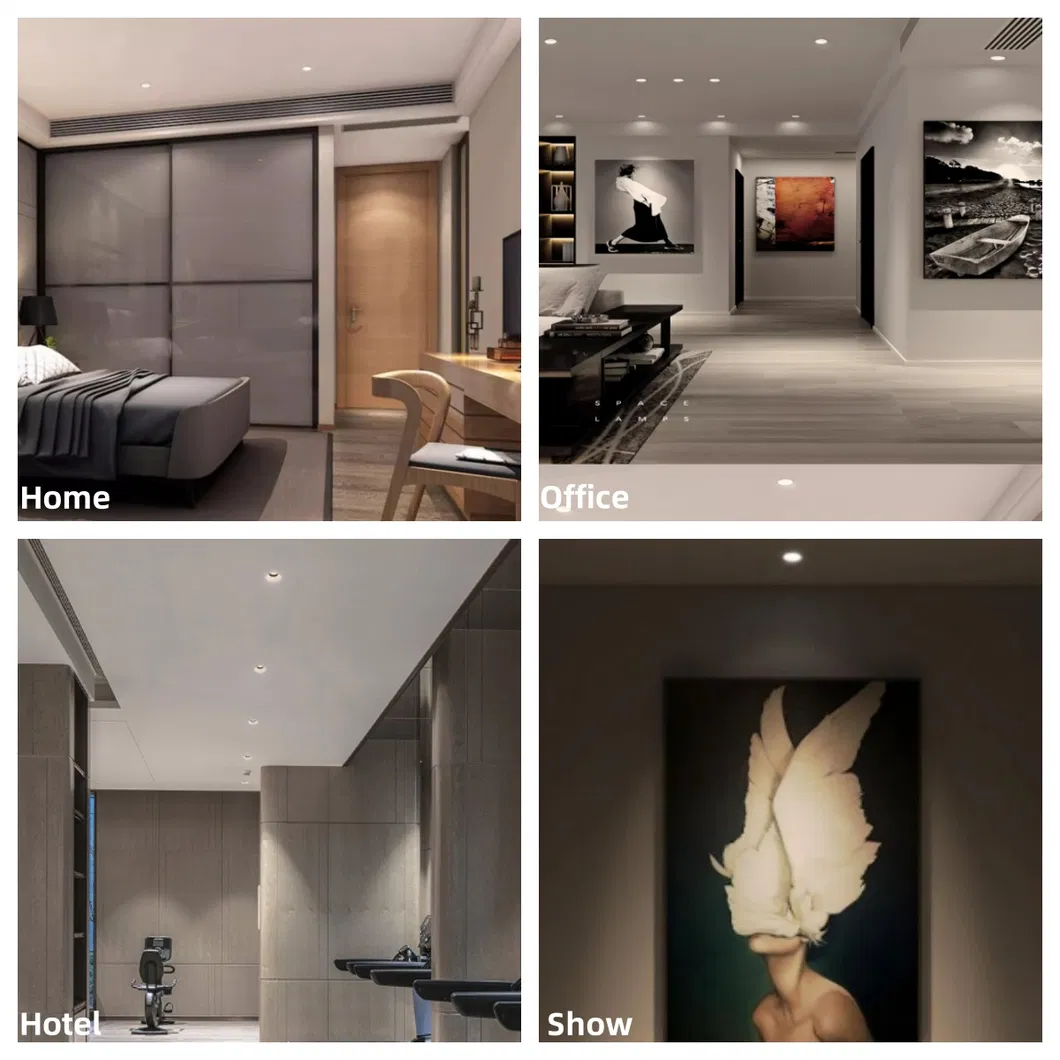

Dimmable LED COB Lighting Applications
Packaging & Shipping

Cardbox package is hard enough for long distance transportation, offering a wide range of logistics options: world express, by sea, air or land transport, etc.

Carton Packaging Box
Shipping Logistics Preparation
Logistics Flowchart
Company Profile

ABOUT US

We are a professional LED lighting company established since 2014, operating within a total facility area of 4,200 square meters. Having cooperated with leading retailers in North America for over 10 years, we are dedicated to providing high-quality lighting products and tailored business solutions that meet global market standards.

Factory Office Environment
Production Assembly Line

OUR ADVANTAGES

Production Capabilities
We operate dedicated hardware factories and power supply R&D center workshops. Our manufacturing infrastructure is equipped with state-of-the-art facilities, including automatic soldering machines, SMT placement lines, die-casting machinery, CNC systems, laser etching systems, and optical verification equipment like integrating spheres and distribution photometers. Over 10 low-voltage aging lines support a monthly throughput capacity of up to 500,000 pieces of LED lighting units.

R&D Engineering
Our R&D team develops products optimized with industry-leading technologies. We host more than 10 dedicated design and structural engineers who specialize in casing aesthetics, electrical circuits, drivers, optical lenses, and intelligent lighting systems. The majority of our design portfolio uses proprietary private molds, carrying standard industry certifications such as ETL, TUV, CE, and RoHS.

Quality Assurance (QC)
Our internal QC department implements testing schedules to qualify functional performance. Using advanced test benches, we check electronic parameters, optical behaviors, moisture limits, and corrosion resistance. Our facilities strictly operate under ISO9001 quality guidelines. Every product undergoes strict visual inspections and a continuous 48-hour burn-in process before shipment packaging.

Factory Show

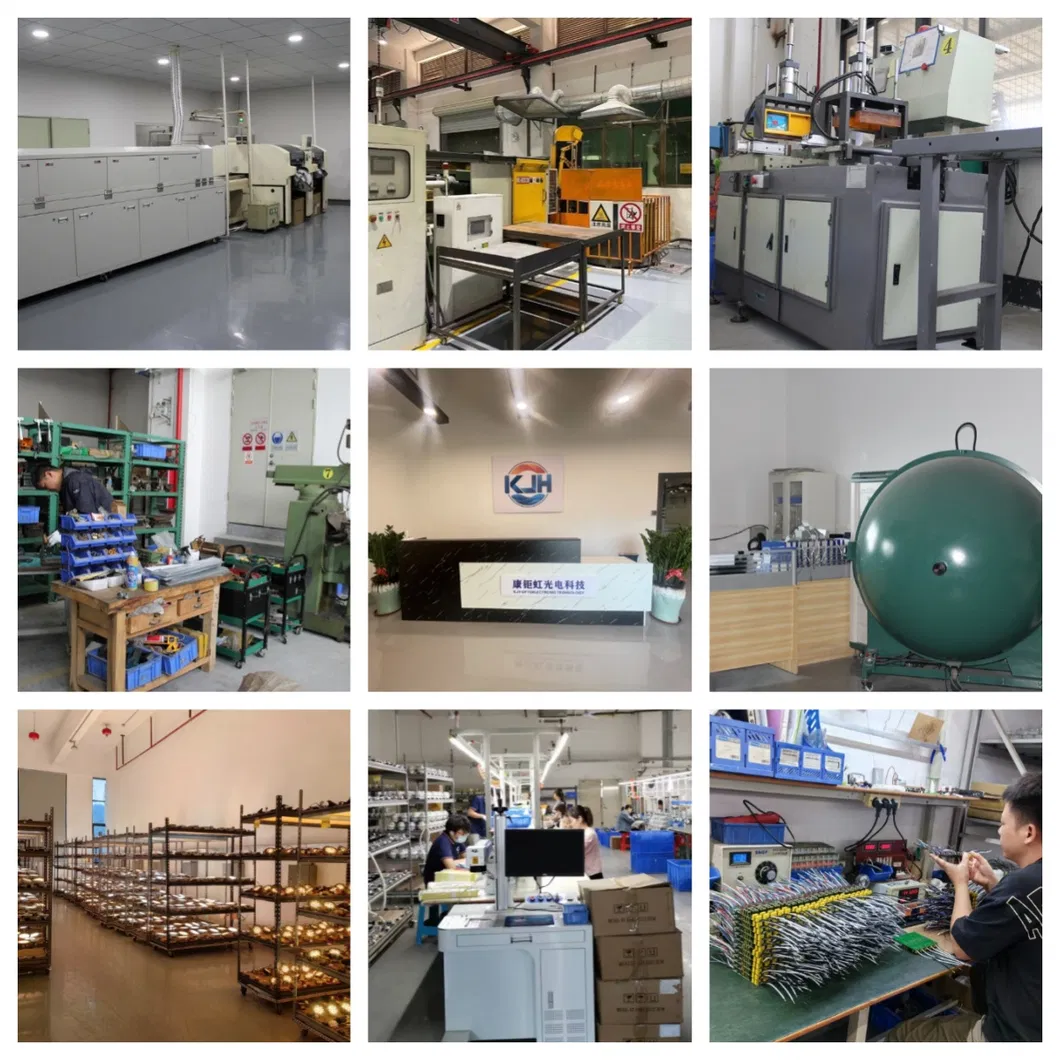

Factory Aging Test Line
FAQ
Q Are you a manufacturer?
Yes, we have our own factory with full production lines to manage the entire manufacturing cycle.
Q Can you offer samples?
Yes, you are welcome to place a sample order to test our product quality before moving to bulk orders.
Q How long is your production time?
For smaller quantities, the production time is typically 5-7 days. The exact lead time depends on the specific order size.
Q Do all products have to be tested before transportation?
Yes, we perform a minimum of 48 hours of continuous testing on all products. Under strict quality control, our failure rate is exceptionally low.
Q How about your packing?
We use durable, neutral cartons that are certified safe for long-distance international shipping. Fragile products can be packed in protective wooden cases if necessary.
Q How to solve after-sales problems?
Please take photos or videos of the issue and send them to us. Once confirmed, we will provide you with a satisfactory solution within 24 hours.
