Adjustable 25W 5-Inch LED Recessed Downlight with Gimbal Feature

Customization: Available
Beam Angle: 12/24/36
Input Voltage: 100-240VAC

Product Description

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • FAQs

Basic Info.

Model NO.
AW-DL5525
Power
25W
Color Temperature
3000K/4000K/5000K/6000K
Lamp Body Material
Aluminum
Source Number
1PCS COB
Installation
Recessed
Lamp Installation
Screw Holder
Switch Type
Touch On/Off Switch
Warranty
3 Years
Application
Home Furnishing, Jewelry Stores
IP Rating
IP20
Certification
CCC, CE, CQC, EMC, ETL, LVD, PSE, RoHS, SAA
Lumen
2300lm
Led's
Famous International Brand COB
Color
White / Black
CRI
>83/90
LED Drivers
Eaglcrise LED Driver
Light Direction
Adjustable
Net Weight
0.9 Kg
Cut Size
125 mm(5inch)
Qty/Cnt
18PCS/Cnt
Delivery
3-7 Days
Transport Package
a=a Paper Carton
Specification
170*170*120MM
Production Capacity
3000PCS / Month

Packaging & Delivery

Package Size
17.00cm * 17.00cm * 17.00cm
Package Gross Weight
0.800kg

Product Description

💡 Description of the gimbal recessed downlight:

The Anti-glare gimbal recessed downlight is an exquisite lighting fixture seamlessly embedded into ceilings. Its design preserves the flawless unity of ceiling artistry, ensuring that no lamp installation disrupts the aesthetic. The hallmark of this fixture is its ability to uphold the overall harmony and elegance of architectural interiors, thanks to its structural ingenuity. The light source is cleverly concealed within the decor, preventing exposure and eliminating irritation to the eyes. Its superb brightness, narrow beam angle, and vibrant colors make it the perfect lighting solution for jewelry stores, enhancing the allure of precious displays.

Distinctive Features of gimbal recessed downlights:

  • Possesses a sleek, narrow edge design with a cut size of 125MM
  • Offers adjustable lighting direction for tailored illumination
  • Compact design with a powerful 25W watt output
  • Made with premium materials ensuring excellent heat dissipation
  • Delivers high brightness and high lumen output
  • Provides a beam angle of 12° / 24° with an exceptional lens
  • Equipped with a flicker-free LED driver for consistent light quality
  • Warranty: An assurance of quality with a 3-year coverage

Product Parameters

--Delivers High-Performance Adjustable Lighting suitable for both Commercial and Residential Spaces
Core Technical Parameters
Category Specifications
Model AW-DL5525
Input Voltage 100-240V AC (Universal Voltage, 50/60Hz Compatible)
Power Consumption 25W
CRI (Color Rendering Index) >83 (Premium Color Accuracy for Retail/Museum Applications)
Beam Angle 12° / 24° / 36°
CCT (Correlated Color Temperature) 3000K/4000K/5000K/6000K
Fixture Dimensions Diameter: 140mm, Height: 115mm
Cut-Out Size 125 mm (5 inch)
Surface Finish White
Driver Specifications Eaglcrise LED Driver (100-240V Input, 0.9 Power Factor)
Packaging 18 Units/Carton, Each Individually Boxed (Eco-Friendly Recyclable Materials)

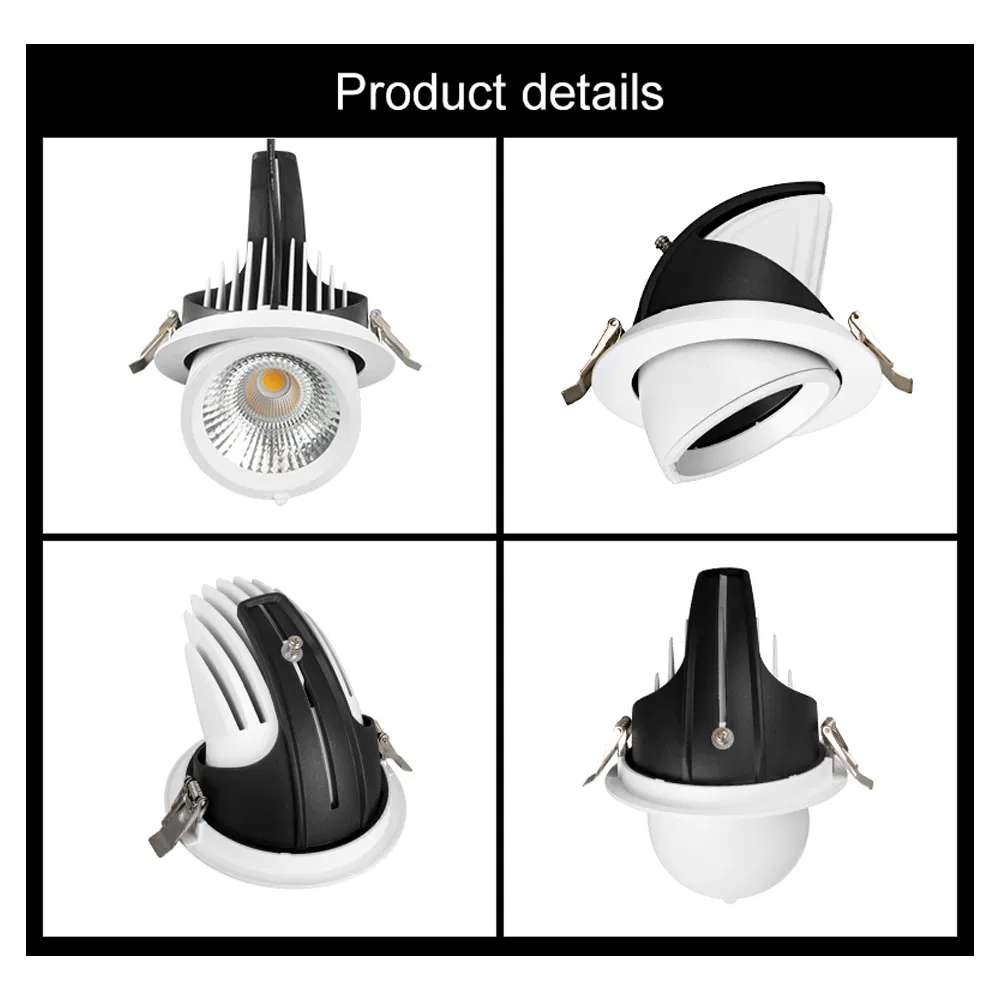

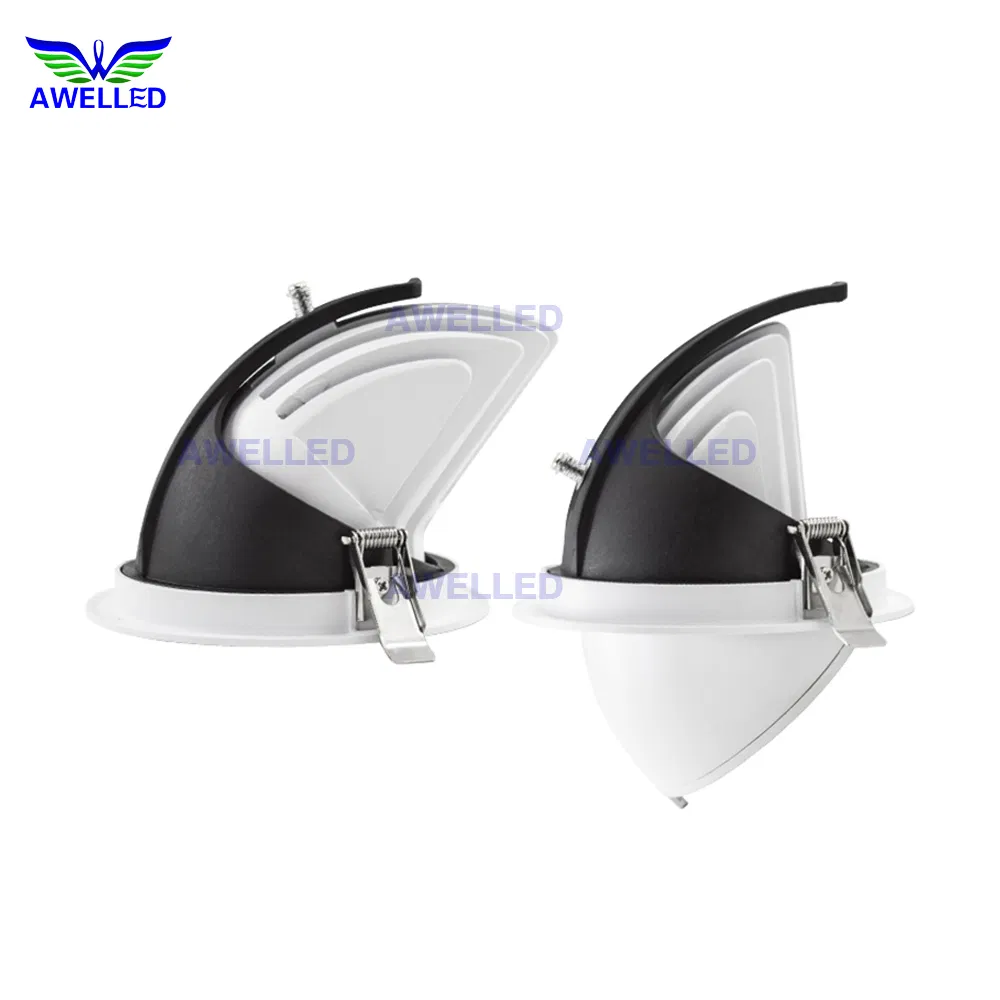

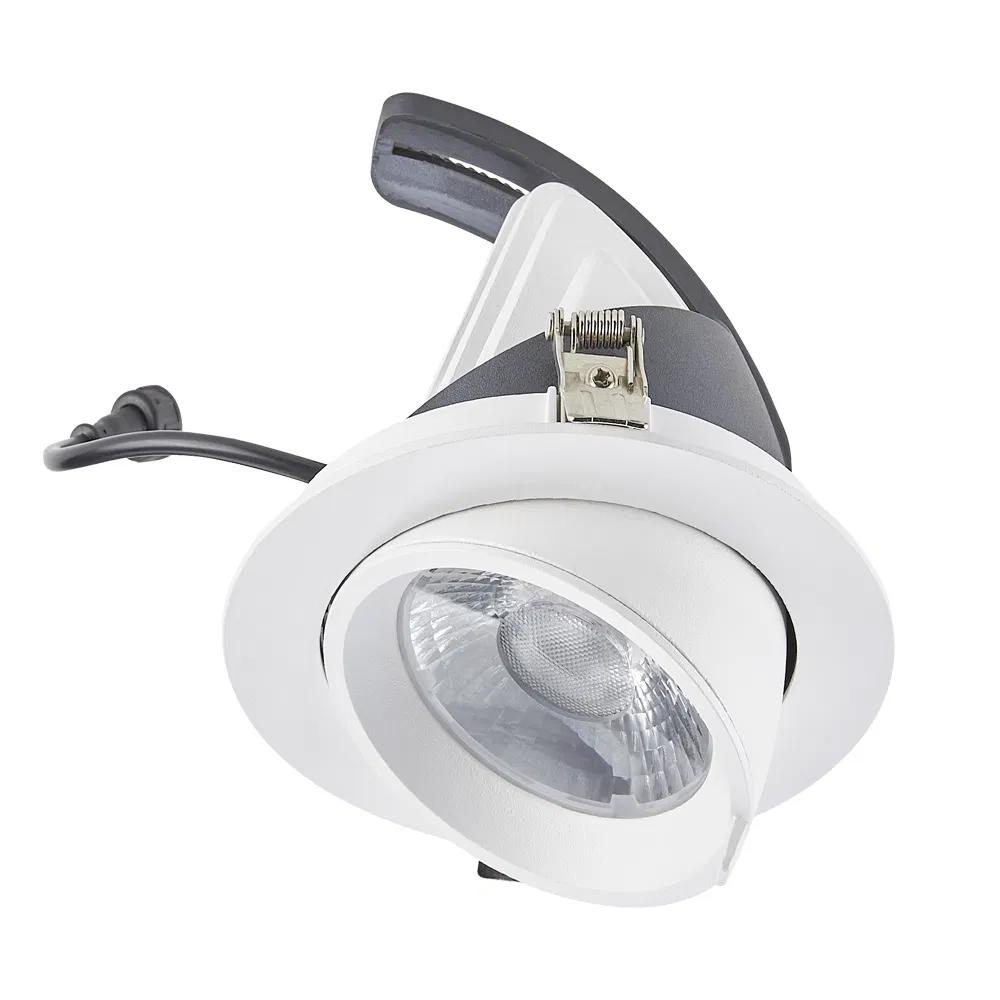

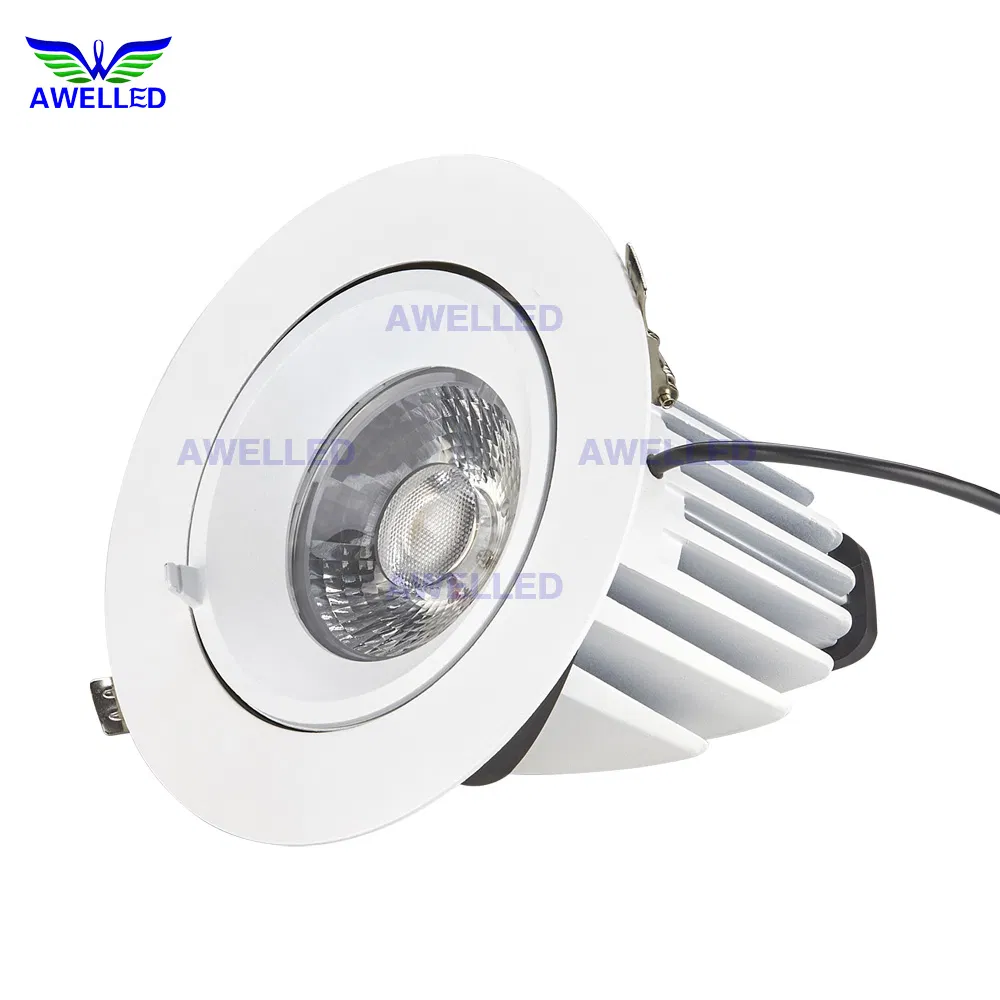

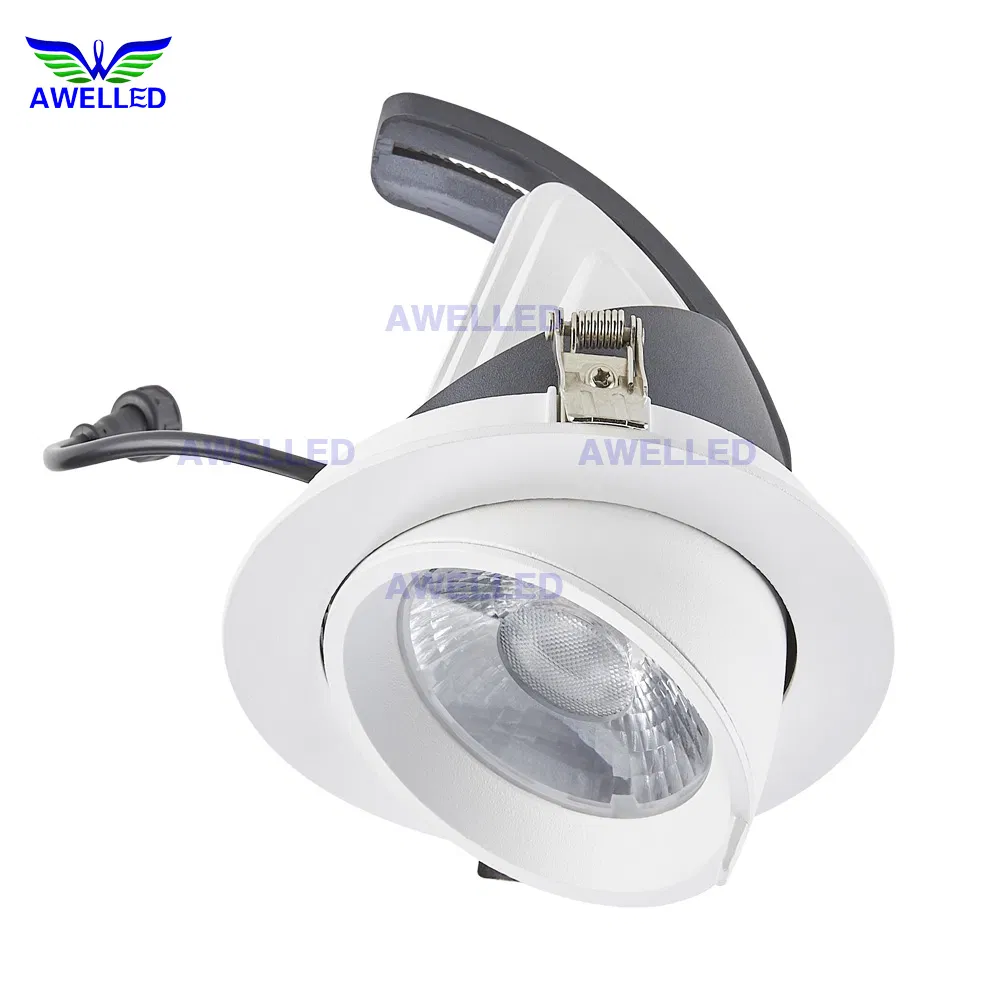

Detailed Photos

More details of gimbal recessed downlight:

Adjustable 25W 5-Inch LED Recessed Downlight with Gimbal Feature

🔍 What are gimbal recessed downlights?

These ceiling lights incorporate 18 high-efficiency SMD chips and a single high-performance lens. Each LED features a stepped anti-glare design, with an optional anti-glare net to achieve optimal light diffusion without direct glare. This is especially beneficial for employees working long hours, providing a more comfortable visual environment.

🏬 LED Downlights for Commercial vs. Jewelry & Watch Stores:

LED ceiling lights offer versatile applications across both residential and commercial settings. For homes, install these energy-efficient fixtures in bedrooms, bathrooms, and living rooms to enhance lighting while reducing costs. In commercial spaces, they excel in offices, hallways, conference rooms, and general display lighting. Whether opting for a brand-new installation or cost-saving retrofitting, these downlights deliver exceptional performance.

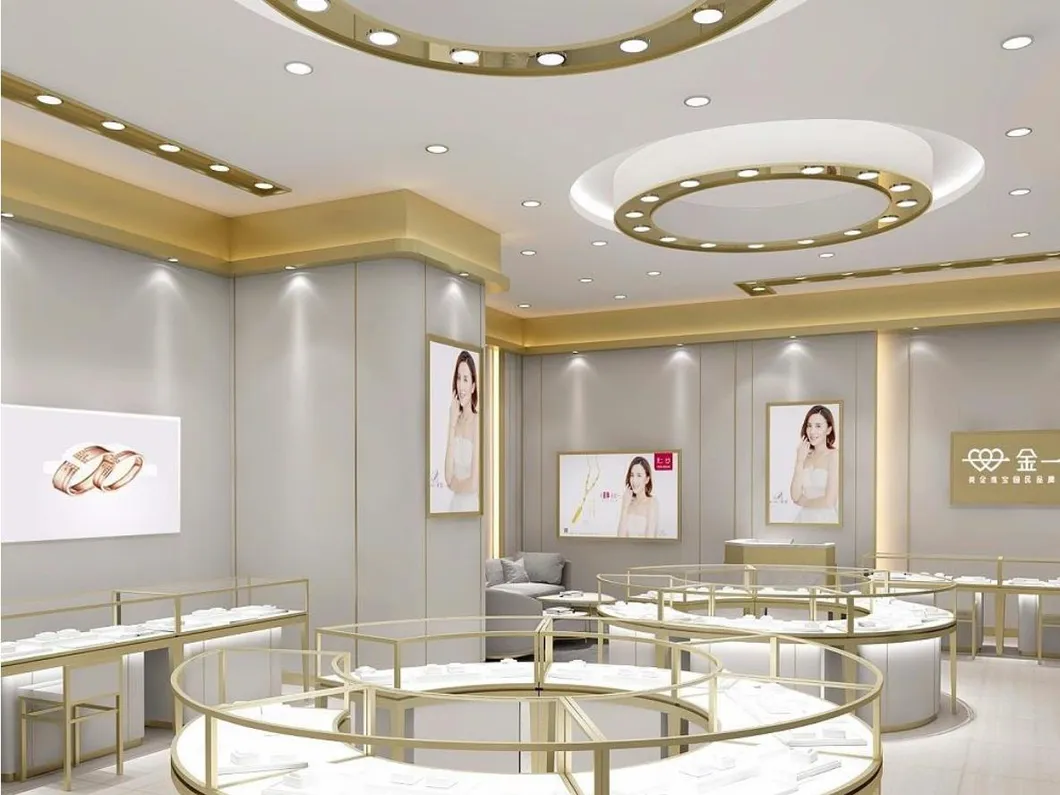

Projects on gimbal recessed downlights in Luxury Stores:

Adjustable 25W 5-Inch LED Recessed Downlight with Gimbal Feature

Frequently Asked Questions

What makes the gimbal recessed downlight anti-glare?
The downlight is designed with the light source deeply concealed within the structure, featuring a stepped anti-glare design. An optional anti-glare net can also be equipped to ensure optimal light diffusion while preventing direct eye irritation.
Can the light direction of this downlight be adjusted?
Yes, it features a gimbal mechanism that allows you to adjust the lighting direction easily, making it perfect for targeted or accent lighting in commercial displays and galleries.
What are the recommended applications for the AW-DL5525?
Due to its high CRI (>83/90) and narrow beam angle options, it is highly recommended for jewelry stores, watch boutiques, luxury retail outlets, commercial showrooms, as well as high-end residential interiors.
What size cutout is required for installation?
This fixture has a cut-out size of 125 mm (5 inches). The exterior diameter of the fixture is 140 mm with a height of 115 mm.
Is the LED driver included and is it flicker-free?
Yes, each downlight comes equipped with a premium, flicker-free Eaglcrise LED driver, which supports universal voltage input (100-240V AC) and maintains stable lighting quality.
What is the warranty period for this recessed downlight?
The AW-DL5525 gimbal recessed downlight comes with a robust 3-year warranty, assuring premium performance and quality reliability.
