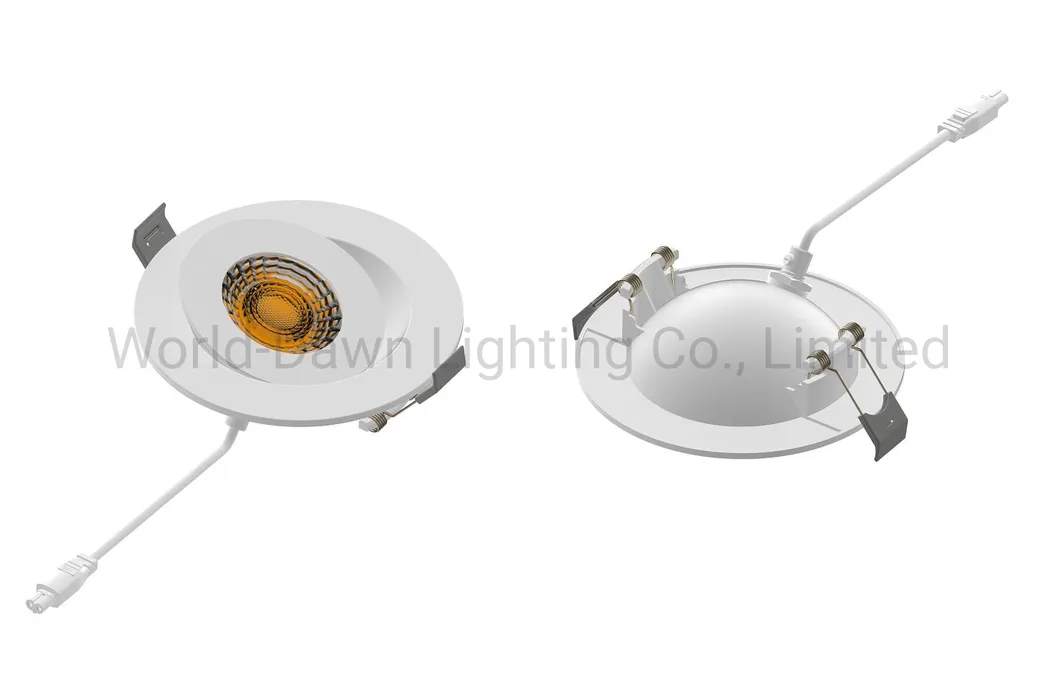

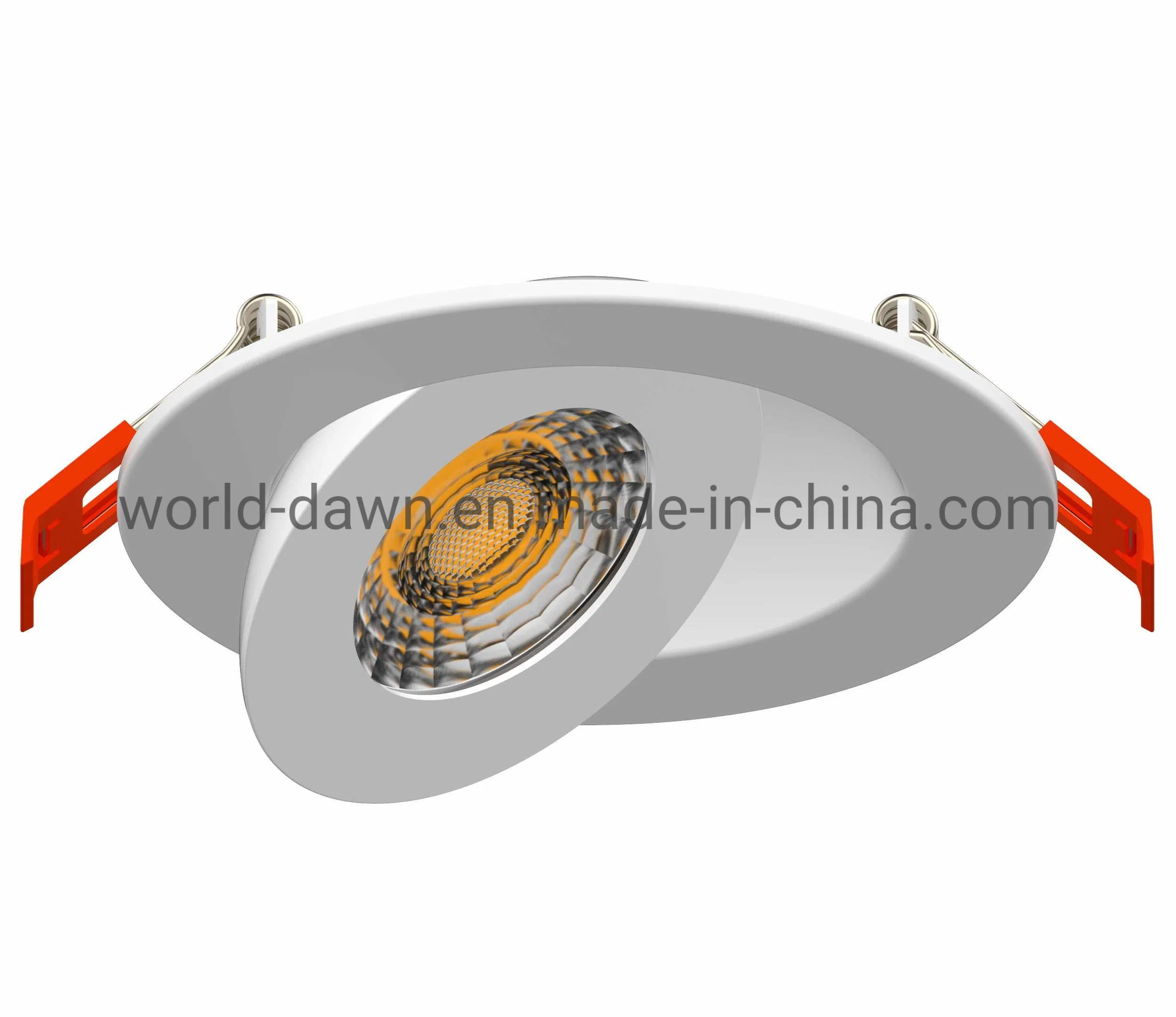

LED Panel Lights 360 Degree Ratatable Gimbal Lamp Recessed LED Down Light
LED Panel Lights 360 Degree Ratatable Gimbal Lamp Recessed LED Down Light
LED Panel Lights 360 Degree Ratatable Gimbal Lamp Recessed LED Down Light
LED Panel Lights 360 Degree Ratatable Gimbal Lamp Recessed LED Down Light
LED Panel Lights 360 Degree Ratatable Gimbal Lamp Recessed LED Down Light
1 / 5
LED Panel Lights 360 Degree Ratatable Gimbal Lamp Recessed LED Down Light
LED Panel Lights 360 Degree Ratatable Gimbal Lamp Recessed LED Down Light
LED Panel Lights 360 Degree Ratatable Gimbal Lamp Recessed LED Down Light
LED Panel Lights 360 Degree Ratatable Gimbal Lamp Recessed LED Down Light
LED Panel Lights 360 Degree Ratatable Gimbal Lamp Recessed LED Down Light

LED Panel Lights 360 Degree Ratatable Gimbal Lamp Recessed LED Down Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
360 downlight
Power
7W
Base Material
Plastic
Usage
Room, Decoration, Tunnel, Engineering, Store, Showcase
Life
50000h
IP Rating
IP44
Certification
CE, RoHS
Power Source
AC
Current Type
AC
Input Voltage
100-240V
LED Chips
SMD2835
Specification
7W
Trademark
OEM
HS Code
9405409000
Capacity
50000PCS/Month
PBT LED Gimbal Light 360 Degree Rotatable Panel Down Light
LED Panel Lights 360 Degree Rotatable Gimbal Lamp Recessed LED Down Light
Product Features

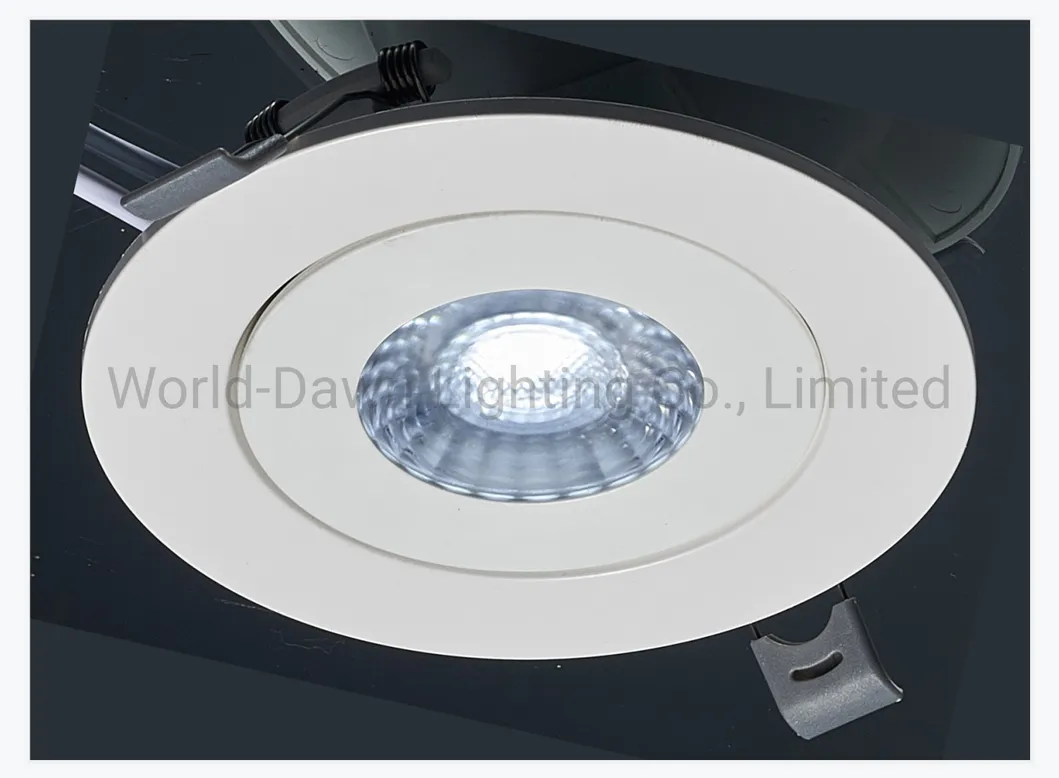

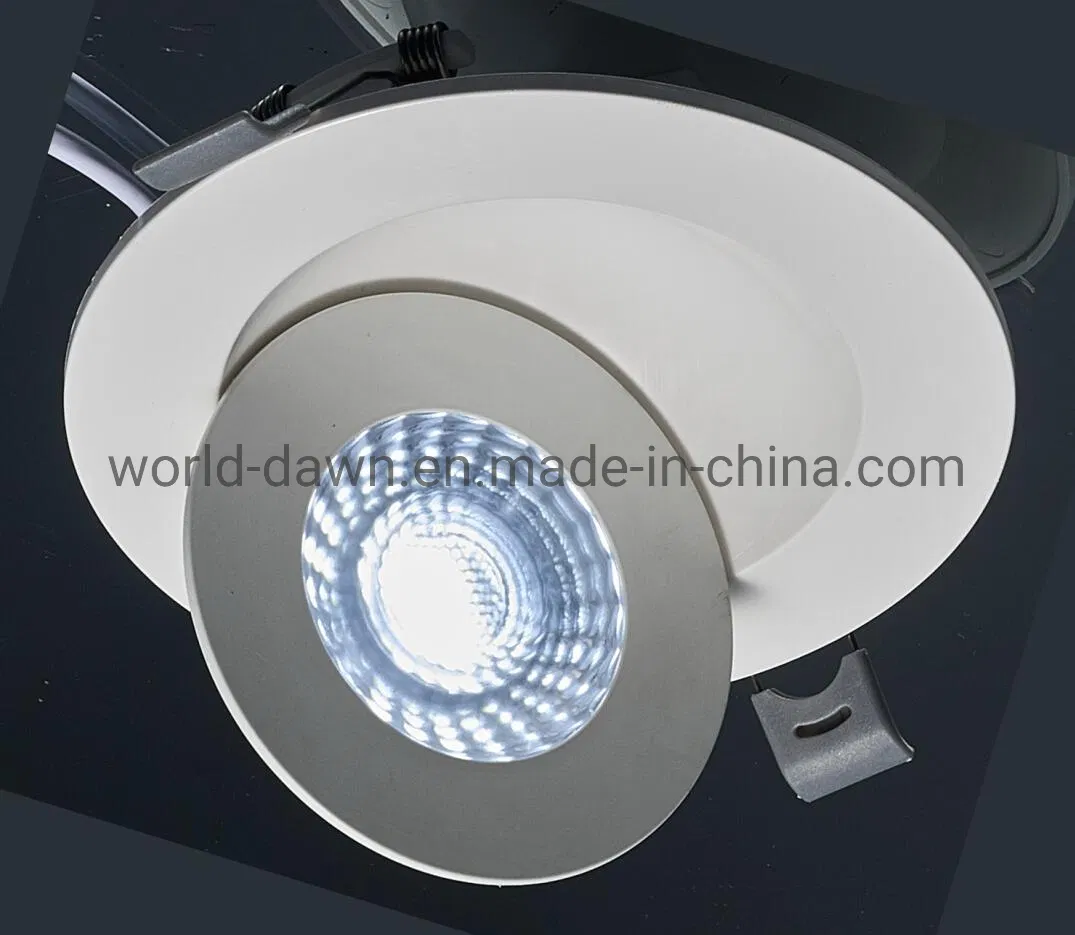

Rotatable Gimbal Lamp Design

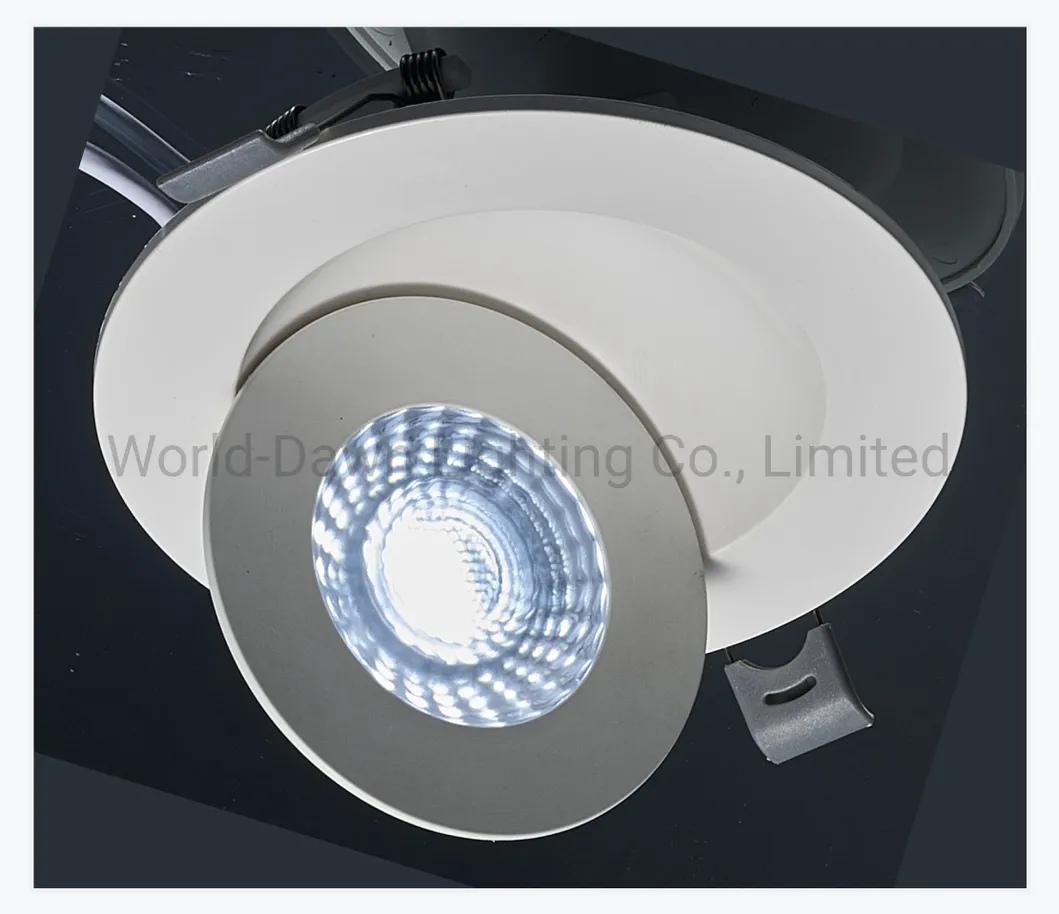

Recessed LED Down Light Installation

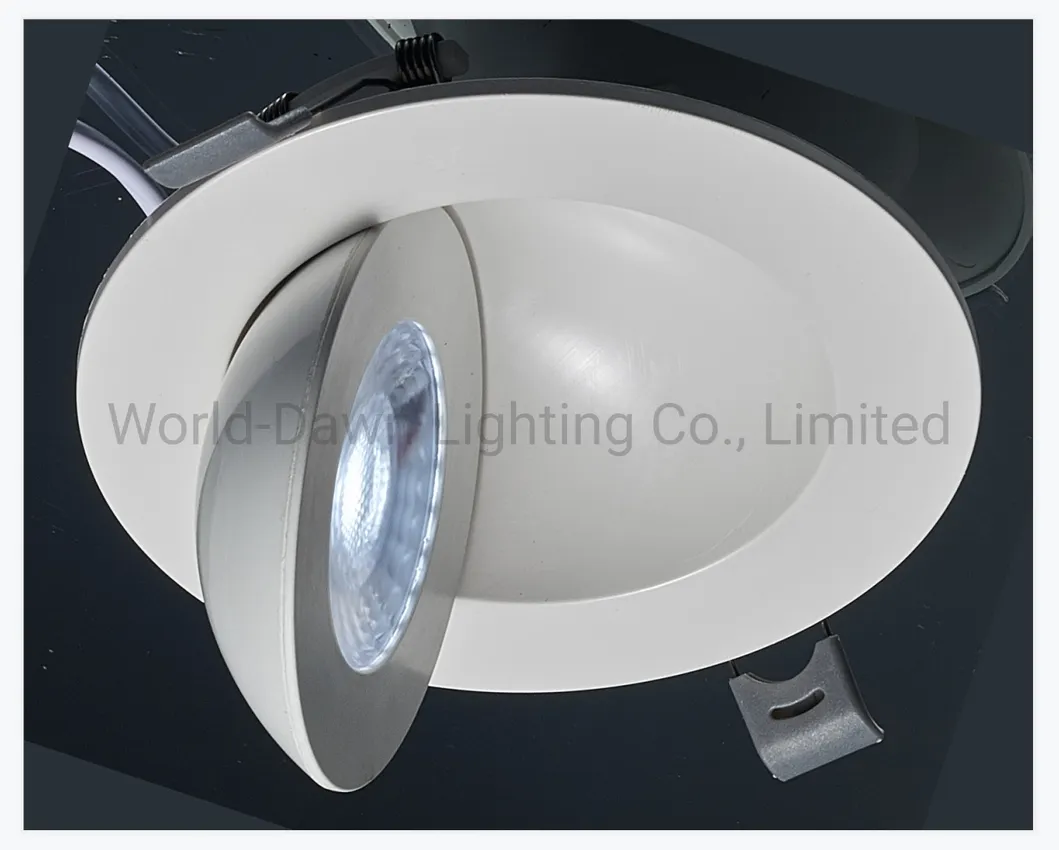

Gimbal Downlight Structure

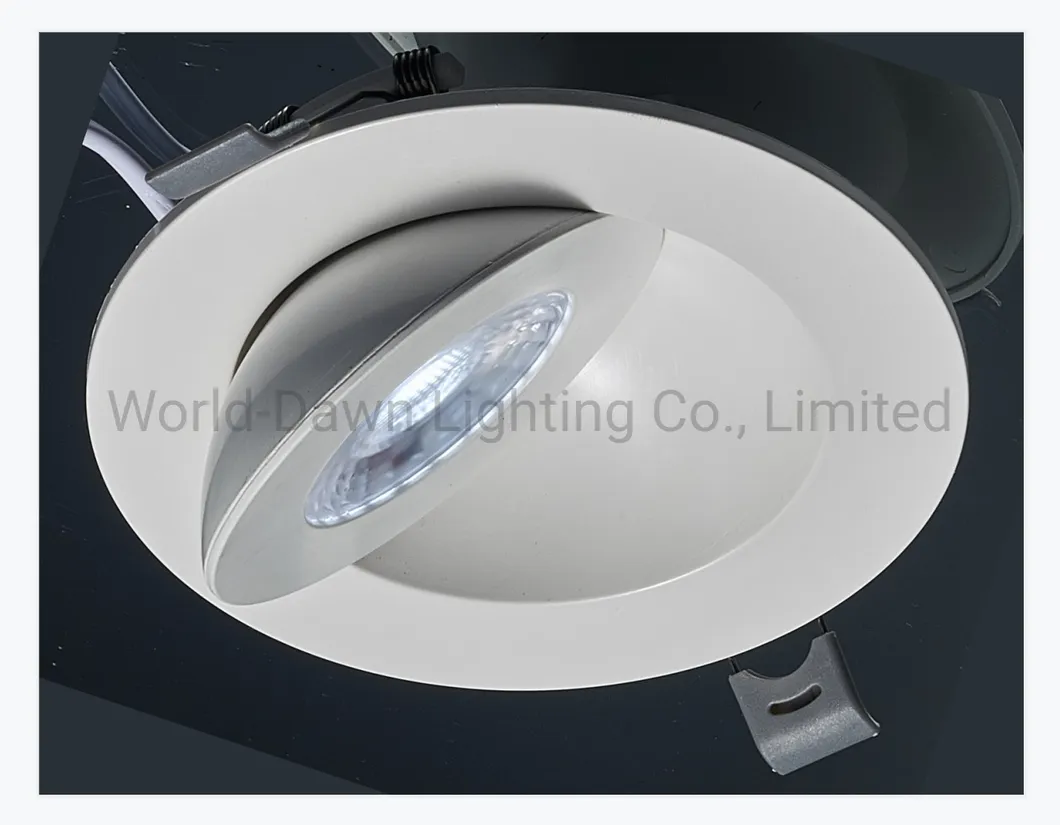

High Quality LED Chips

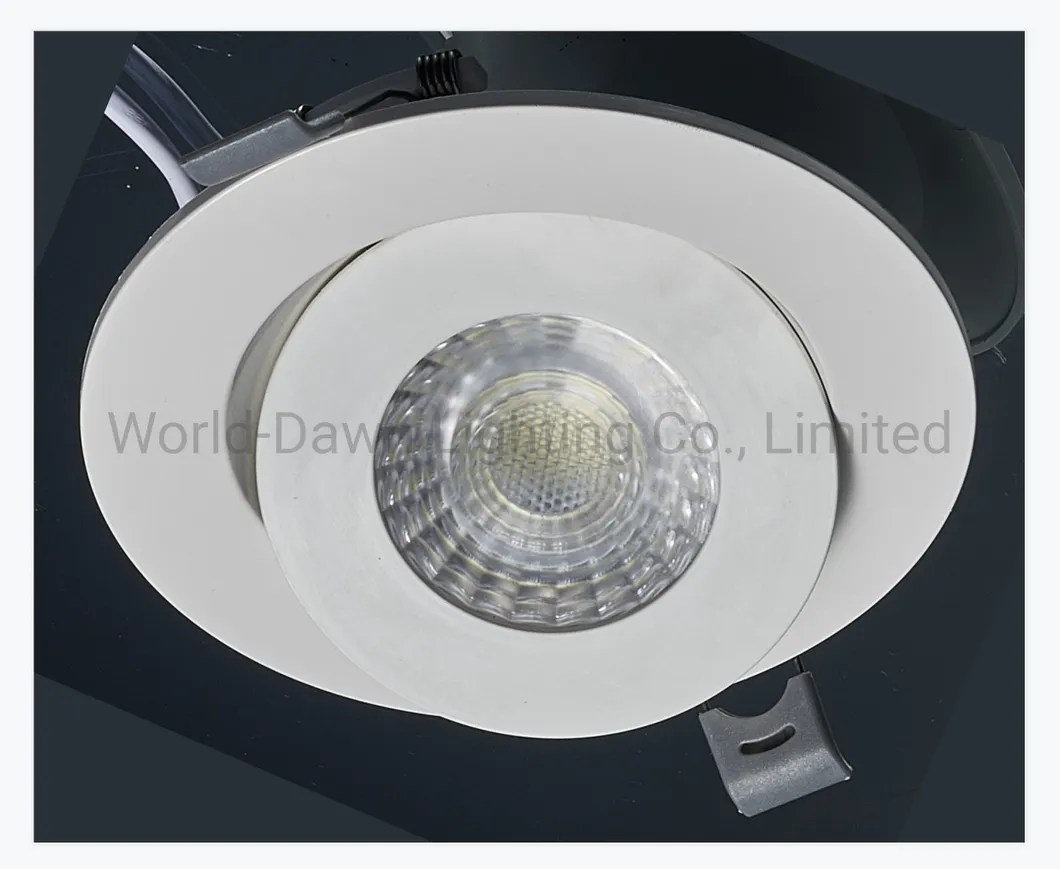

PBT Down Light Details

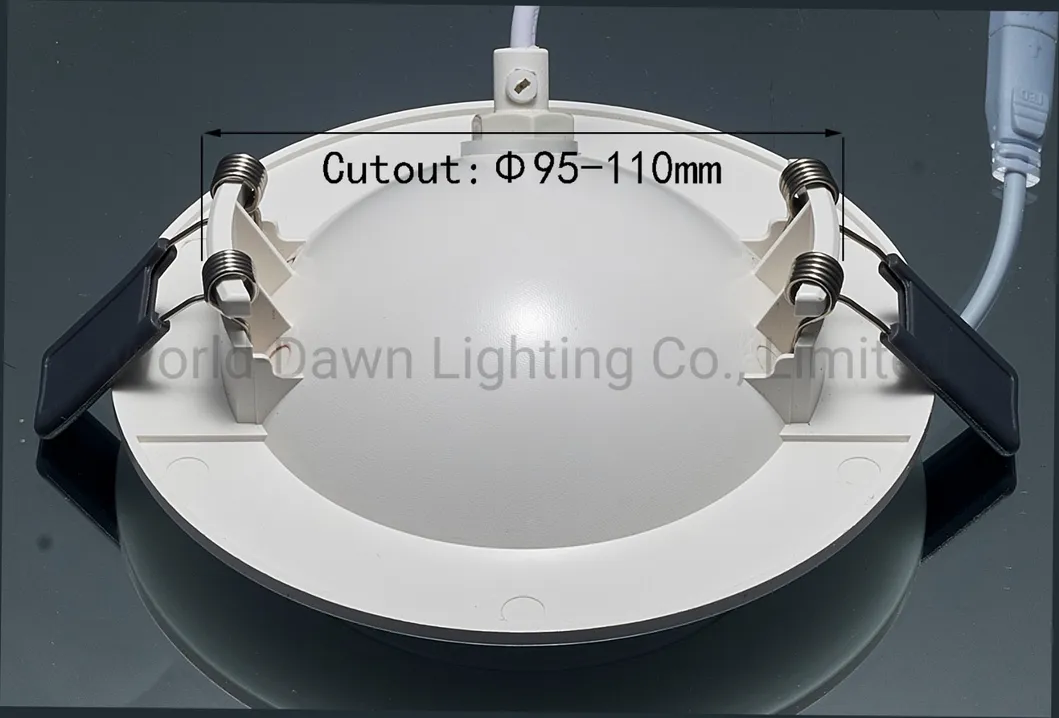

Safety Isolated Driver

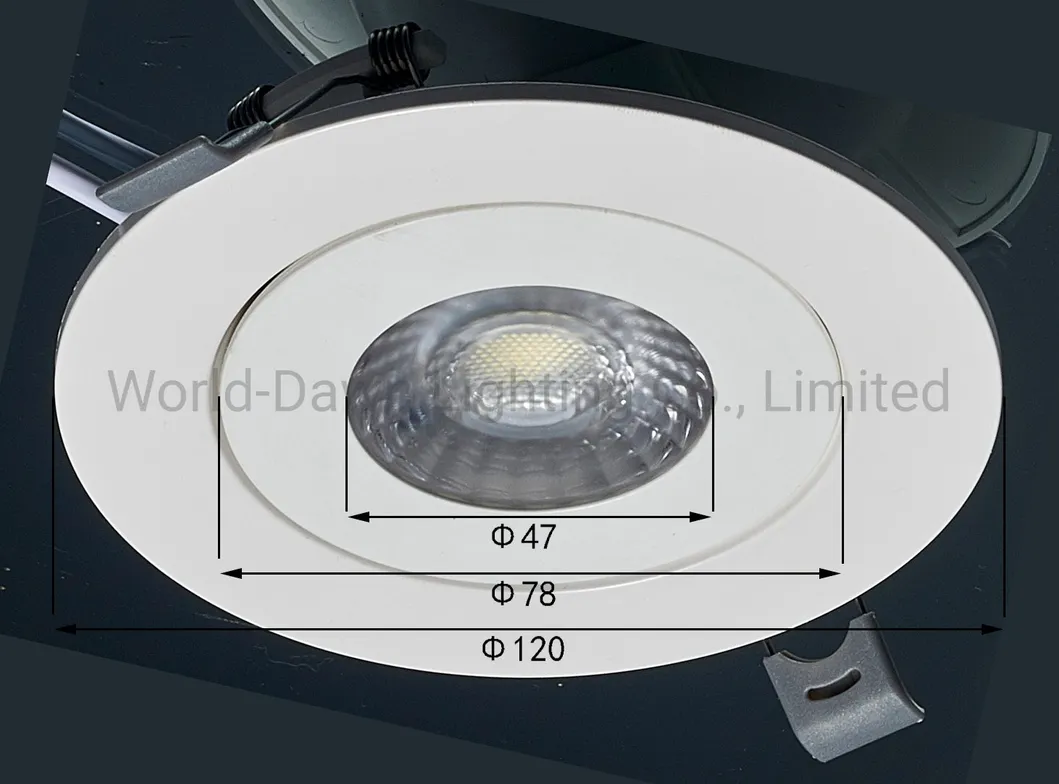

Light Distribution Angle
1
All products use Isolated 85-245V Driver, full power.
2
High Light Efficacy: ≥85 LM/W, Color Rendering Index (CRI): ≥80.
3
Warranty: 2 Years.
4
Light Beam Angle: 45 Degree.
5

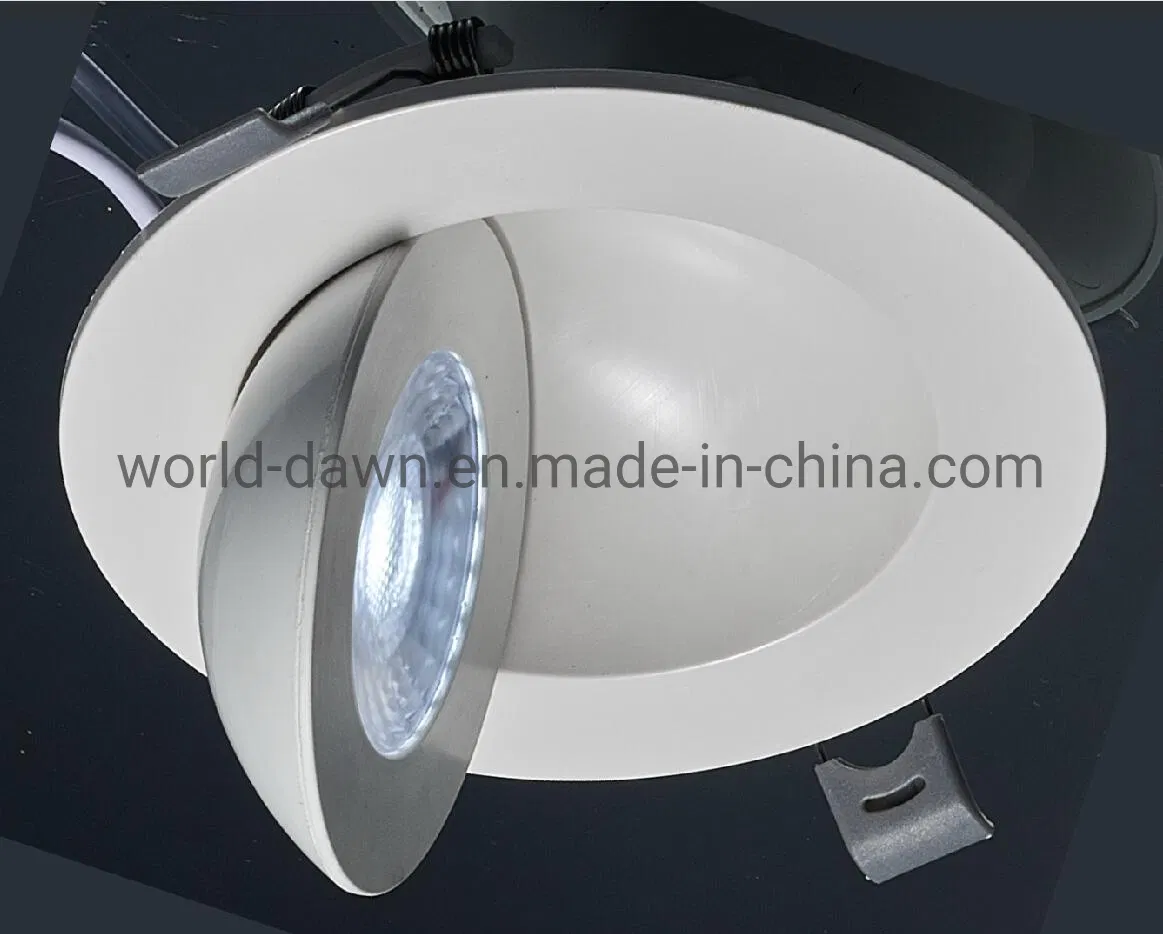

360-Degree Rotatable Panel adjustment.
Specification Details
Item No. Ring Diameter Hole Size Packing / CTN Details Color Temp LED Specs Power

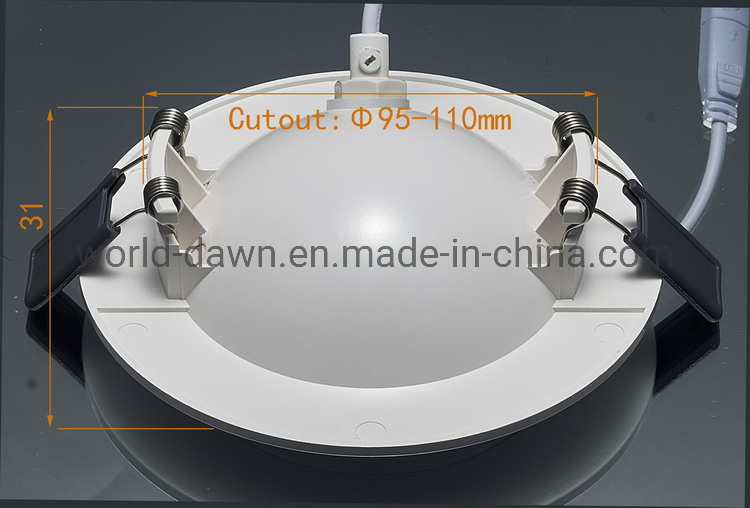

WD-GIM-LND1422-7W ¢120*31mm Φ95-110mm Inner CTN: 127*125*50mm
Outer CTN: L65*W26*H52cm
100pcs/ctn (NW: 16kg, GW: 17kg) 		2700K-6000K SMD2835 (16 pcs) 7W
WD-GIM-LND1422-12W ¢158*41mm Φ130-140mm Inner CTN: 165*163*60mm 2700K-6000K SMD2835 (24 pcs) 12W
Applications & Scenarios

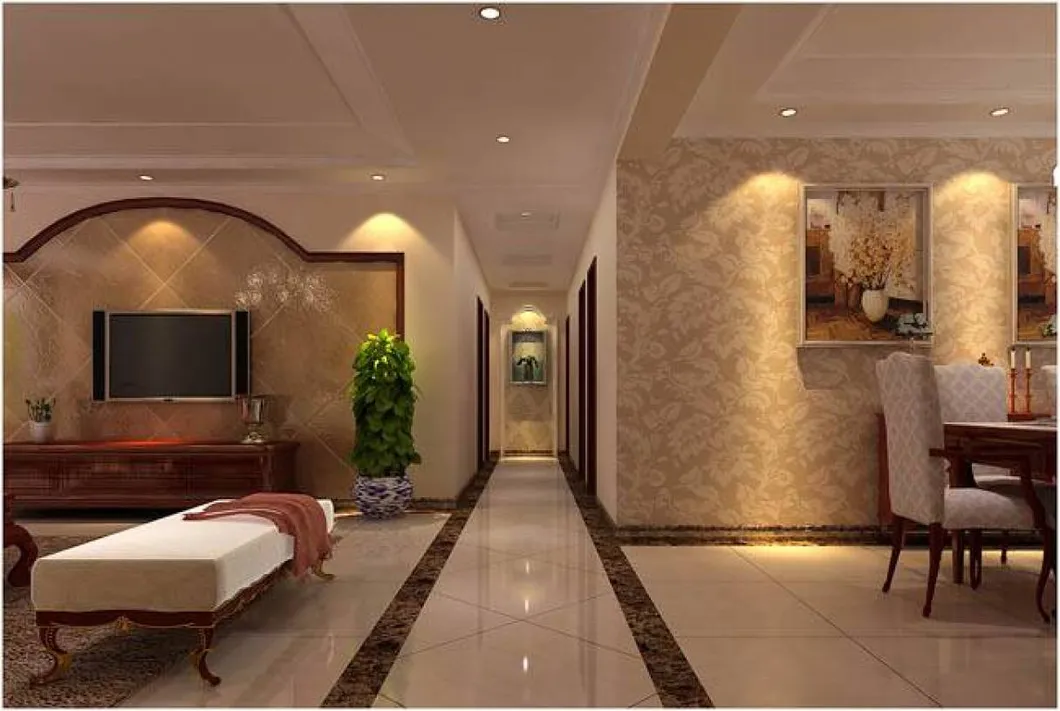

Recessed Downlight Application Example 1

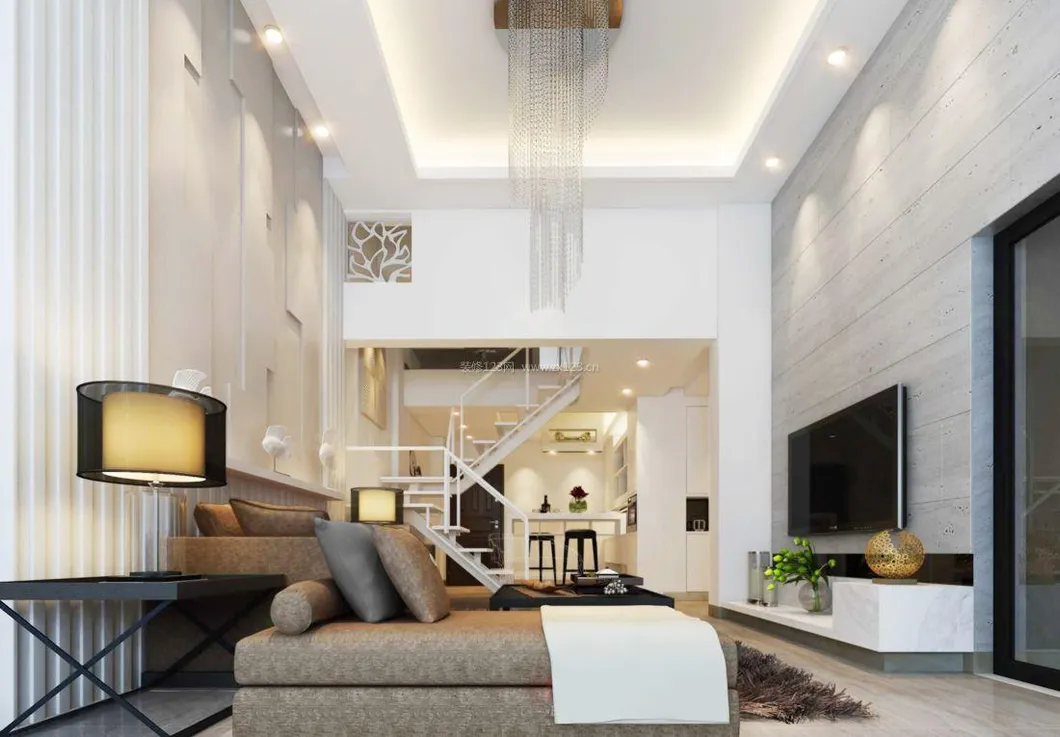

Gimbal Recessed Lamp Application Example 2
Frequently Asked Questions
Can this LED downlight be rotated?
Yes, this LED gimbal panel downlight features a 360-degree rotatable structure, allowing you to freely adjust the direction of the light.
What type of driver does this downlight use?
All models are equipped with an isolated 85-245V driver to ensure safe operation, stability, and delivery of full wattage power.
What are the available wattages and hole dimensions?
It comes in two options: 7W (requires a Φ95-110mm cutout with ¢120mm ring diameter) and 12W (requires a Φ130-140mm cutout with ¢158mm ring diameter).
What is the expected lifespan and warranty period?
This product has an estimated life span of up to 50,000 hours and includes a reliable 2-year warranty.
What applications are best suited for this light?
It is ideal for rooms, decoration setups, engineering projects, retail stores, showcases, and even tunnel lighting environments.
What is the beam angle and light efficacy of this downlight?
The light features a 45-degree beam angle, high luminous efficacy of ≥85 LM/W, and a Color Rendering Index (CRI) of ≥80.
