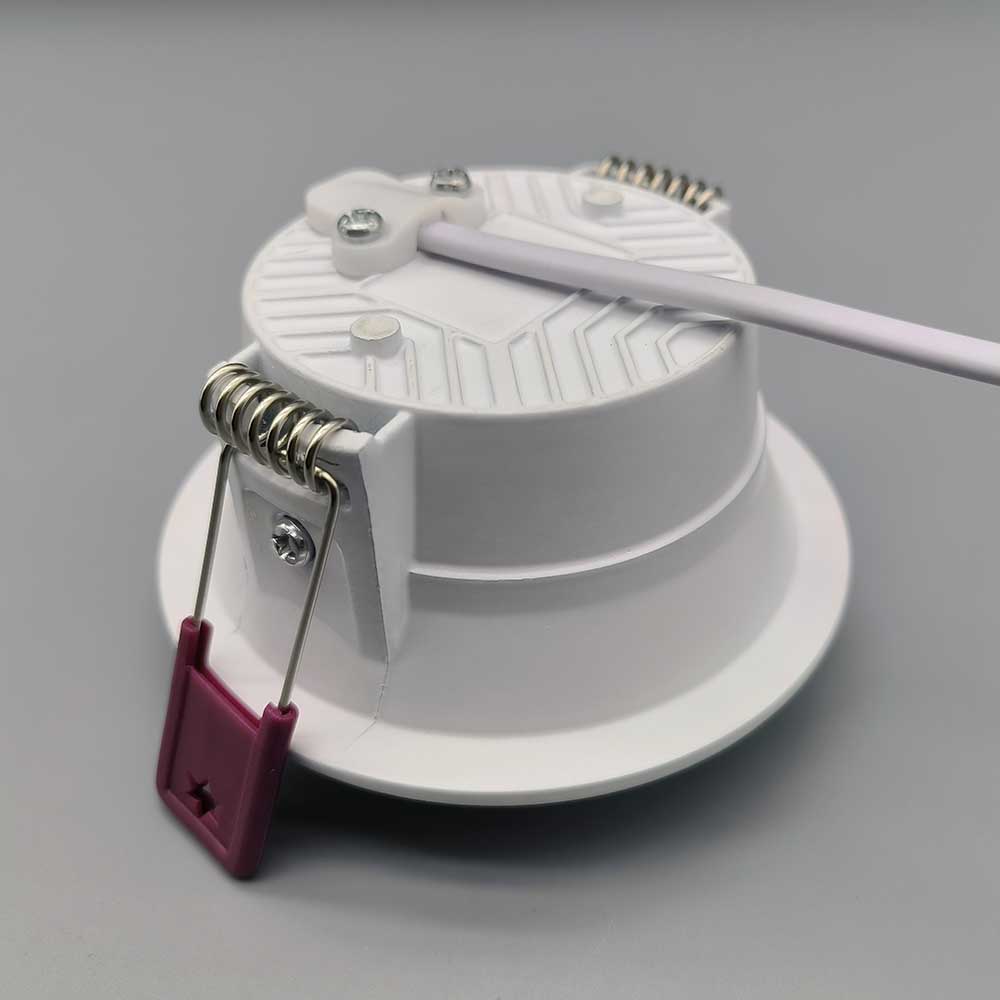

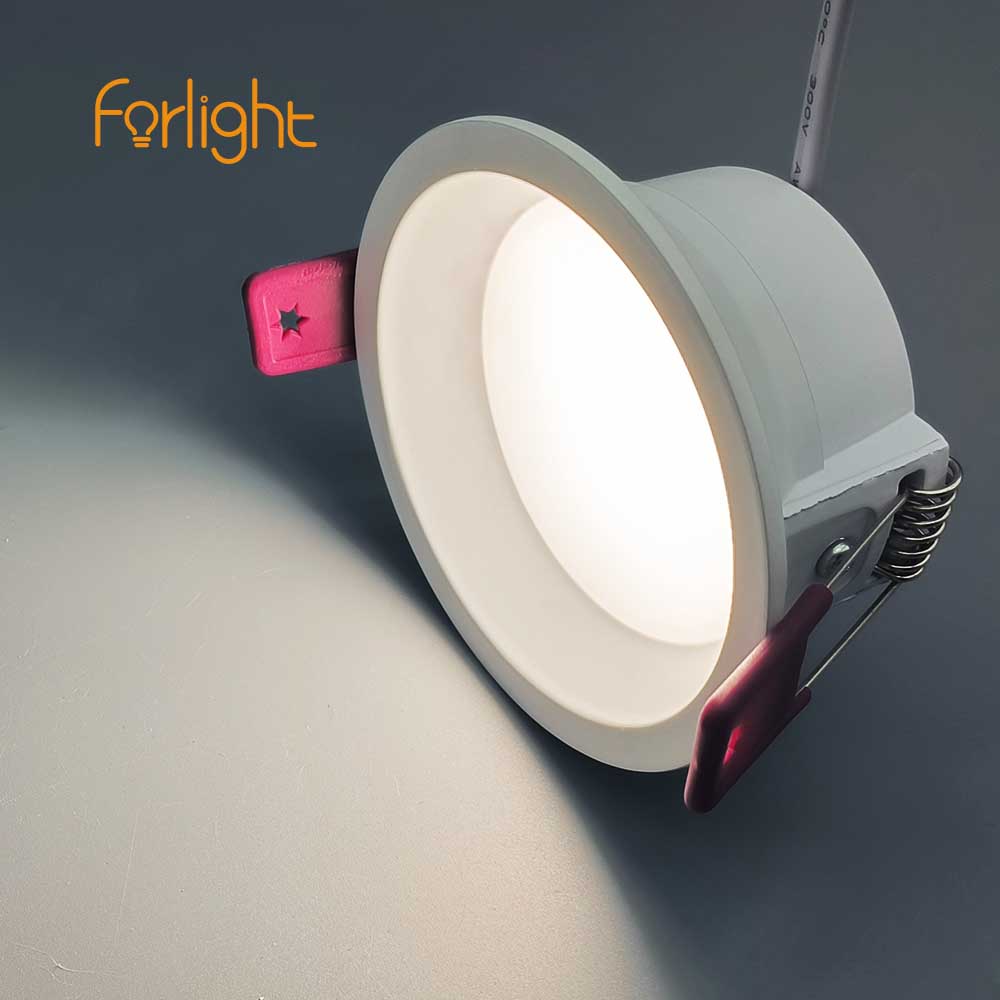

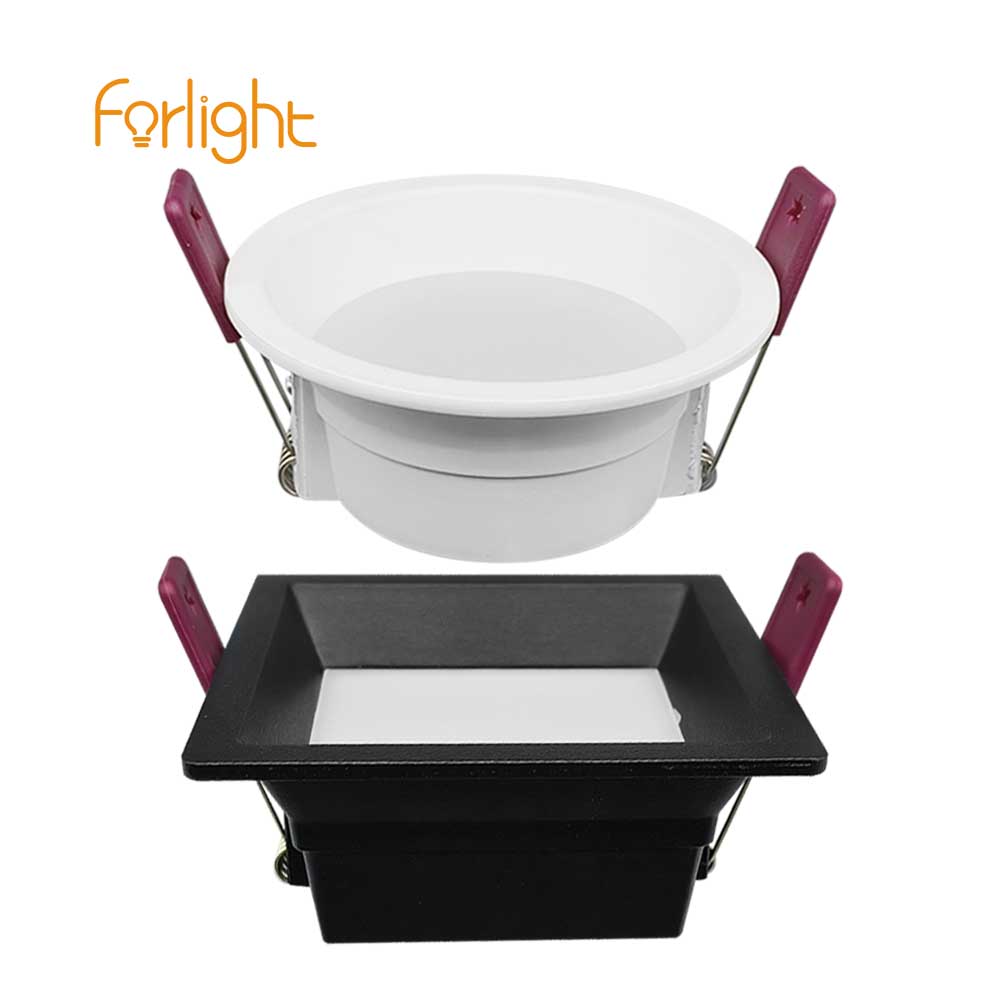

Anti Glare Aluminium Led Recessed 6w 7w 12w 15w 18w Led Downlight 18w 3000k Recessed And Trimless Down Light

Product Description

Product Parameter

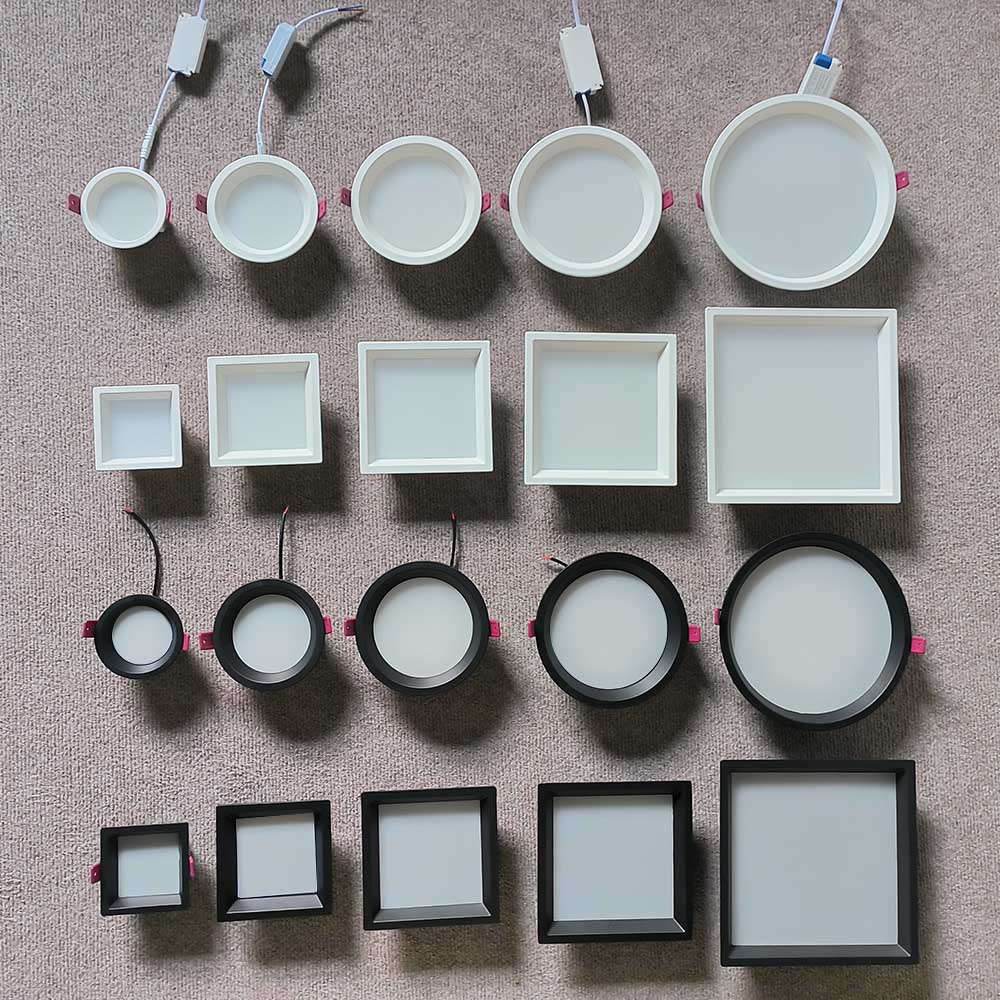

LED Downlight Size Specification Chart
Power Size (Round) Cut out (Round) Size (Square) Cut out (Square)
7W Φ90*H38mm Φ75mm 90*90*H38mm 75*75mm
12W/15W Φ120*H38mm Φ105mm 120*120*H38mm 105*105mm
18W Φ145*H38mm Φ130mm 145*145*H38mm 130*130mm
24W Φ175*H38mm Φ160mm 175*175*H38mm 160*160mm
30W Φ220*H38mm Φ205mm 220*220*H38mm 205*205mm
Technical Specifications
Product Name LED DOWN LIGHT
Power 7W / 12W / 15W / 18W / 24W / 30W
Voltage AC85-265V / 50/60Hz
Housing Material Die-casting Aluminium
Lumen 90 lm/w
CRI Ra > 80
PF 0.5
LED Chips Brand Sanan
Driver DOB / Isolation driver
Life Time 25,000 Hours
Warranty 2 years
Please contact us if you need customize lights.

Product Details

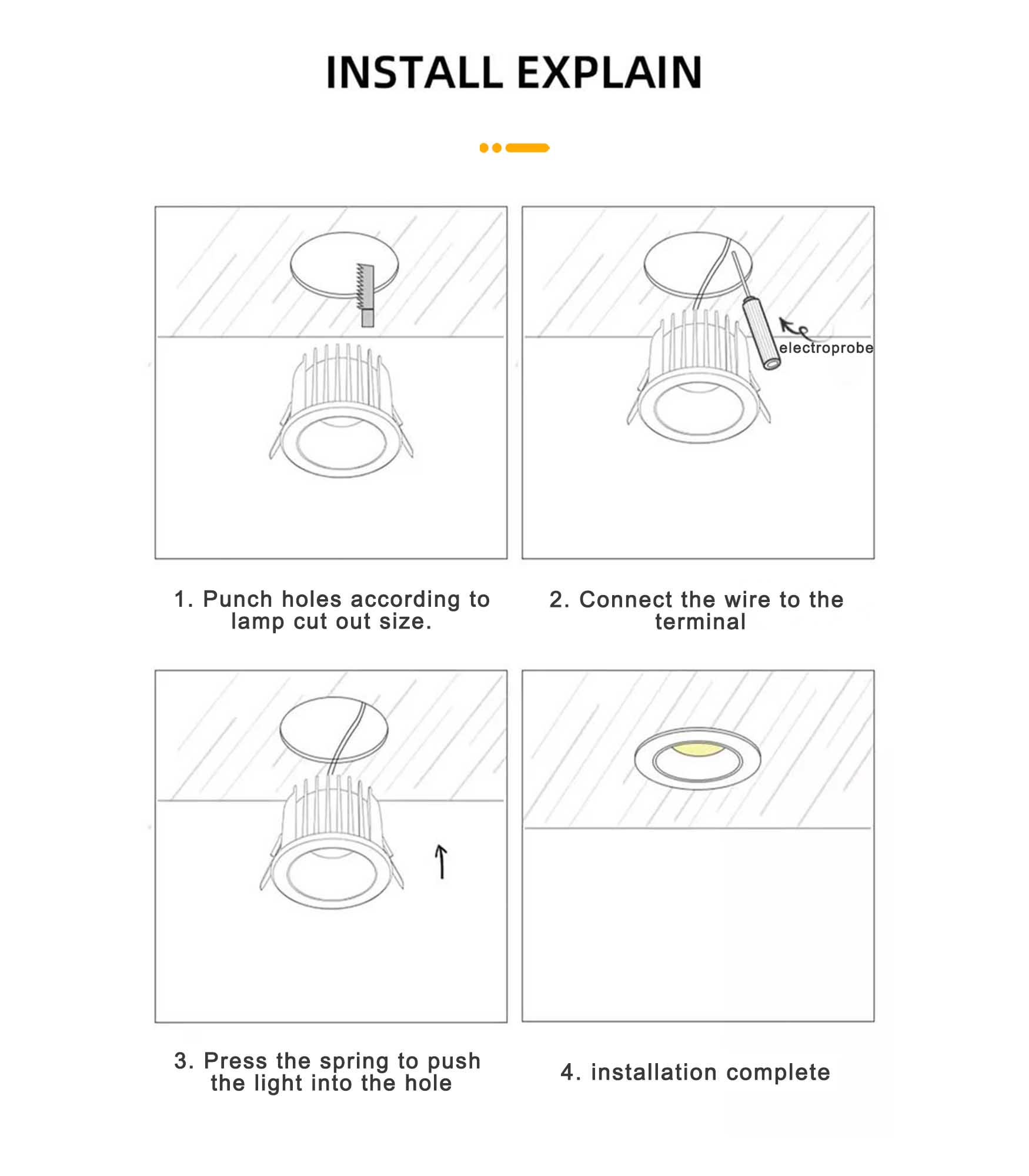

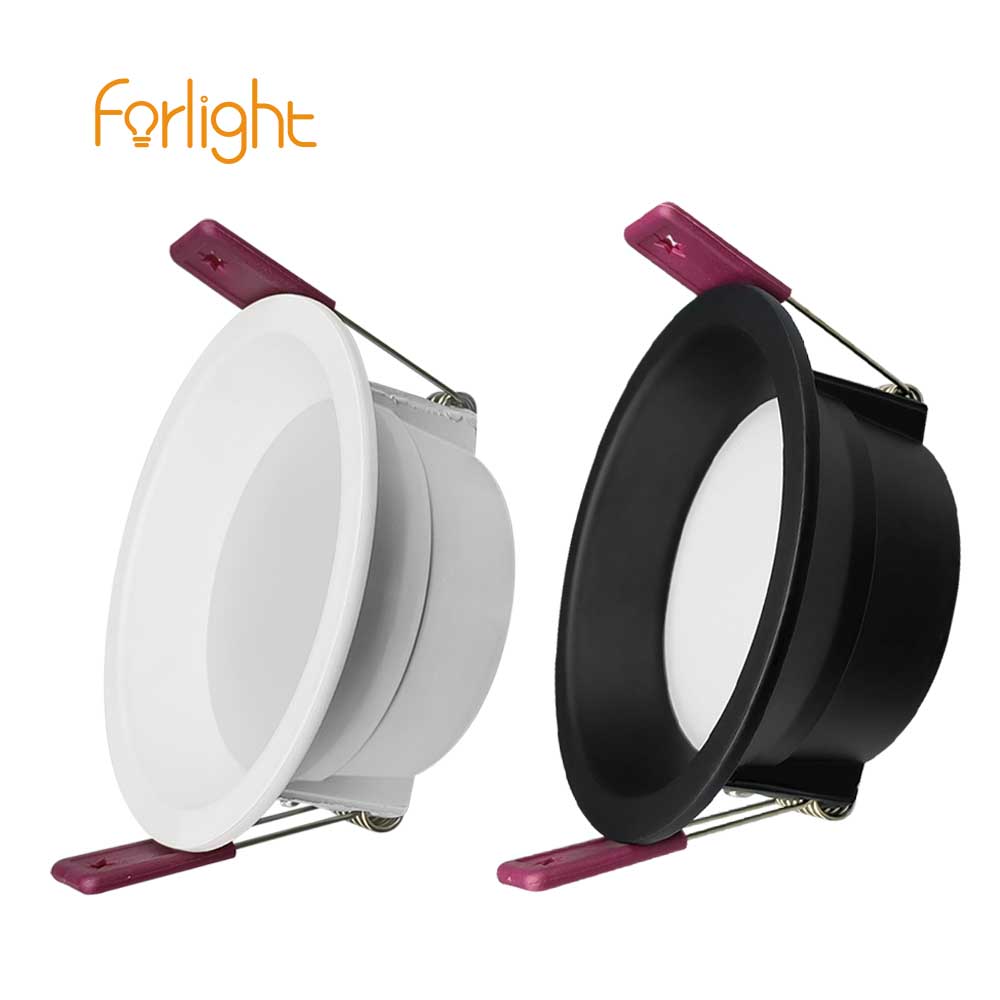

LED Downlight Installation Structure
LED Downlight Internal Drivers & Chips
LED Downlight Heat Dissipation Features
LED Downlight Light Beam Angle Test LED Downlight Color Temperature Showcase

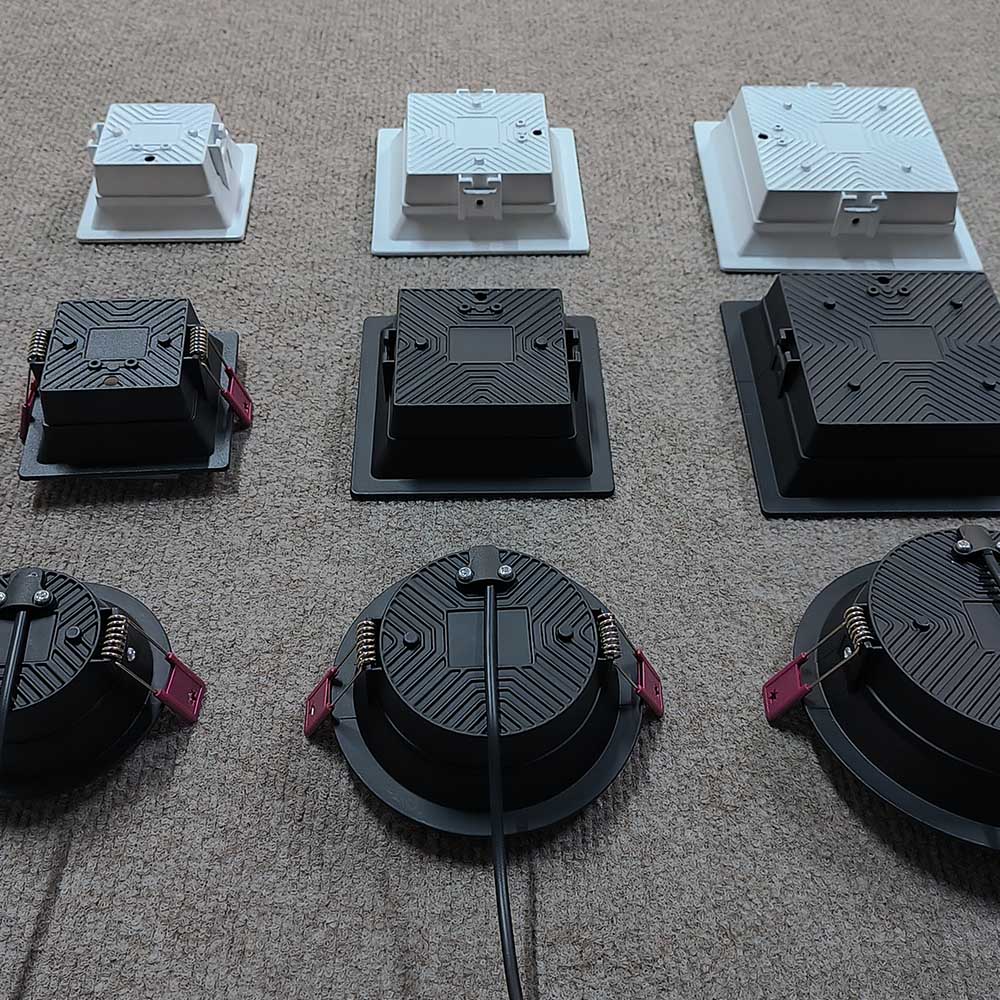

LED Downlight Dimensions and Frame Styles

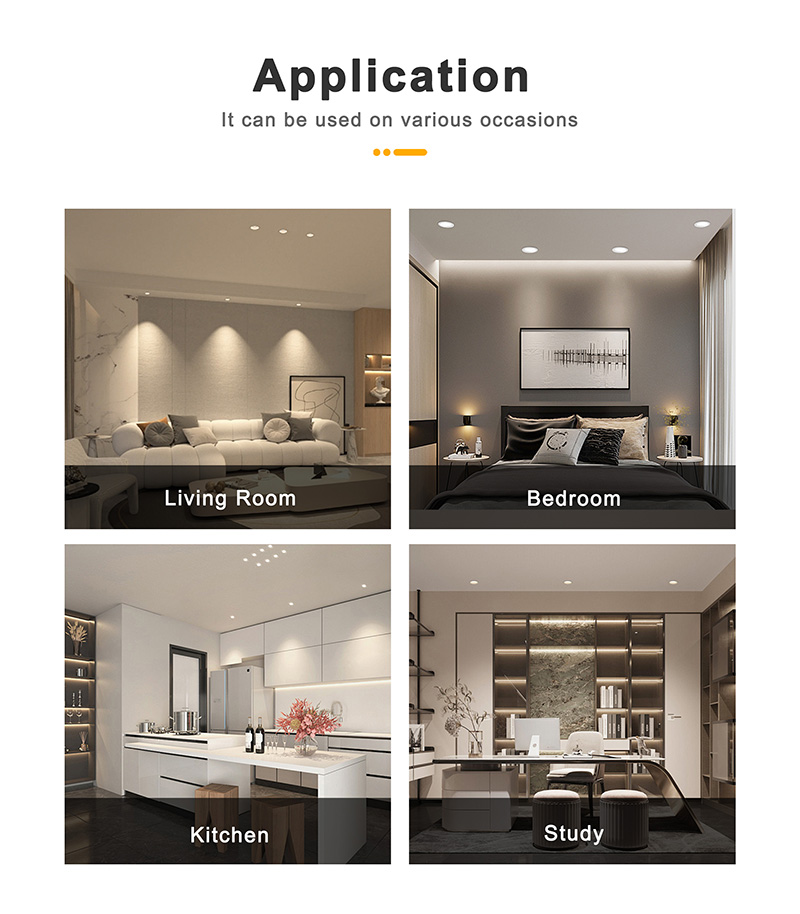

Recessed Downlight Ceiling Application Modern Interior Spot Lighting Layout

Company Profile

LED Lighting Factory Production Line
We have more than 10 years of experience in manufacturing LED lamps. Our main products are LED MR16, GU10, G5.3, spotlight down light, and other LED lights. We own a 1000㎡ standard industrial area and employ over 30 professional workers and 3 engineers to ensure all products maintain consistent, top-tier quality over the years.
We focus on developing high-quality LED products. We believe in building reliable partnerships with our global clients as a trusted supplier of LED light sources.
Factory QC Testing Area LED Assembly Workshop Component Ageing Testing Room Warehouse and Shipping Dock
Light Spectrum Testing Equipment Luminous Flux Testing sphere Product Showroom Displays

Package & Shipping

Packaging Standard and Shipping Methods

FAQ

Q1. Can I have a sample order?
Yes, we welcome sample orders to test and check product quality. Mixed samples are acceptable.
Q2. What about the production lead time?
Samples require 3-5 days, while bulk order production takes approximately 20-35 days, depending on the final order quantity.
Q3. Do you have any MOQ limitations?
1 piece for sample evaluation is available. The minimum order quantity (MOQ) for bulk orders is 1000 pieces per model.
Q4. How do you ship the goods and how long does it take to arrive?
We typically ship via DHL, UPS, FedEx, or TNT, taking about 5-9 days to arrive. Alternative air and sea shipping methods are also available, with sea freight taking around 30-45 days.
Q5. How do I proceed with an order?
Please state your requirements and the quantity you need to our customer service support team. We will process and issue the order for you to complete the payment.
Q6. Is it possible to print my custom logo on the product?
Yes. Please inform us formally prior to production and confirm the design layout based on our sample approval process.
