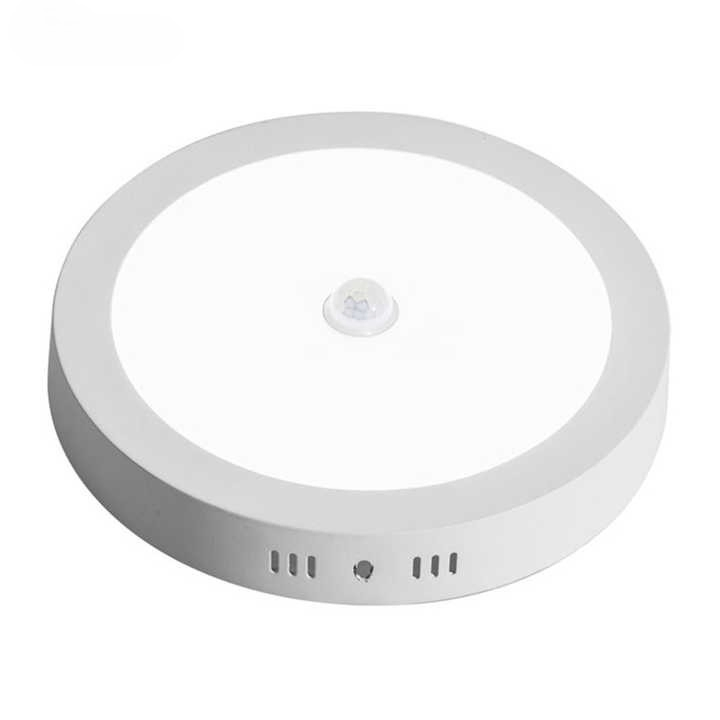

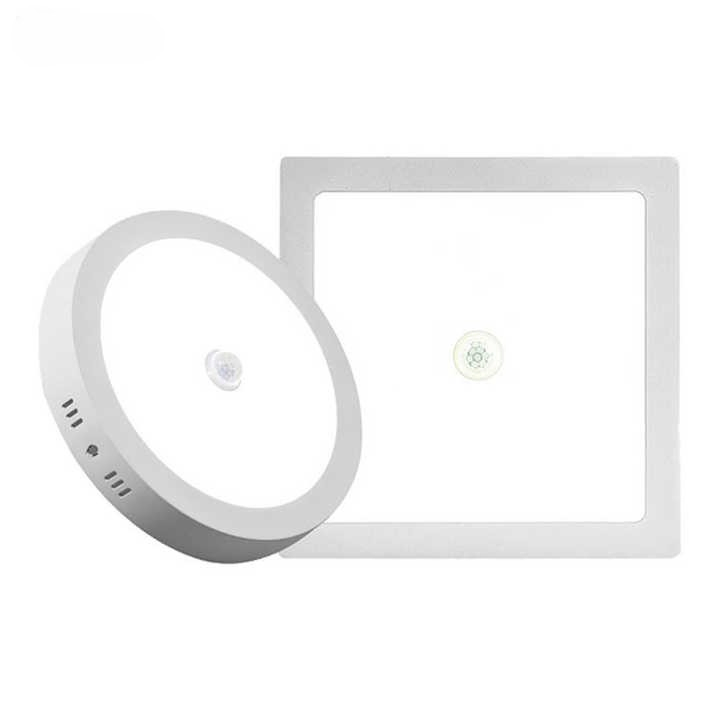

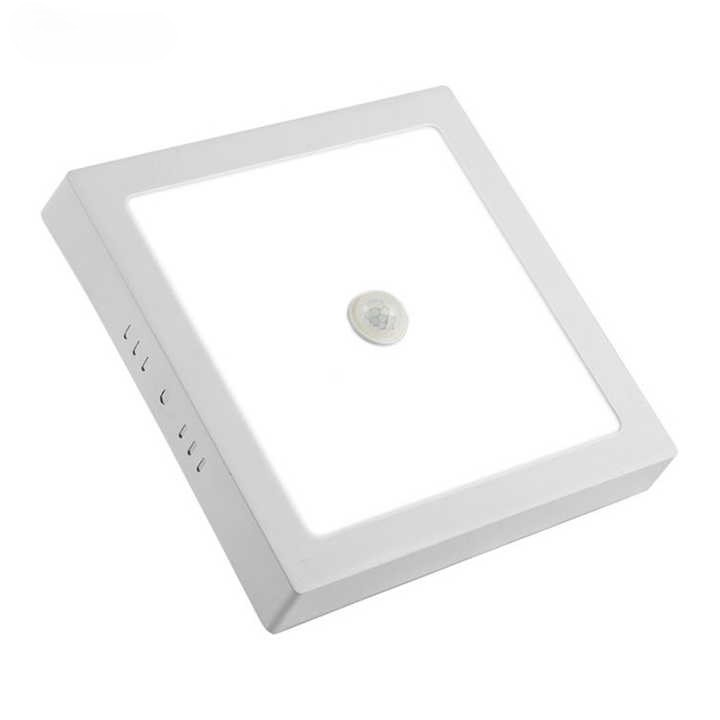

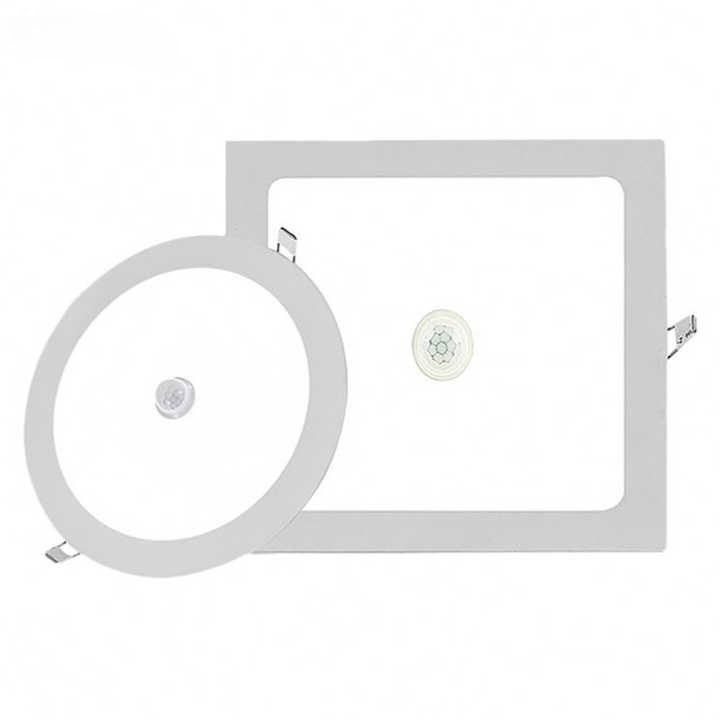

High Quality PIR Motion Sensor LED Ceiling Light 18W Trio Color Temperature Recessed Panel Downlight

Customization: Available
Light Source: LED
Light Source Type: SMD

Product Description

Overview Product Description Product Parameters Packaging & Shipping Company Profile FAQ
Basic Info.
Model NO.XH-PLB
Cover MaterialAcrylic
StyleModern simplism style
ShapeRound/Square
VoltageAC85-265V
With Light SourceWith Light Source
Beam Angle120
CertificationBV, CCC, CE, EMC, LVD, Saso

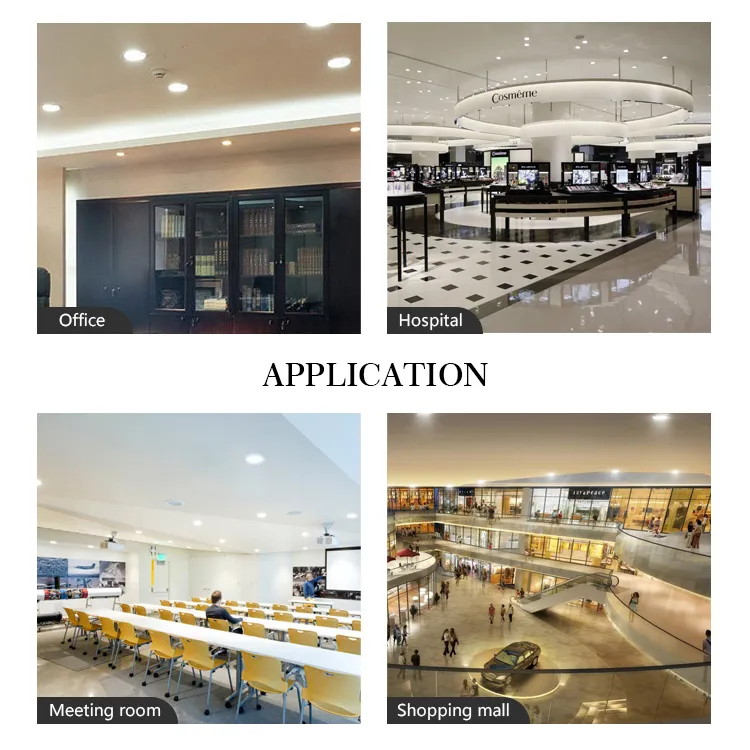

Applicable PlacesHotel,Home,Coffee,Office,Shopping Mall Library
FoldedFolded
Lighting SolutionsProject Installation
InstallationSurface
Place of OriginGuangdong, China
Warranty(Year)2-Year
ColorWhite Color
Lamp Body MaterialIron
MaterialAluminum Alloy
Model NumberXh-Dl11
FeatureLED Sensor
Brand NameOEM & ODM
IP RatingIP33
Input Voltage(V)85-265
Lamp Luminous Flux1440
Power18W
Product Description
Input Voltage(V): 85-265 | Power: 12/18/24W | Luminous Flux(lm): 810/1440/1800 | CRI (Ra>): 80 | Temperature: -20~50 | Lifetime: 25000h | IP Rating: IP33 | Back Cover: Iron | Cover Material: Aluminum | Frame Material: Aluminum | Light source: LED | LED Chips: SMD2835 | CCT: 3000K/4000/6500K | Beam angle: 120° | Light Color: natural / warm / cold | Installation: Surface

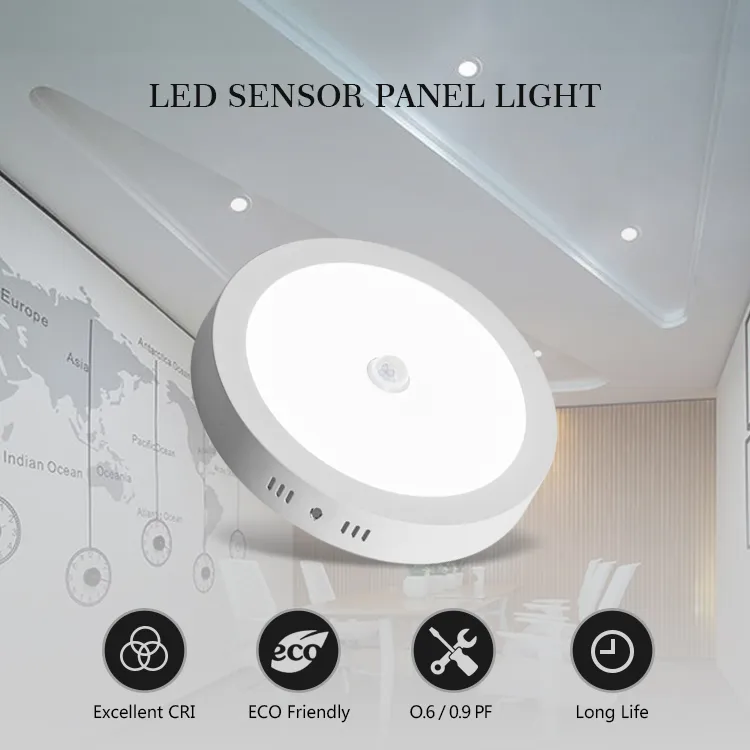

PIR Motion Sensor LED Ceiling Light Recessed Panel Downlight Detail 1

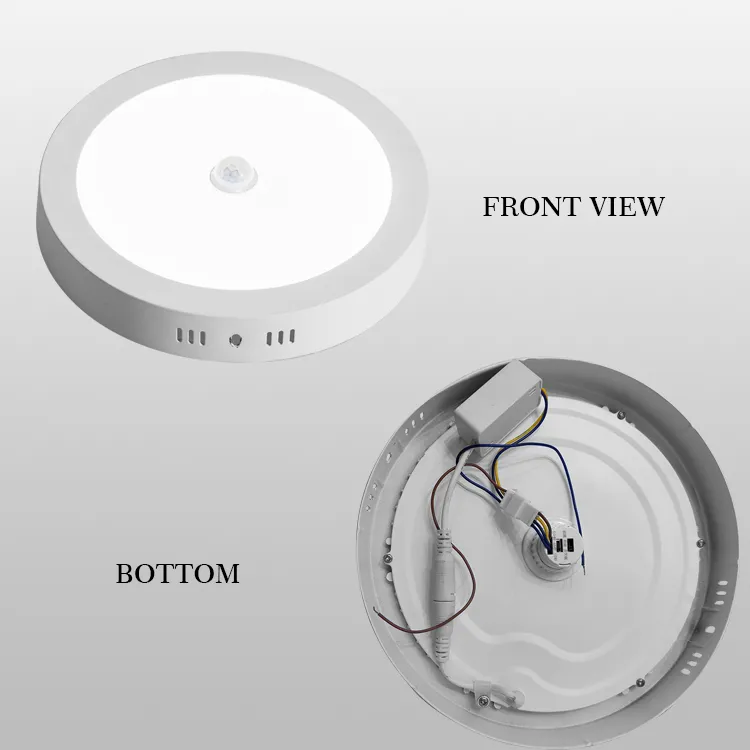

PIR Motion Sensor LED Ceiling Light Recessed Panel Downlight Detail 2
PIR Motion Sensor LED Ceiling Light Recessed Panel Downlight Detail 3
Product Parameters

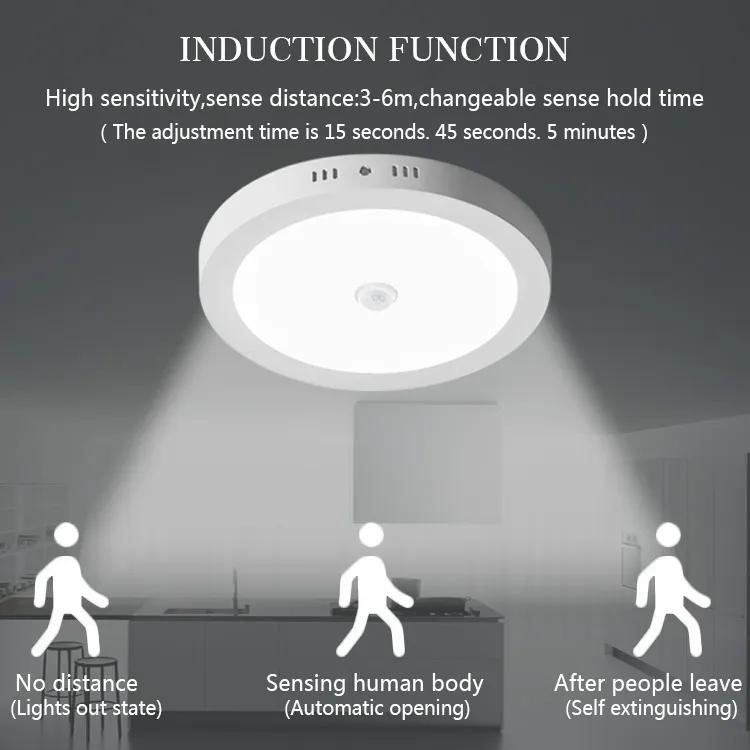

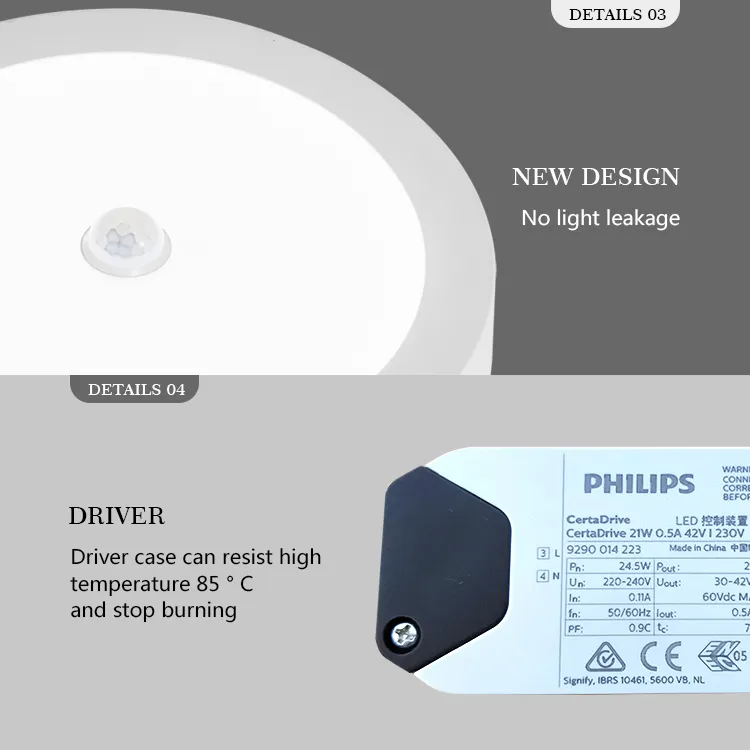

Experience unparalleled lighting with our cutting-edge product, offering high sensitivity with a sense distance of 3-6 meters and customizable sense hold time. Choose from three innovative delay modes: 15 seconds, 45 seconds, or 5 minutes, to suit any environment needs. Our new design features a comprehensive all-inclusive cover, ensuring zero light leakage. Crafted from premium quality aluminum, it provides excellent heat dissipation. This product is integrated with imported high-lumen copper 2835 chips, known for their high-temperature resistance and extended lifespan exceeding 25,000 hours. Its ultra-thin design optimizes space, making it an ideal choice for modern interiors. The edge-lit light technology ensures soft illumination with three reflections, protecting your eyes. The drive case is built to endure temperatures up to 85℃, ensuring it remains safe and non-flammable. Experience the fusion of technology and design with our advanced lighting solution.
Brand OEM / ODM Model XH-DL11
Input Voltage(V) 85-265 Power 12/18/24W
Luminous Flux(lm) 810/1440/1800 CRI (Ra>) 80
Temperature -20~50 Lifetime 25000h
IP Rating IP33 Back Cover Iron
Cover Material Aluminum Frame Material Aluminum
Light source LED LED Chips SMD2835
CCT 3000K/4000/6500K Beam angle 120°
Light Color natural / warm / cold Installation Surface
Led Sensor Panel Light Model Selection
Model Shape Installation Size Power Luminous Flux Lamp beads IP Rating
XH-DL11-12 Round Ceiling φ160mm 12W 810lm 60 IP33
XH-DL11-18 Round Ceiling φ210mm 18W 1440lm 90 IP33
XH-DL11-24 Round Ceiling φ285mm 24W 1800lm 120 IP33
XH-DL11-12 Square Ceiling 160*160mm 12W 810lm 60 IP33
XH-DL11-18 Square Ceiling 210*210mm 18W 1440lm 90 IP33
XH-DL11-24 Square Ceiling 285*285mm 24W 1800lm 120 IP33
XH-DL11-12 Round Recessed φ170mm 12W 810lm 60 IP33
XH-DL11-18 Round Recessed φ225mm 18W 1440lm 90 IP33
XH-DL11-24 Round Recessed φ300mm 24W 1800lm 120 IP33
XH-DL11-12 Square Recessed 170*170mm 12W 810lm 60 IP33
XH-DL11-18 Square Recessed 225*225mm 18W 1440lm 90 IP33
XH-DL11-24 Square Recessed 300*300mm 24W 1800lm 120 IP33
Our Products: Panel light, Downlight, Tube light, Batten light, Bulb light, Track light
MOQ: Small order can be acceptable
Packing: According to customer requirements
Delivery Time: Shipped in about 30 days after payment
Supply Ability: 30000 pieces per Month
Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash
Shipping way: Sea or air transportation; Port of Loading: Guangzhou/Shenzhen
LED Sensor Panel Light Application Scene 1

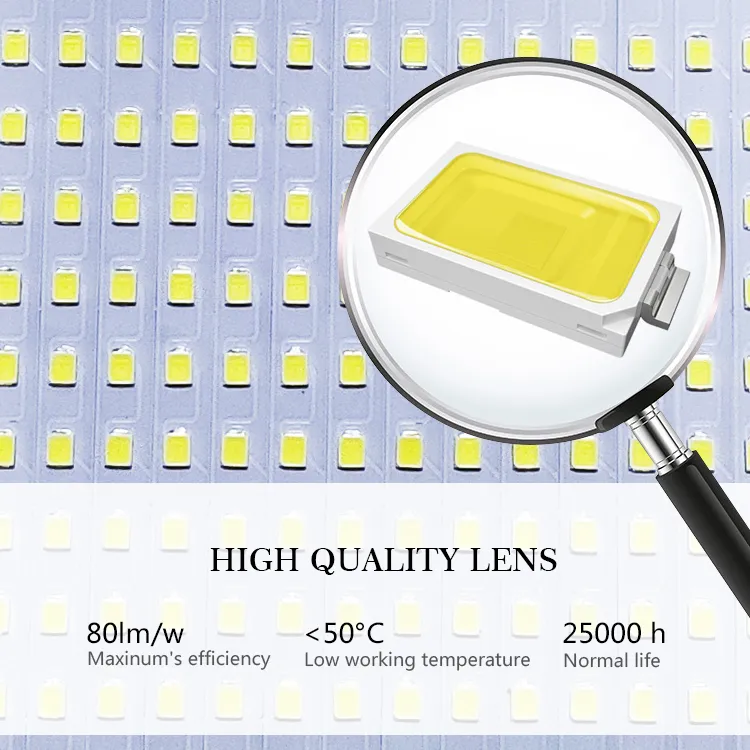

LED Sensor Panel Light Application Scene 2

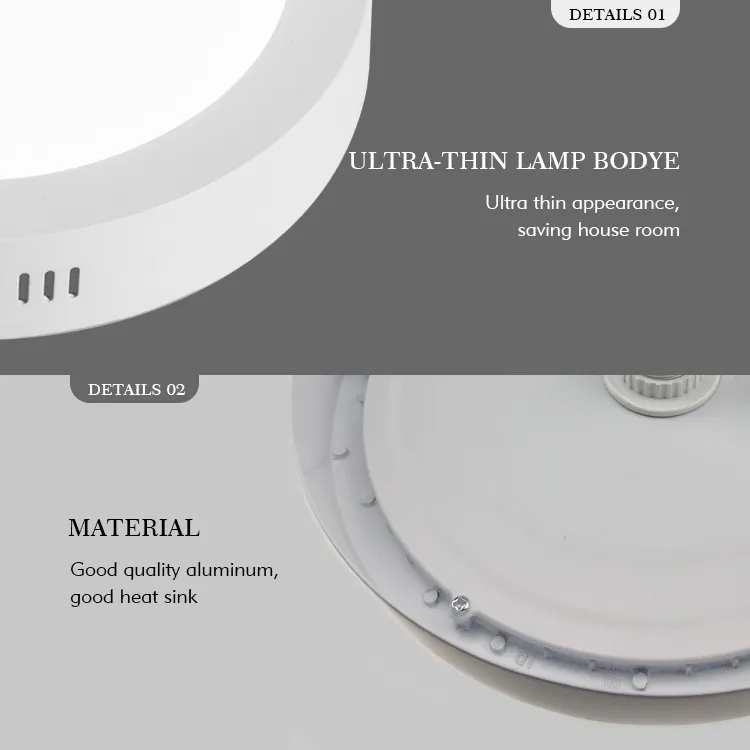

LED Sensor Panel Light Application Scene 3
LED Panel Light structure diagram
LED Sensor Panel Light functional specifications

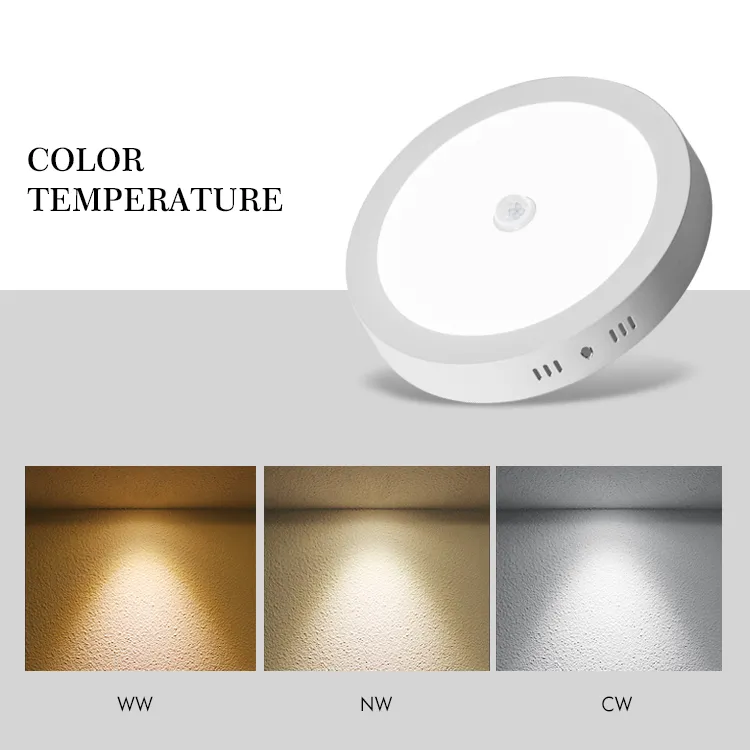

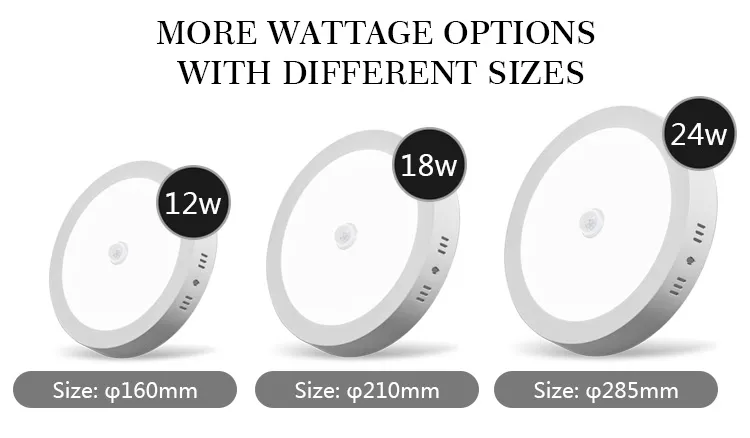

Color temperature adjustments overview
Technical specifications layout and installation guide
Packaging & Shipping

Our Products: Panel lights, Downlights, Tube lights, Batten lights, Bulb lights, Track lights

MOQ: We welcome small orders

Packing: Tailored to customer needs

Delivery Time: Expect shipment in approximately 30 days post-payment

Supply Ability: 30,000 pieces monthly

Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash

Shipping Method: Choose from sea or air transportation (Port of Loading: Guangzhou/Shenzhen)

We ensure that our products are packed with utmost care and delivered promptly to meet your requirements. Our robust supply chain can efficiently handle a capacity of 30,000 pieces every month, ensuring that both small and large orders are met with precision.

Packaging Box and Loading Details
Company Profile
We proudly hold a legacy of 8 years as a brand leader in China. Our commitment to delivering diverse LED lights solutions at unbeatable prices, superior quality, and exceptional service standards has established us as a trusted name in the LED marketplace.

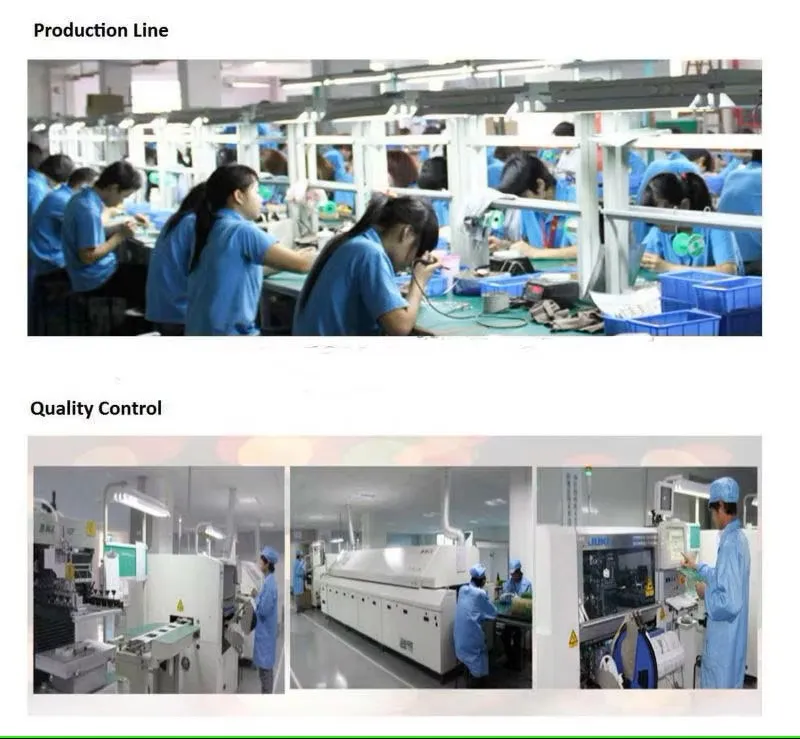

Factory interior production line

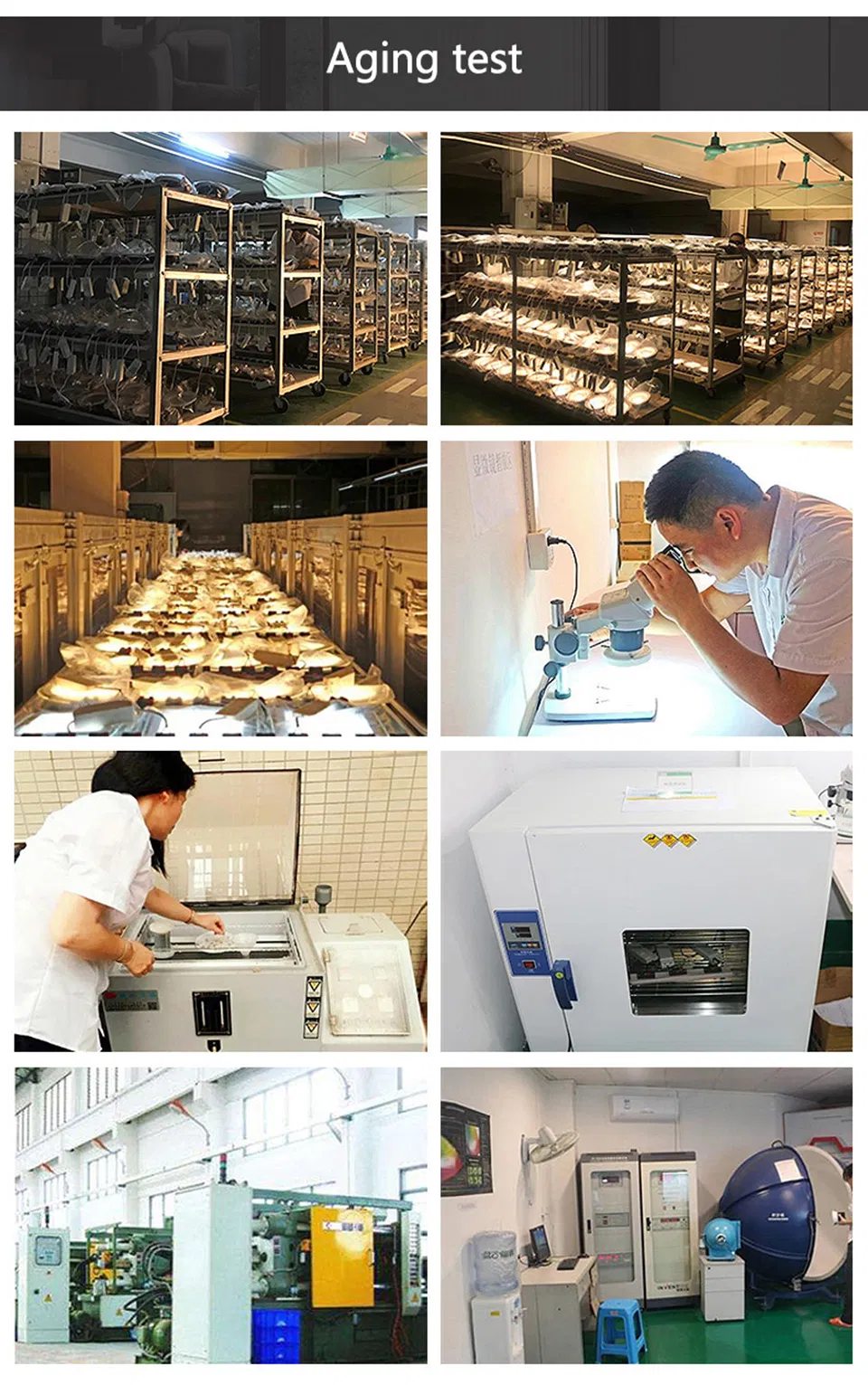

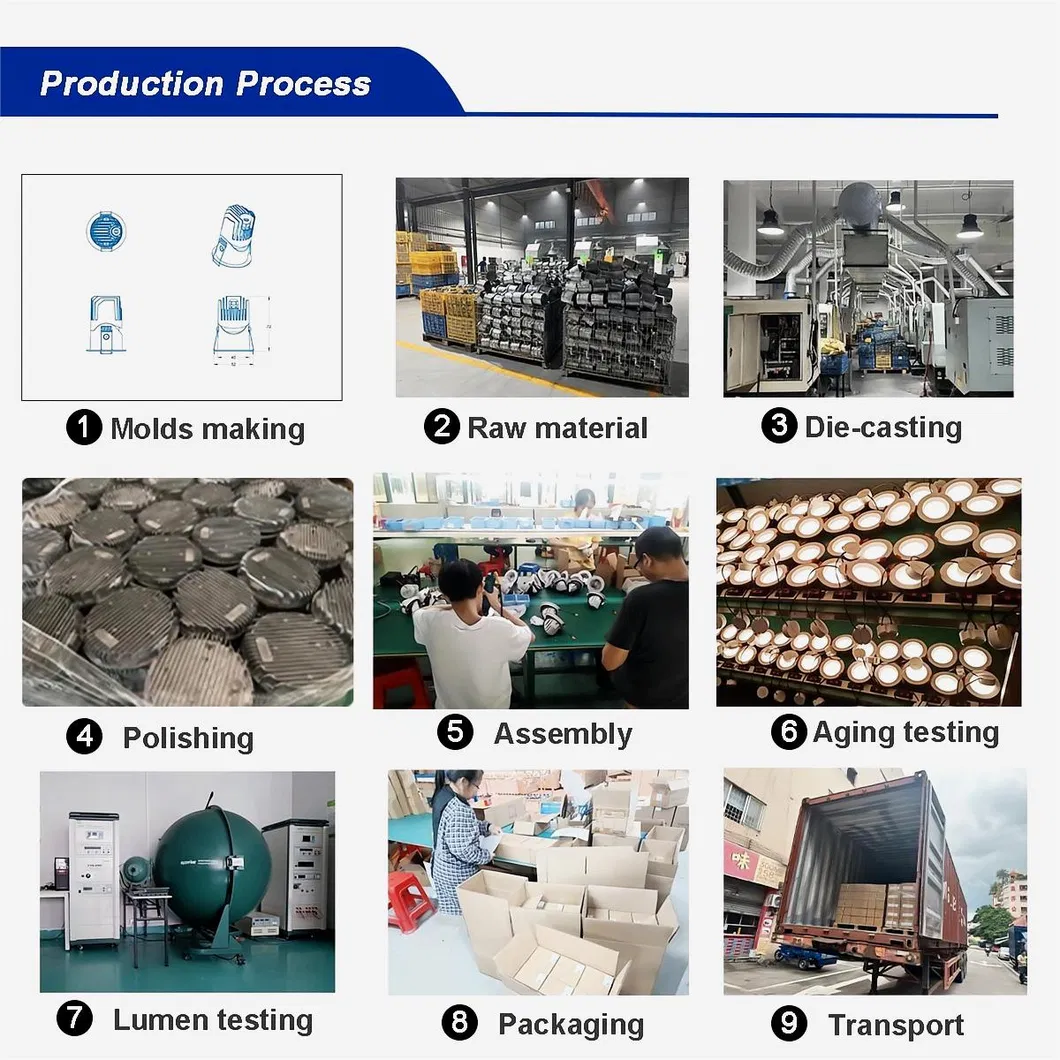

Quality testing department
Raw material inventory storage

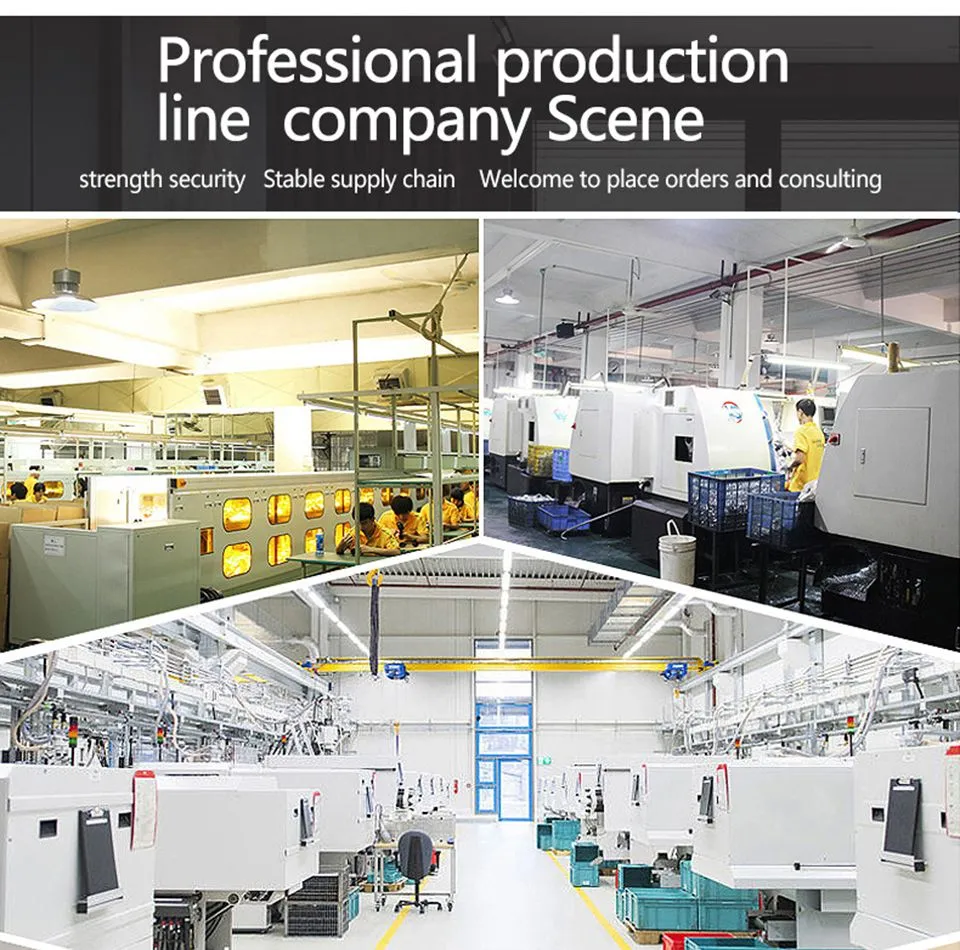

Showroom product display shelf
FAQ
Q1: Wonder if you accept small orders?
A1: Yes, we accept small orders. Please feel free to contact us. In order to provide better service and give our clients more convenience, we welcome small orders.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own shipping forwarder, we can assist you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders, just contact us and share your design. We will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms?
A4: By T/T, LC AT SIGHT, 30% deposit in advance, 70% balanced before shipment.
Q5: How can I place the order?
A5: Sign the PI, pay the deposit, then we will arrange the production for you. After finished the production, we need you pay balance. Finally, we will ship the goods.
Q6: When can I get the quotation?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please call us or tell us in your mail, so that we could regard your inquiry priority.
