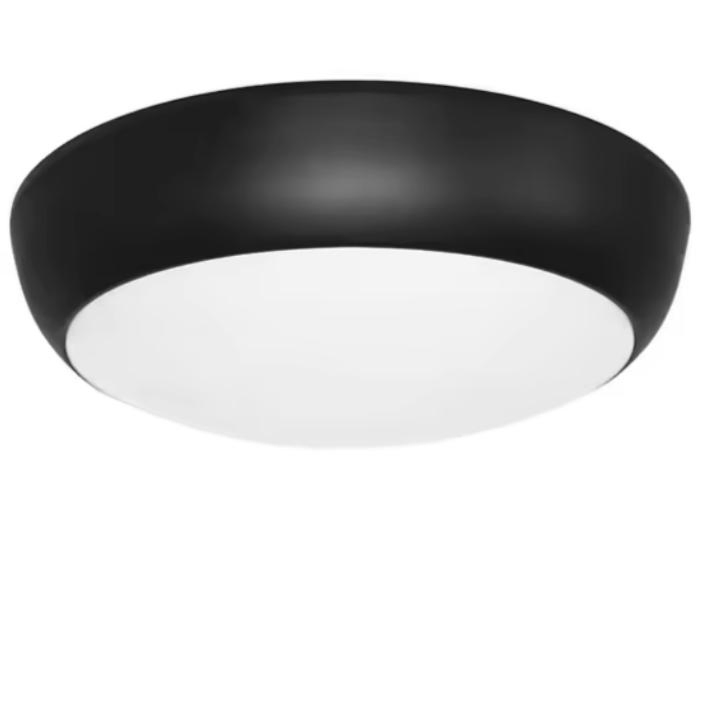

LED Garden Light IP65 Waterproof Outdoor PIR Motion Sensor Wall Light Outdoor Wall Lamps Ceiling Lights

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info
Model NO. SLCLC-18W
Style European
Shape Round
Shade Type Plastic
Usage Room, Study, Restaurant, Aisle, living room, balcony, TOILET, Kitchen, Conference Room
IP Rating IP66
Install Style Surface Mounted
Certification CCC, CE, CQC, C-tick, EMC, ETL, FDA, GS, LVD, REACH, RoHS, SAA
Voltage 220V
Beam Angle 60°
Input Voltage 220V-240V
LEDs Epistar SMD2835
Watt 10W 15W 22W
Size Diameter 300mm
CCT 3000K 4000K 6000K
Sensor Micwave Sensor
Emergency Kit 3 Hours
Lux 3 Steps
Lumens 100lm/W
IP Grade IP66
Ik Grade Ik10
Warranty 5 Years
Driver Non-Isolated Driver
Transport Package CTN
Specification SLCL09
Origin China
HS Code 94054090
Production Capacity 100000PCS/Month
Packaging & Delivery
Package Size 33.00cm * 23.00cm * 20.00cm
Package Gross Weight 1.000kg
Product Description

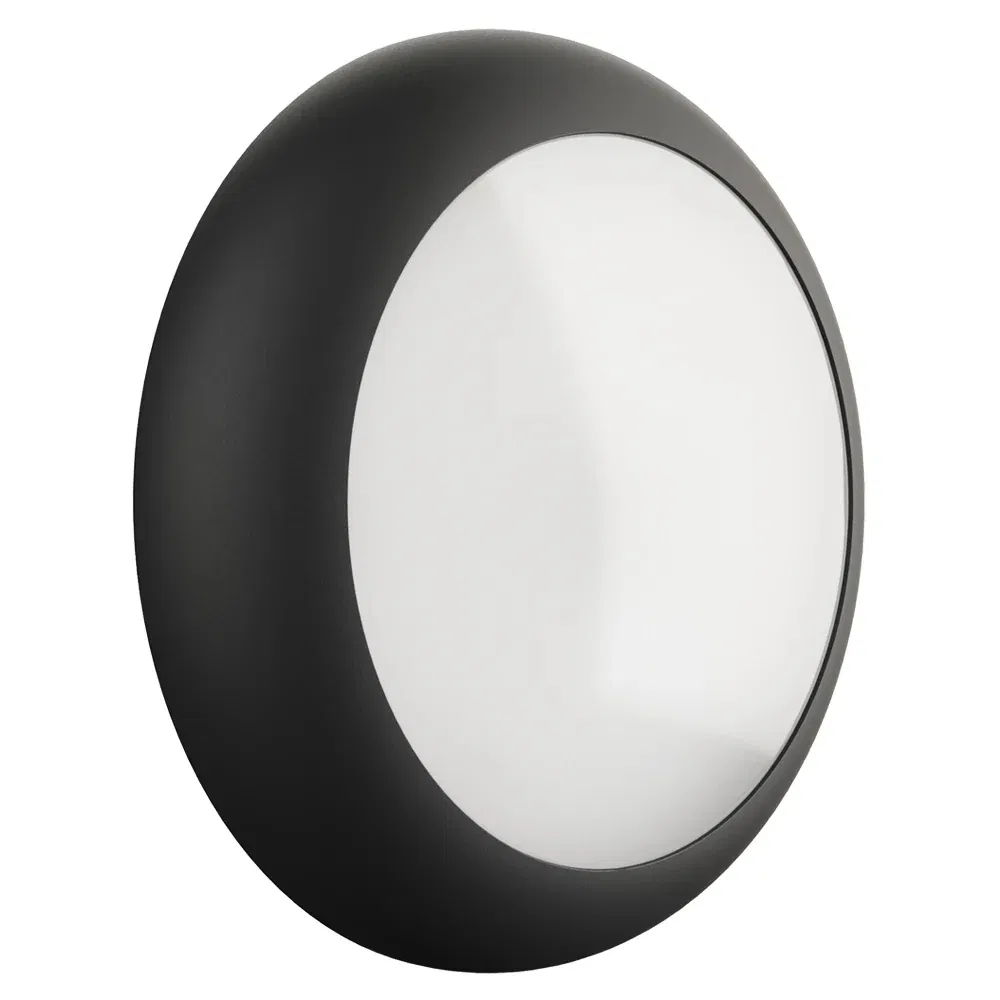

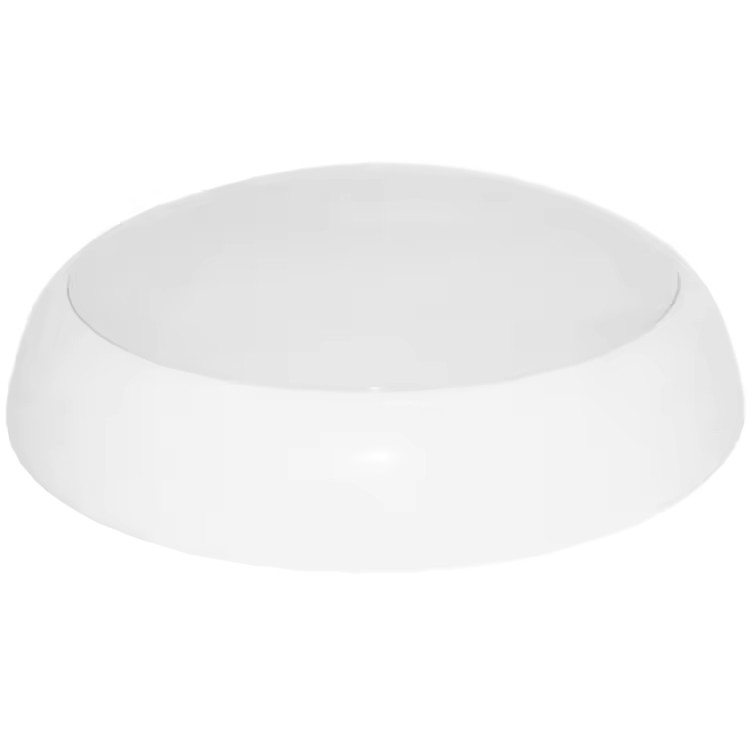

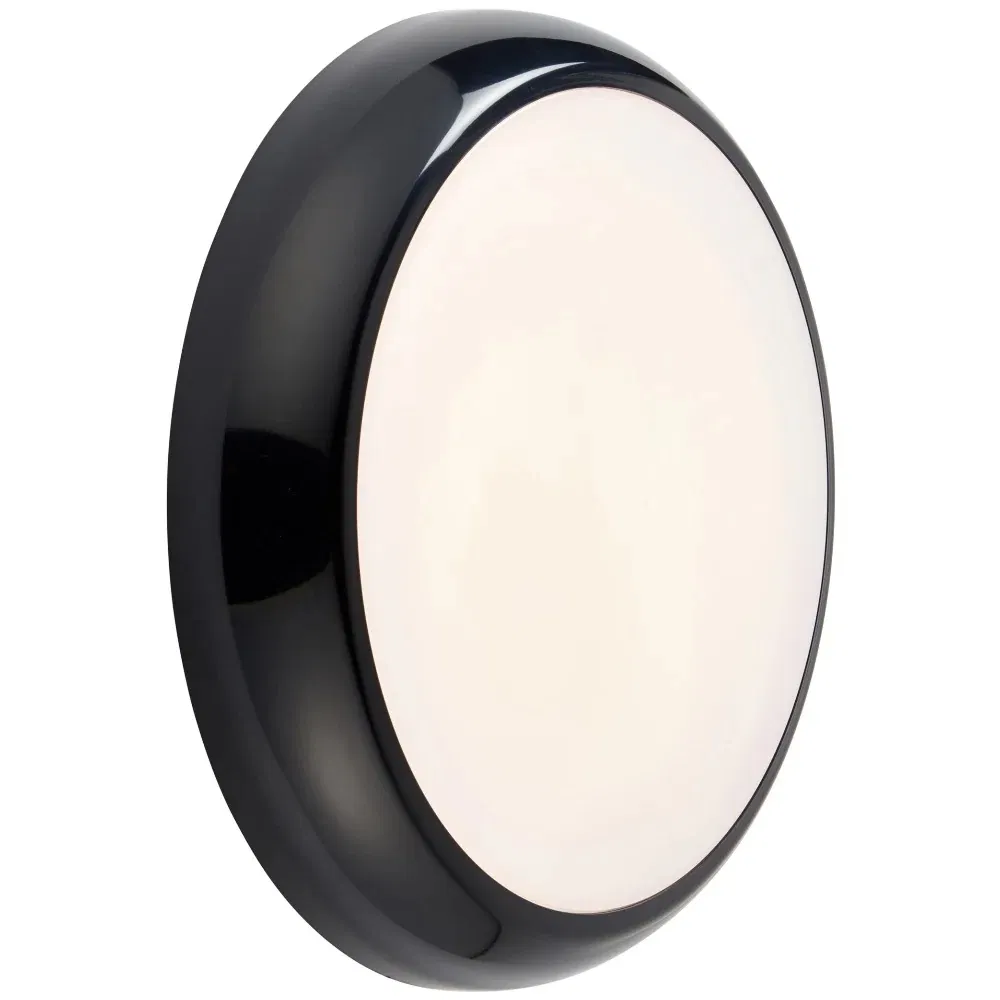

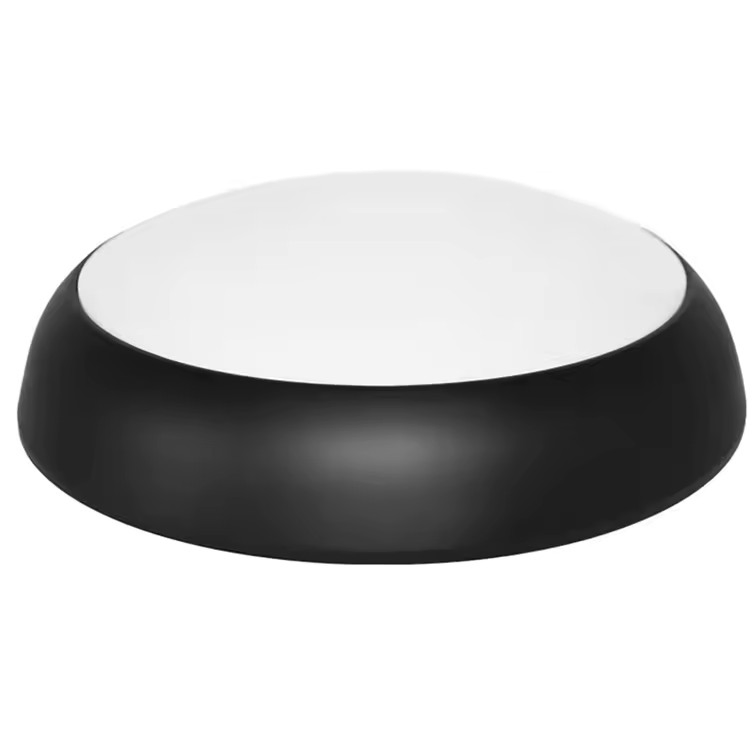

LED Garden Light IP65 Waterproof Outdoor PIR Motion Sensor Wall Light Outdoor Wall Lamps Ceiling Lights
Features
  • Energy efficient LED
  • IP66 weatherproof rating with insect resistant seal
  • IK10 vandal proof rating

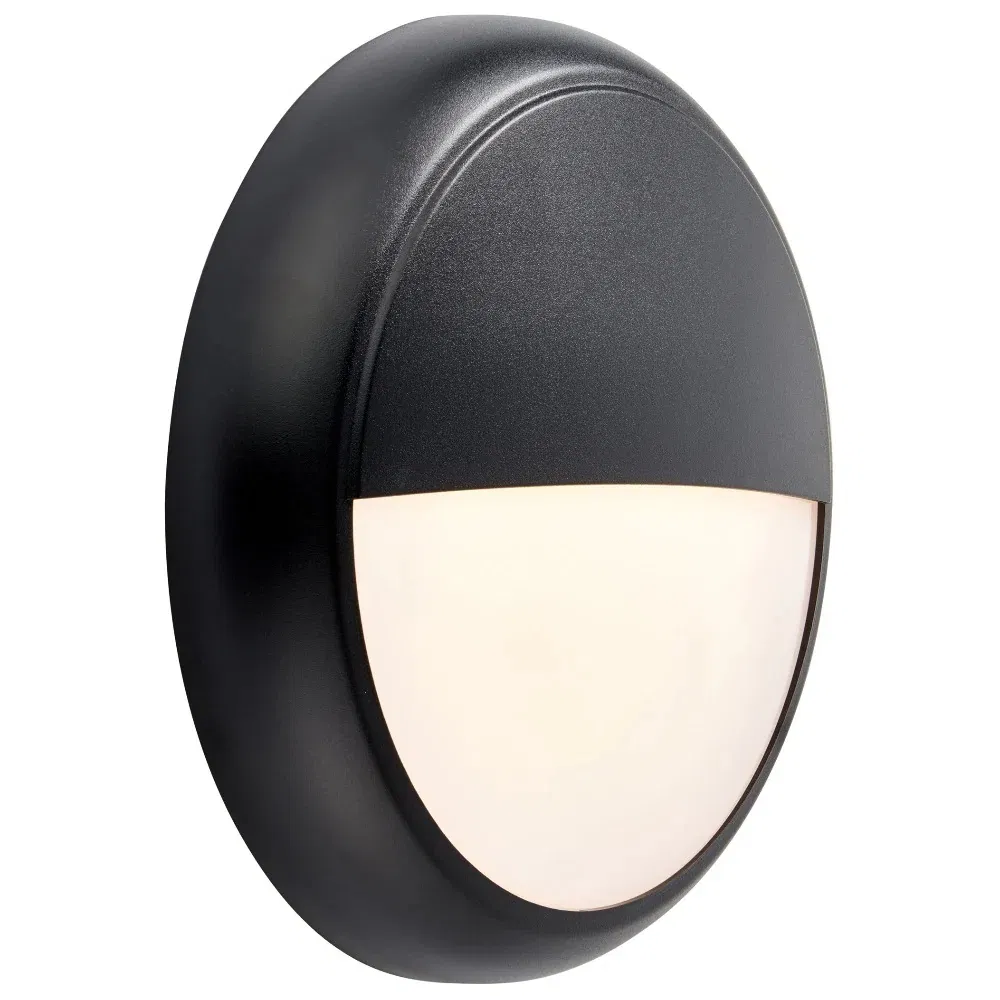

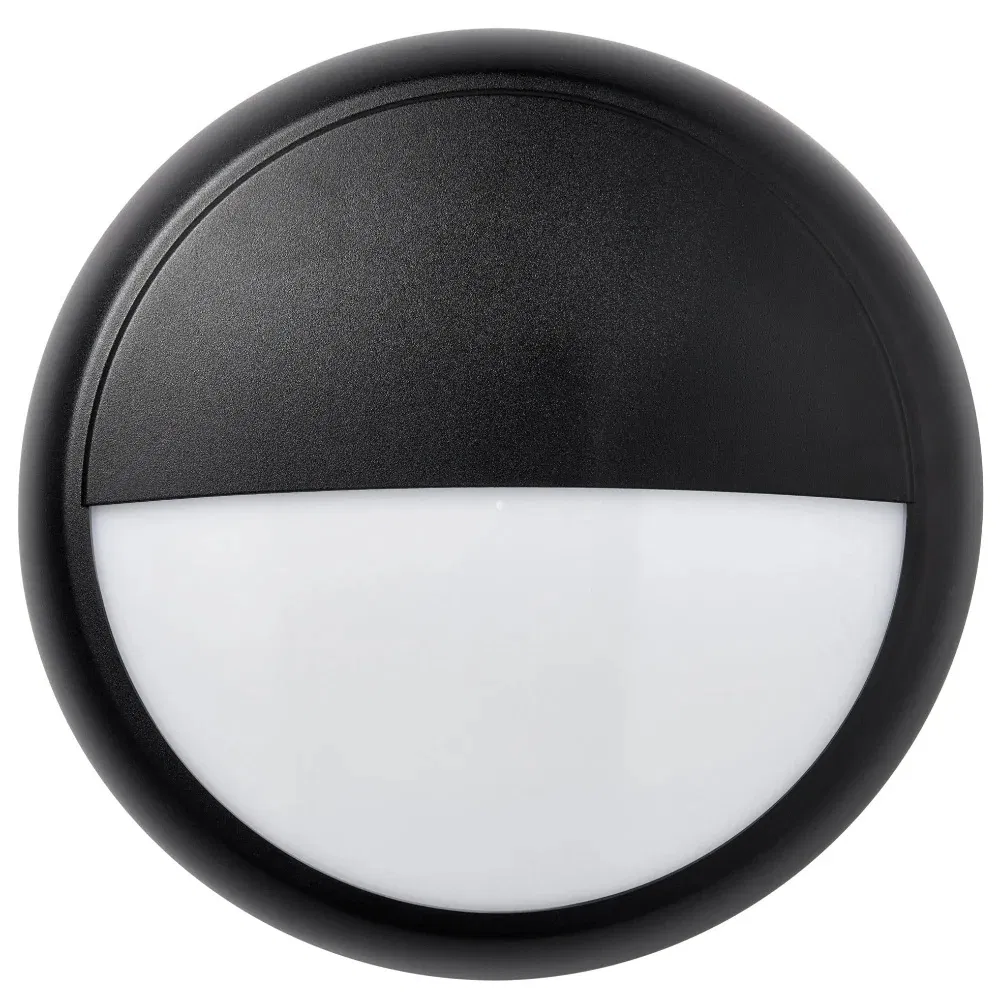

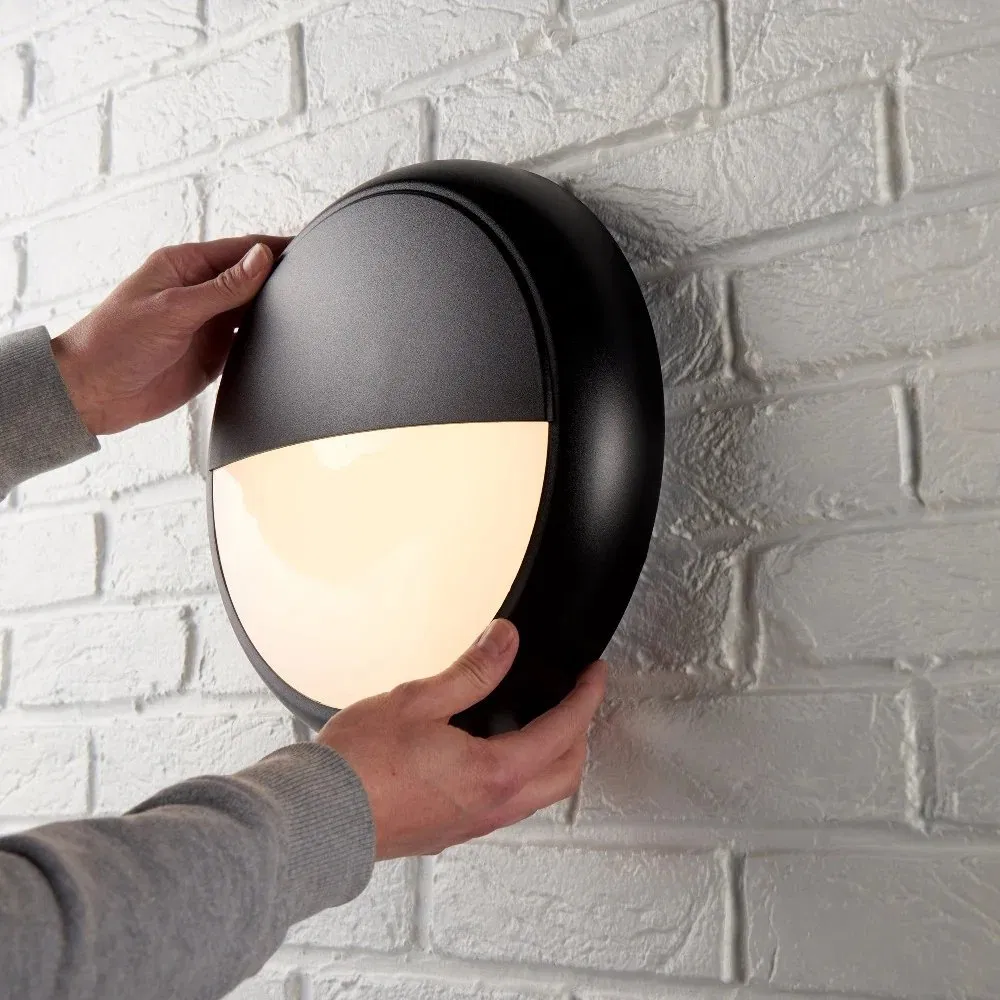

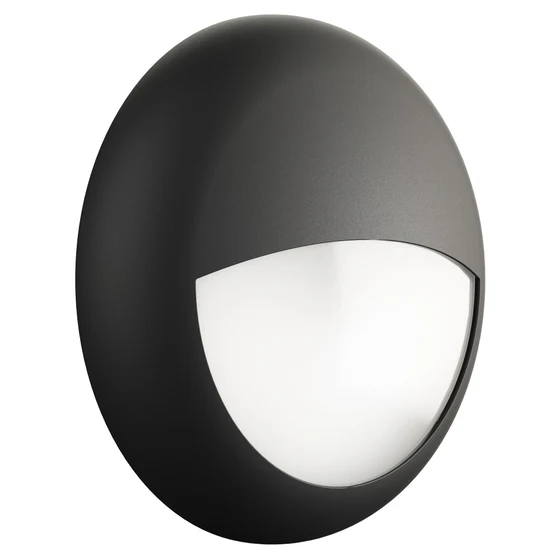

  • Supplied with eyelid trim option
  • Tri-CCT selectable
Mechanical
Adjustability
Fixed
Body Material
Polycarbonate
Diffuser Material
Polycarbonate
Fitting Colour
Black
IK Rating
IK10
Installation Type
Wall or Ceiling
IP Rating
IP66
Electrical
Electrical Rating
Class II
Input Current
0.07 A
Input Frequency
50 Hz
Input Voltage
230Vac
Switch Type
Inline
System Max Wattage
12 W / 15W / 22W
Working Temp Range
-20 to 45 °C
Lamp Specification
CCT Configuration
TRI-CCT
CRI
>80
System Efficiency
100 lm/W
LED Lifetime
>54000 hrs
Colour Temperature
  • Warm White (3000K) - 1125 lm
  • Cool White (4000K) - 1170 lm
  • DayLight (5700K) - 1150 lm
  • Warm White (3000K Eyelid) - 670 lm
  • Cool White (4000K Eyelid) - 700 lm
  • DayLight (5700K Eyelid) - 685 lm

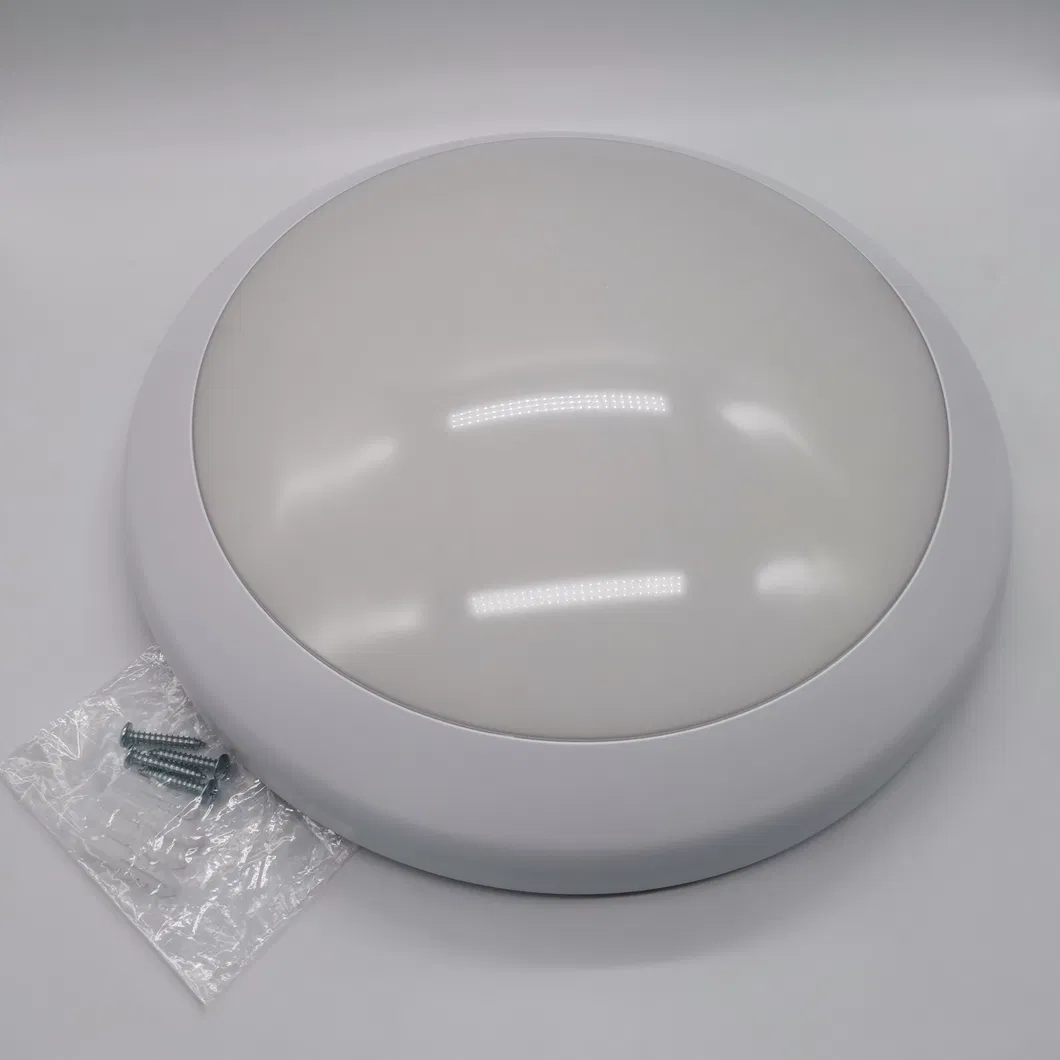

Lighting Details & Pictures

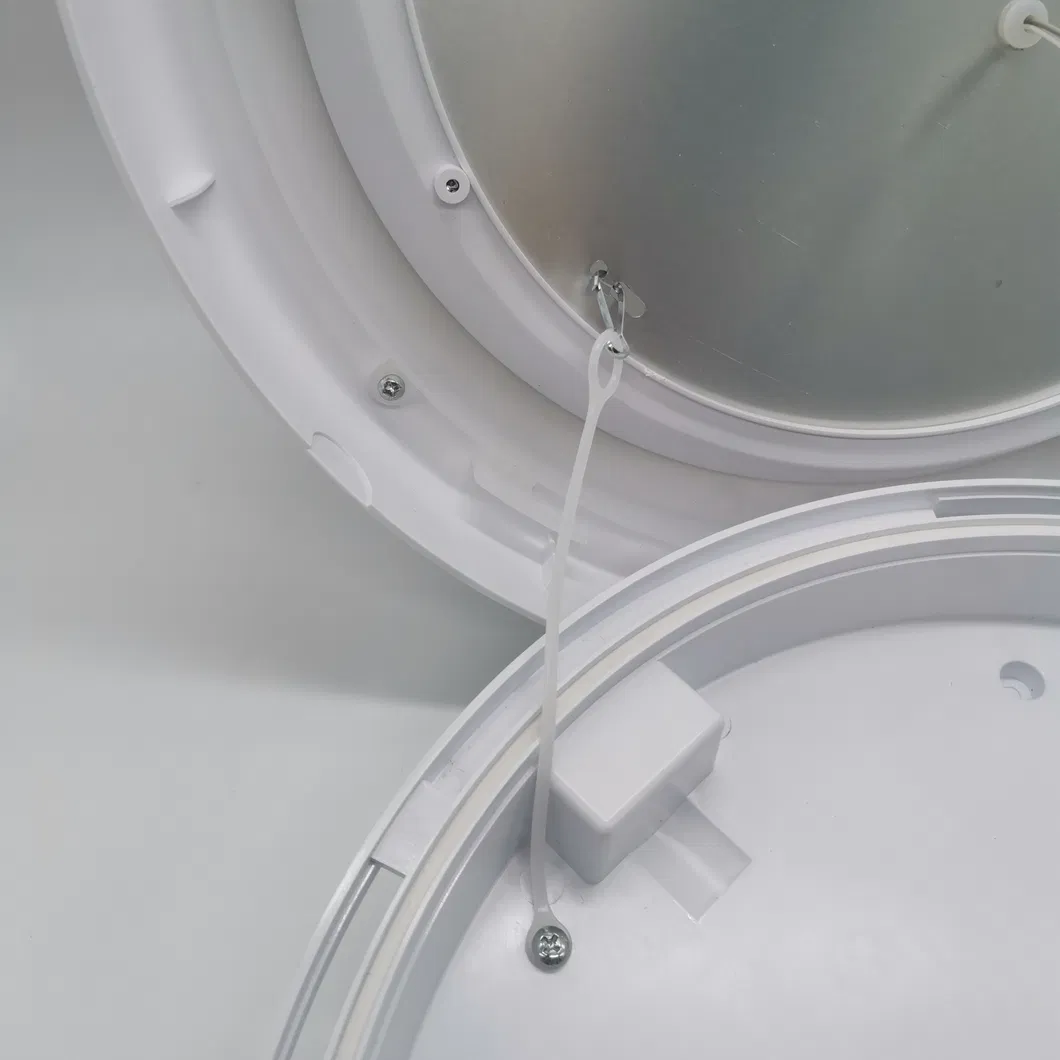

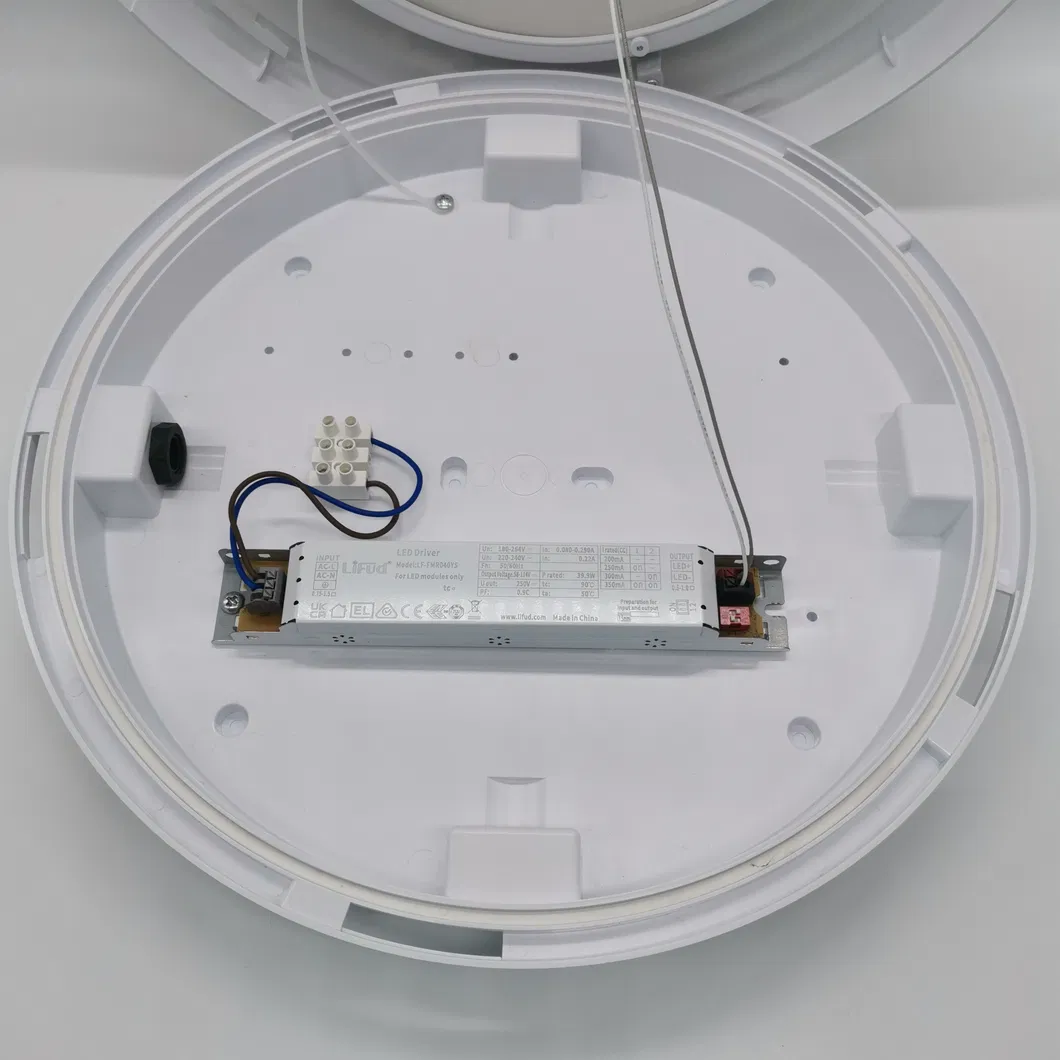

Details of Lighting

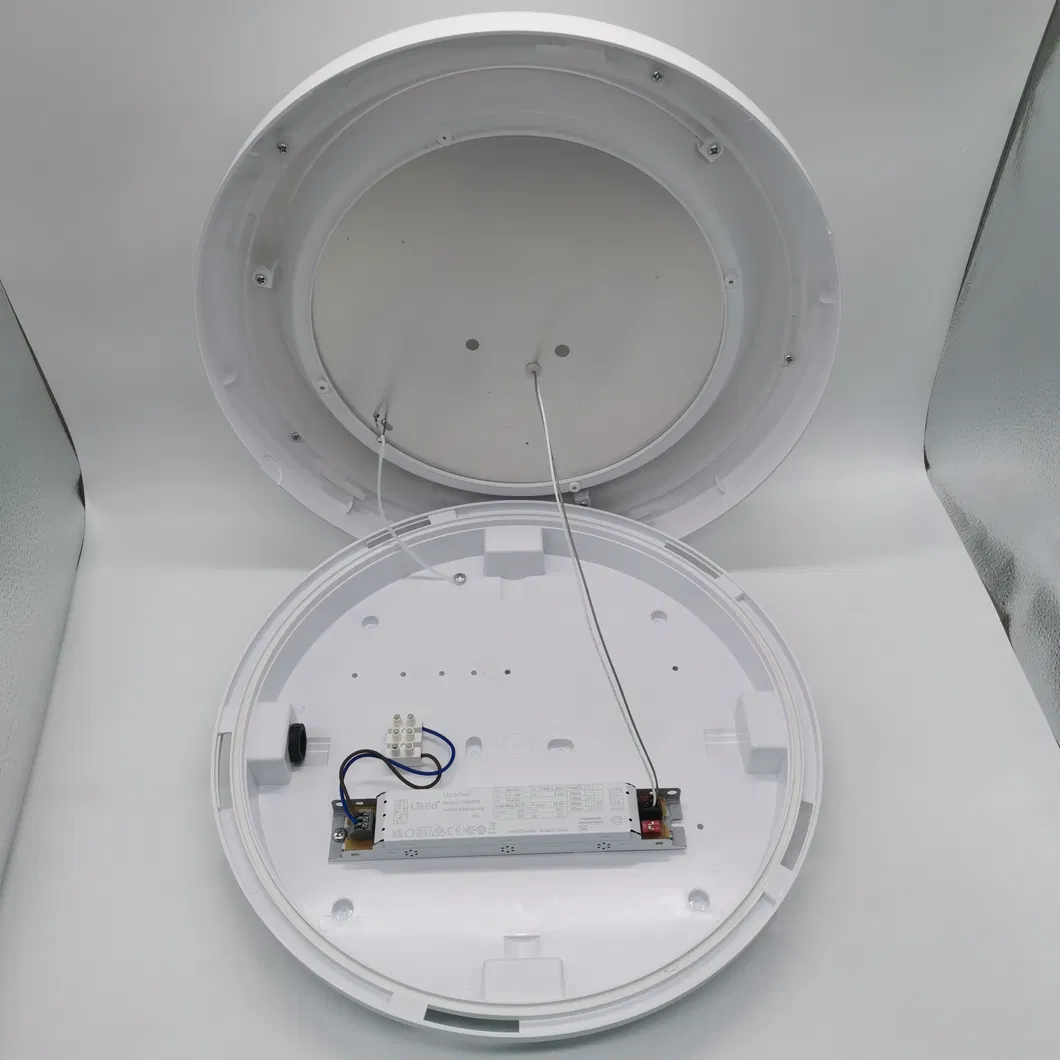

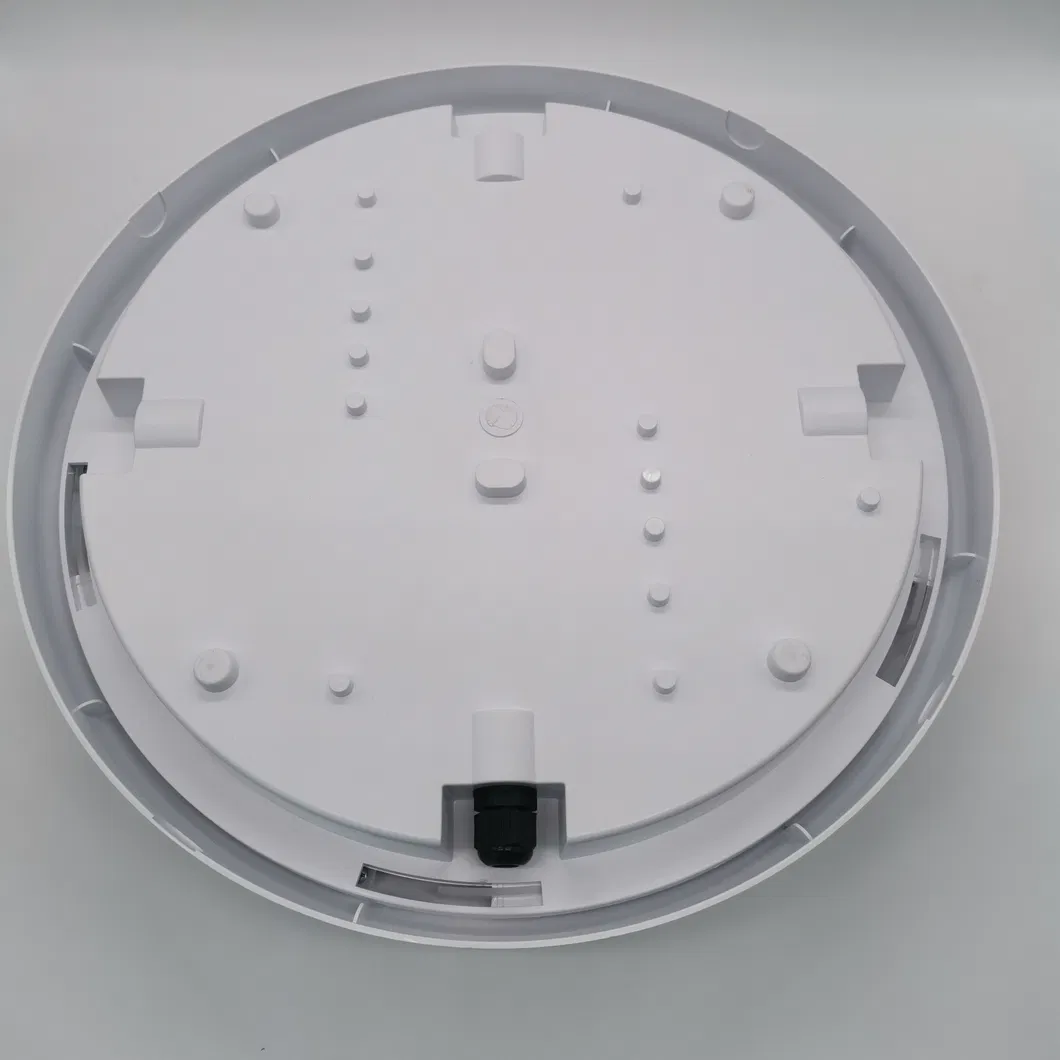

  • Lighting body: PC or ABS material body with high impact resistance, non-deformable structure suitable for environments with vibration.
  • Lighting cover: Opal PC diffuser providing soft and even light distribution.

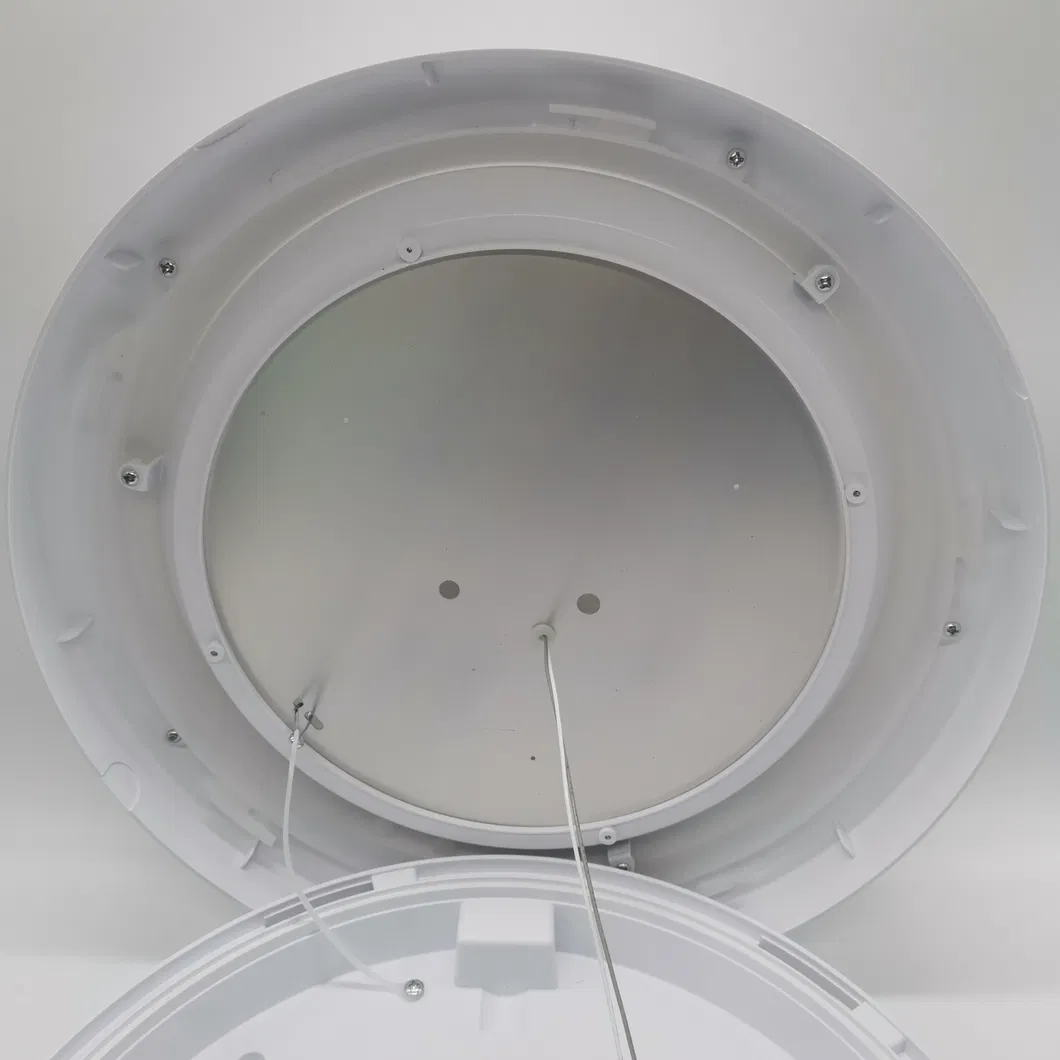

  • LED board: White aluminum base with 0.45mm thickness for optimal heat dissipation.
  • Applications: Suitable for indoor & outdoor areas with high IP requirements, food industry, chemical plants, heavy mining, environments with cutting oil & other aggressive substances, offshore oil industries, petrochemical sites, swimming pools, dusty, humid or corrosive environments, wash houses, breweries, under canopies, pharmaceutical factories, loading bays, garages, cellars, tunnels, ships, and parking lots.
  • Operating voltage: Input 220V ~ 240V, 50Hz ~ 60Hz. Output 12V-24V 50Hz ~ 60Hz.
  • Type of lamps: LED SMD2835.
  • Wattage: Available in 12W, 18W, and 24W options.
  • Operating temperature: -20°C ~ 45°C.
  • IP rating: IP66 certified with outstanding stability from its watertight gasket (waterproof, explosion-proof, dustproof).

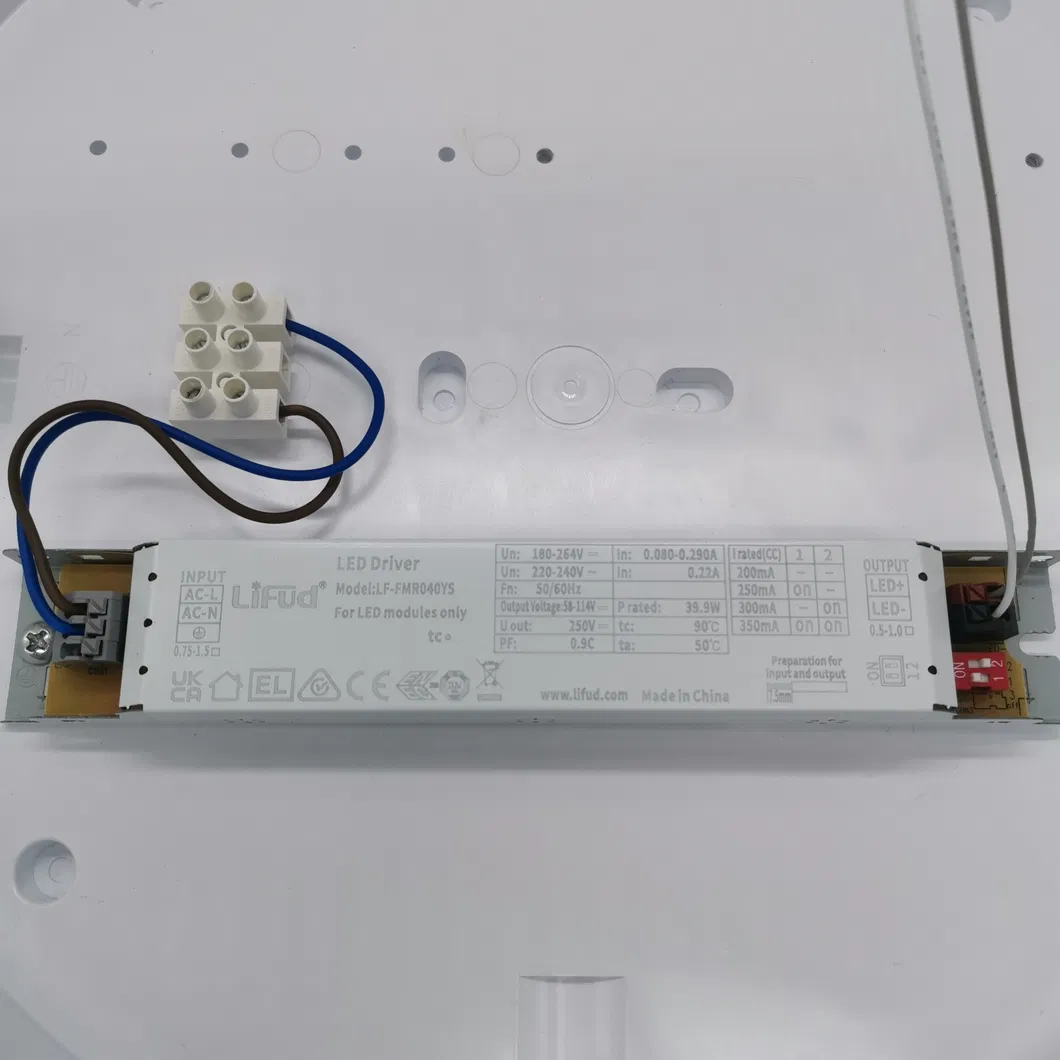

  • Electrical equipment: Equipped with high-quality LED driver and SMD2835 Chips.
  • Smart configurations: Available with 3CCT sensor and emergency kit built inside.
  • Certification: CE, CB, RoHS, SAA.
Power Specification
Item No. Power Lumens PF IP Grade Sensor IK 3CCT CRI Warranty Light Size
SLCLC-12 12W 1320LM >0.95 IP66 Microwave sensor IK10 3000K/4000K/5700K >80 3 years Φ260*108cm
SLCLC-18 18W 1980LM >0.95 IP66 Microwave sensor IK10 3000K/4000K/5700K >80 3 years Φ320*108cm
SLCLC-24 24W 2640LM >0.95 IP66 Microwave sensor IK10 3000K/4000K/5700K >80 3 years Φ360*108cm
Frequently Asked Questions
What does the IP66 and IK10 rating mean for this light?
IP66 indicates that the fixture is dust-tight and highly protected against strong jets of water from any direction. The IK10 rating signifies that it offers maximum protection against mechanical impact, making it vandal-proof and highly durable.
Can the light color be customized during installation?
Yes, this light features a Tri-CCT selectable driver. You can easily switch between Warm White (3000K), Cool White (4000K), and Daylight (5700K/6000K) to suit the desired mood or function of the space.
Are there motion sensor or emergency options?
Yes. The fixture supports a built-in microwave sensor for motion detection and can be configured with an emergency kit that provides up to 3 hours of continuous illumination during power failure.

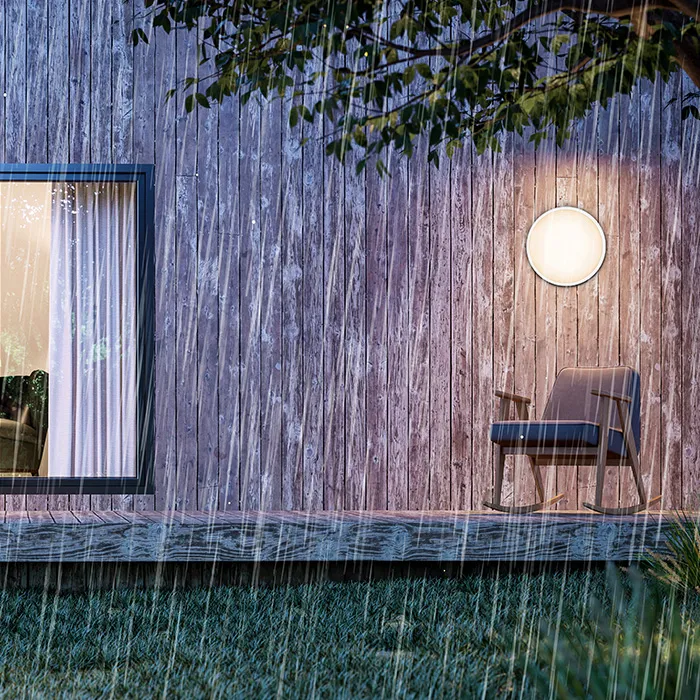

What kind of environments is this lighting suitable for?
Thanks to its high-quality polycarbonate body, watertight gasket, and corrosion resistance, it is perfect for gardens, garages, kitchens, warehouses, pharmaceutical factories, coastal areas, swimming pools, and other dusty or humid locations.
How energy-efficient are these LED fixtures?
These lights deliver an outstanding system efficiency of 100 lm/W using premium Epistar SMD2835 LEDs. They offer high lumen outputs (up to 2640LM) with low power consumption and a power factor of over 0.95.
What certifications does this product hold?
The product is fully certified under international standards, including CE, CB, RoHS, SAA, C-tick, ETL, and GS, ensuring global compliance and safety.
