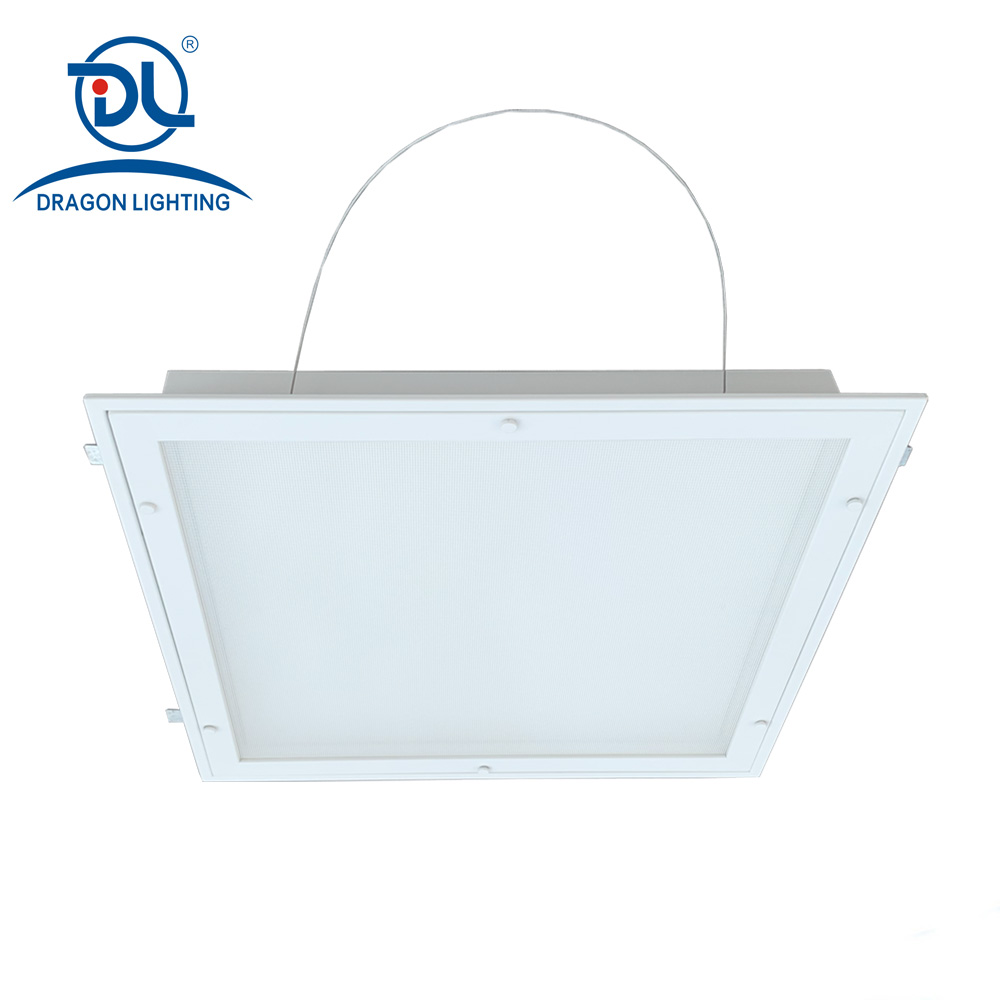

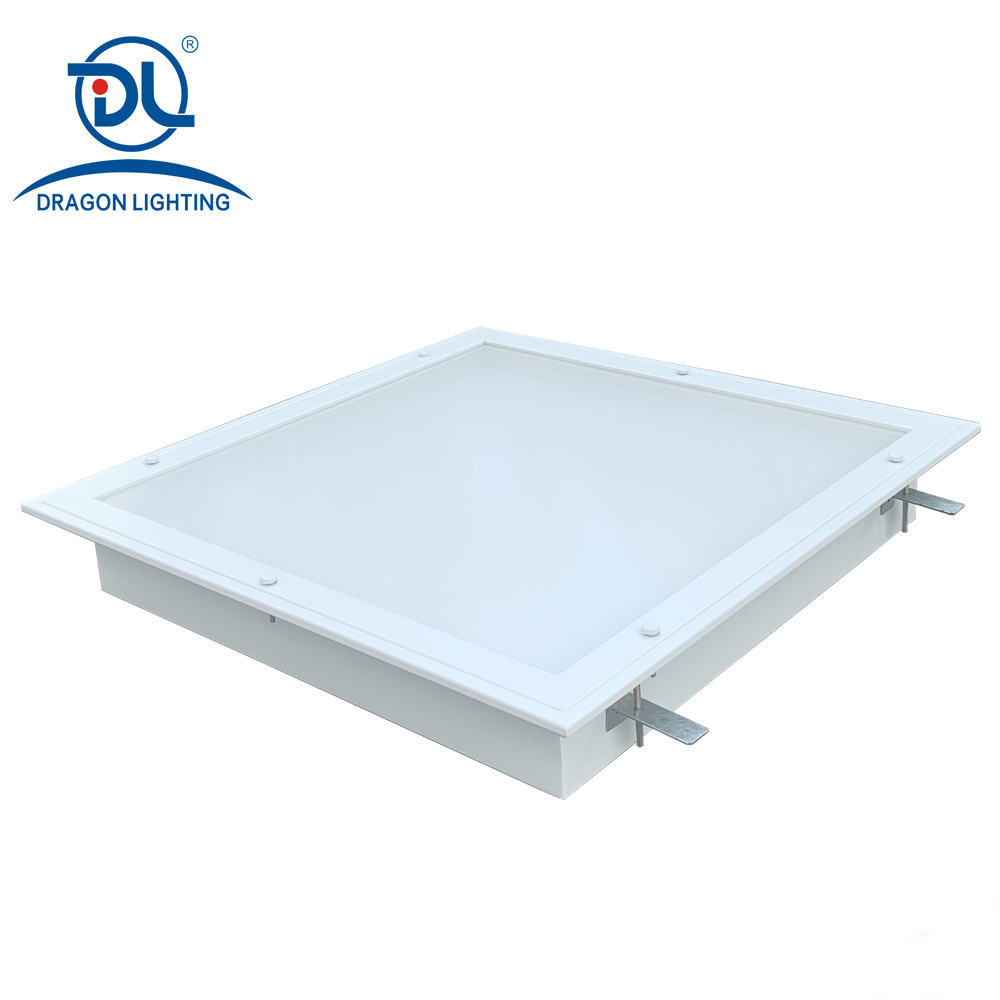

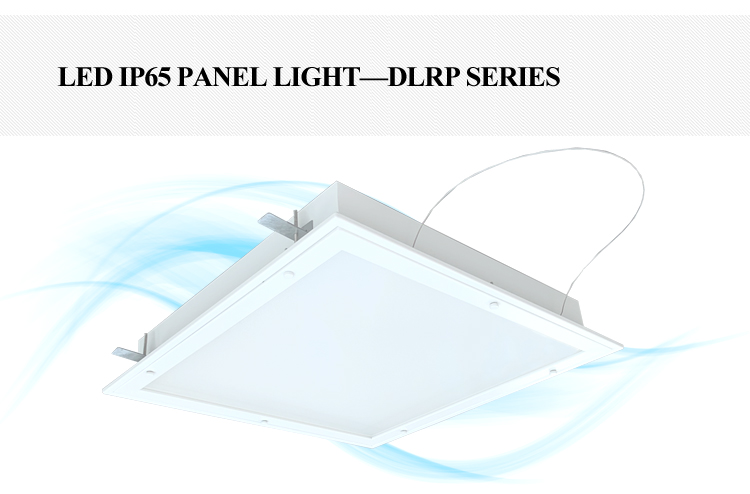

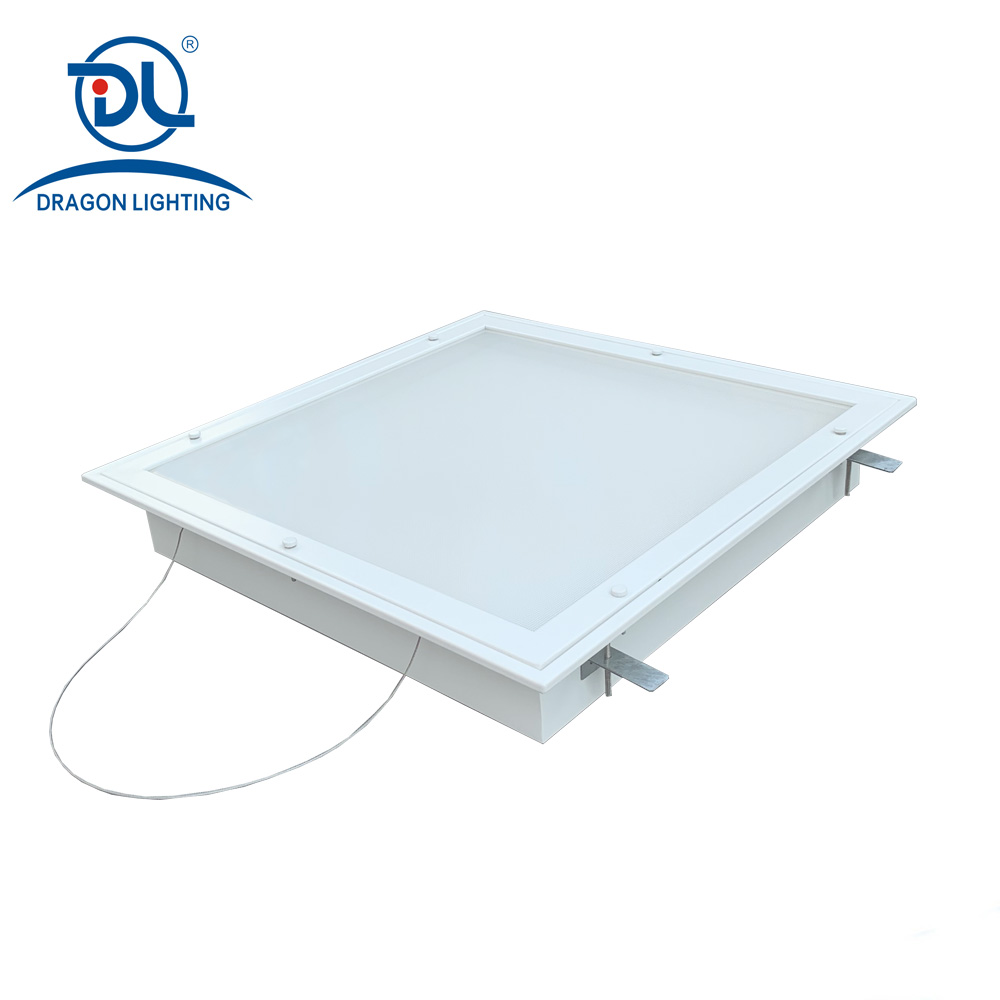

Light and frame is made of high quality iron, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white powder coating.
Prismer Diffuser for LED.
It uses LED SMD 2835.
Arcata or famous logo standard driver or dali/dimmable driver.

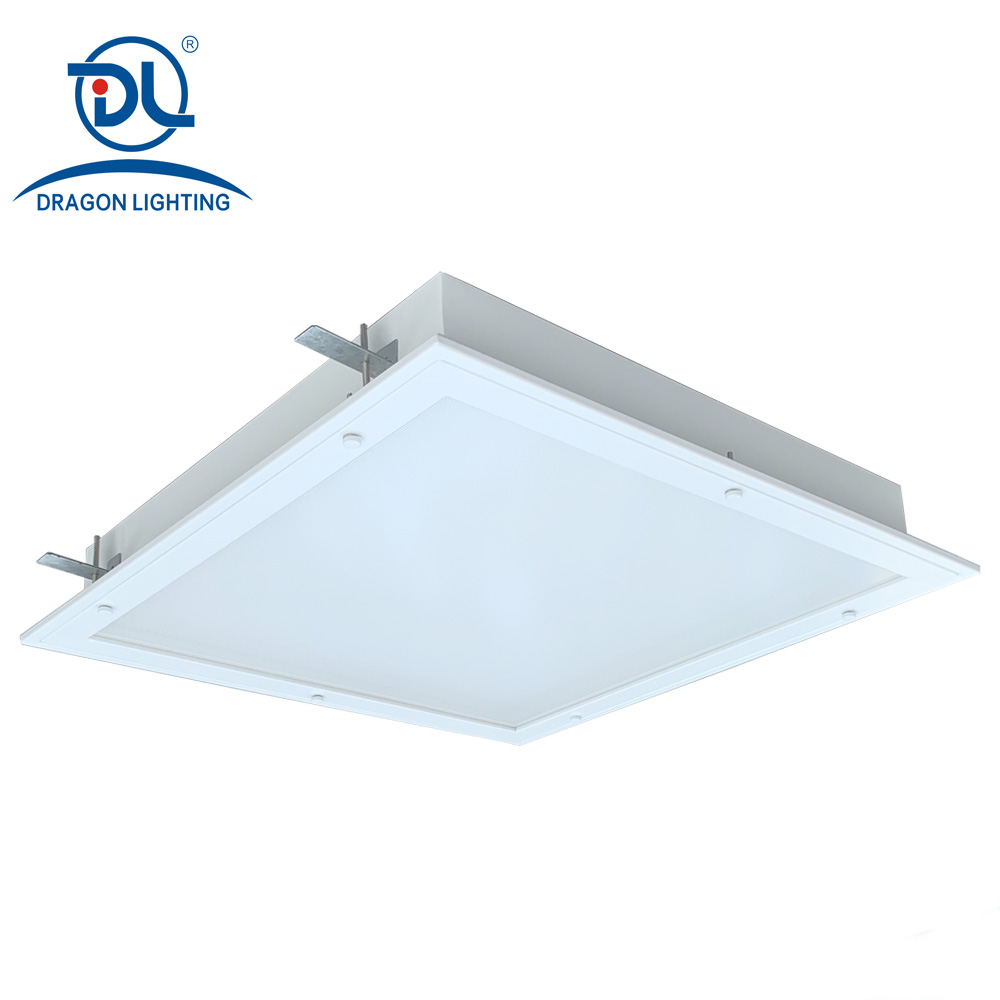

Recessed mounting.

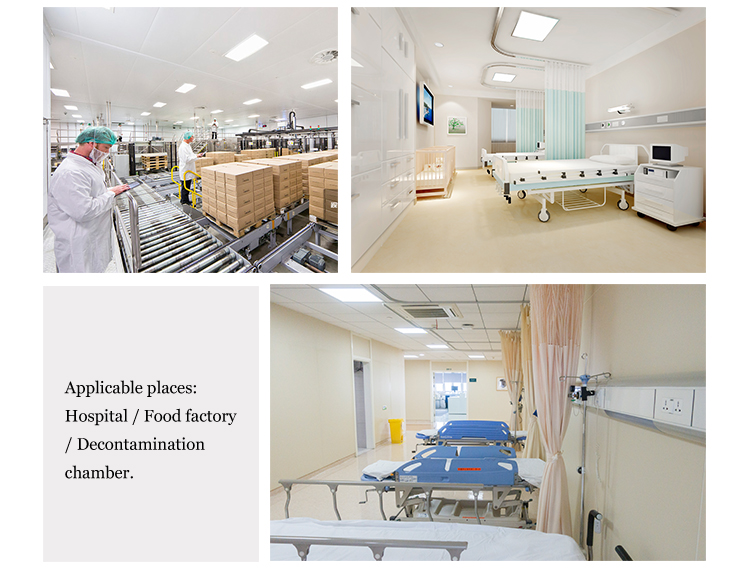

Hospital / food factory / decontamination chamber.
The light from the LED light is released through the diffuser directly, which isn't absorbed and reflected from other media. So the utilization of the light is relatively high, and the overall luminous efficiency of light is quite high. Energy saving, it saves 65% than the traditional lights at the same brightness.
The components of direct light panel is simpler than ordinary panel, it will save the guide-plate and overall cost will be more effective.
Direct light panel is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion and the height of the light fixtures to achieve the ideal blend of light. Because the light SMD is arranged in a matrix, the reasonable distance between the LED SMD and the PC diffuser ensures that the light doesn't have a dark zone, improving brightness uniformity when lit up.
Compared with the side light panel, it has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure its 50000hrs long lifespan.
| Model | Power (W) | LED Type | Luminous Flux (lm) | Efficiency (lm/w) | CRI | CCT |
|---|---|---|---|---|---|---|
| DLRP6060-40-IP65 | 40 | 2835 | 5000 | 115 | >80 | 3000K-6000K |
| DLRP1230-40-IP65 | 40 | 2835 | 5000 | 115 | >80 | 3000K-6000K |
| DLRP1260-60-IP65 | 60 | 2835 | 6900 | 115 | >80 | 3000K-6000K |
| Model | Dimension (L*W*H)(mm) | Packing Size (mm) | Qty/ctn |
|---|---|---|---|
| DLRP6060-40-IP65 | 605*605*100 | 615*615*210 | 2 |
| DLRP1230-40-IP65 | 1205*305*100 | 1215*315*210 | 2 |
| DLRP1260-60-IP65 | 1205*605*100 | 1215*615*110 | 1 |
Built with 0.6-1.0mm steel and a prism diffuser. UGR can be lower than 19 while providing robust water and dust resistance.

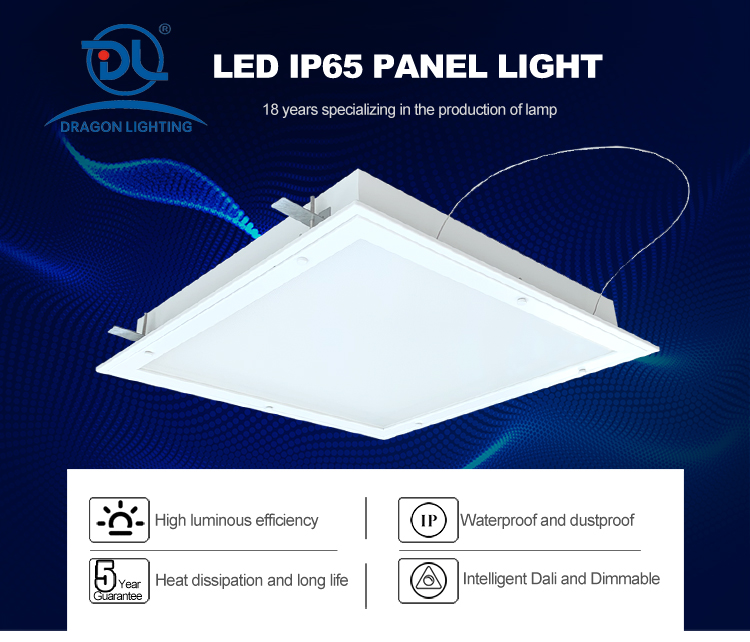

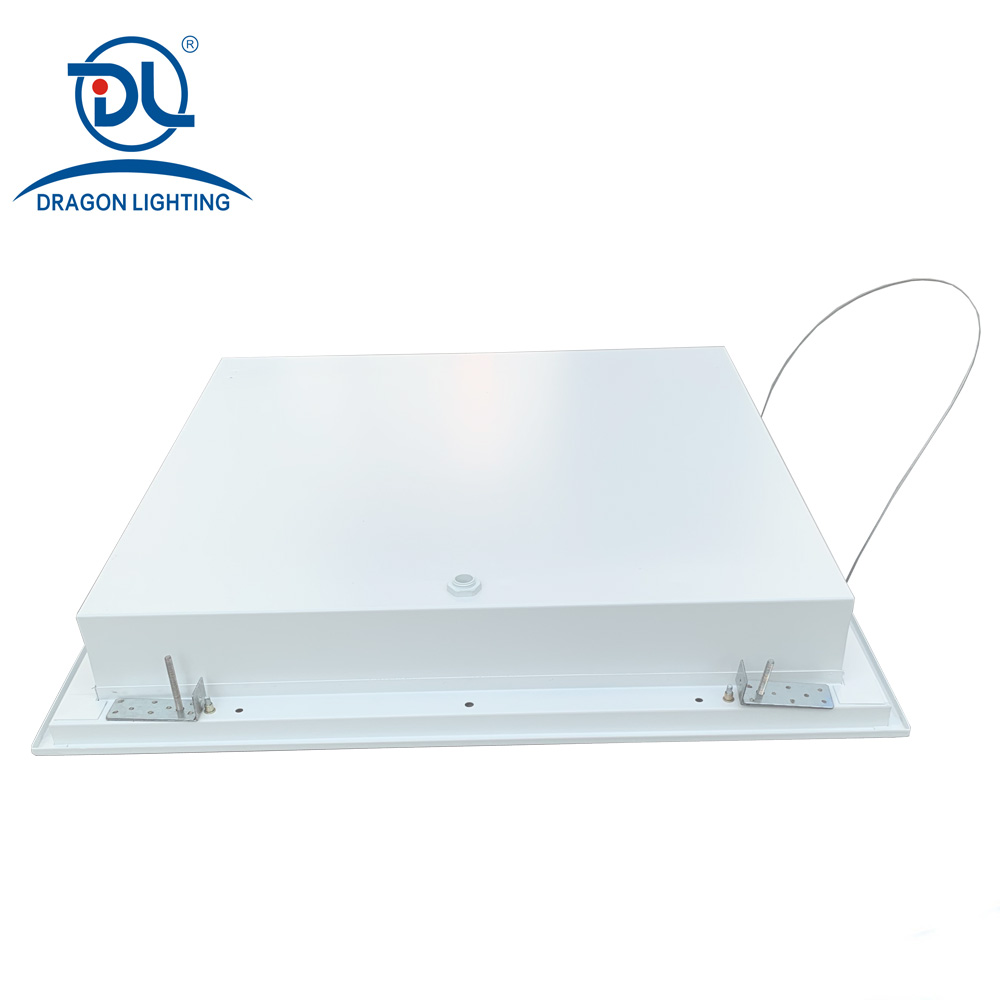

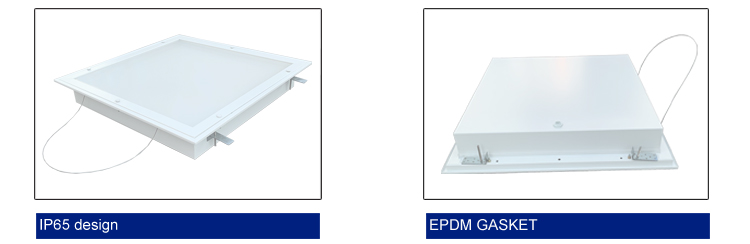

Overall design rated for IP65. The steel plate undergoes a powder coating process with adequate internal space designed to address heat dissipation. Equipped with earthquake-proof design and EPDM seal.

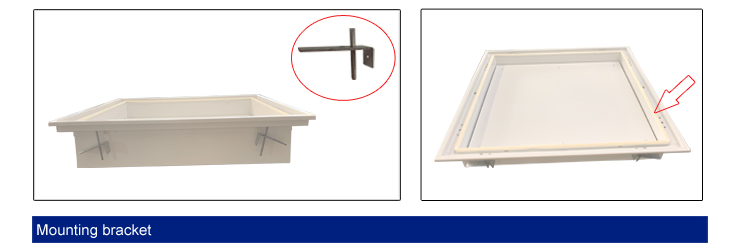

Adjustable screw designs make it suitable to fit various ceiling heights.
